Description

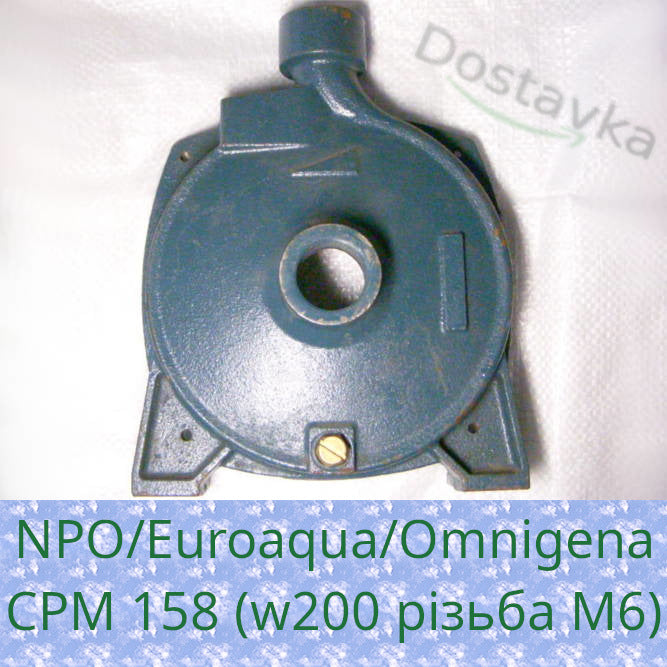

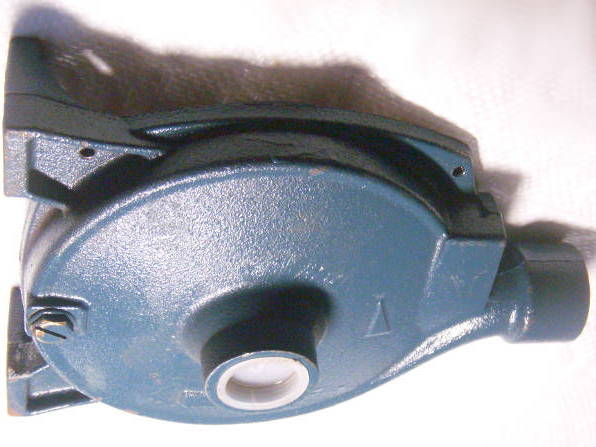

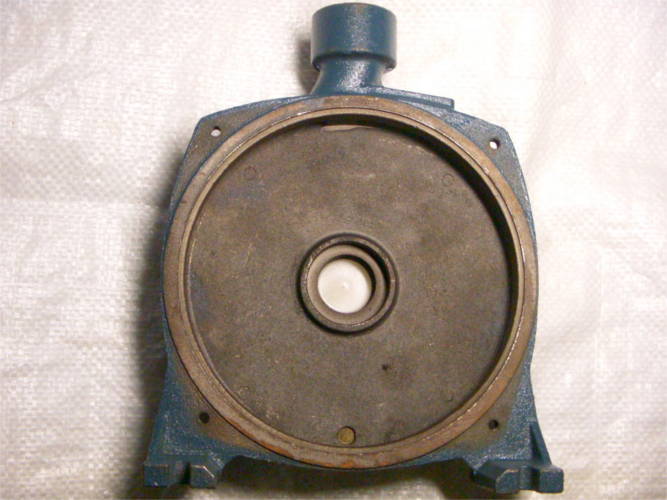

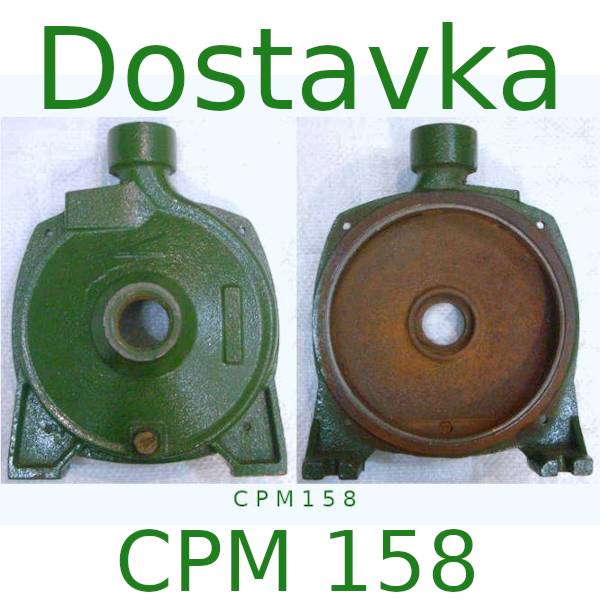

Cast iron front cover (pump chamber body) for Master Craft CPM 158 surface centrifugal pump, Rudes, Pumps+ CPm158 (cast iron) (A10), Kenle CPM-158, Petcosco, Euroaqua/Delta CPM 158
Inner diameter 164 (bottom step)
Inner diameter 172 (upper step) mm
Between bolts diagonally ~195
The distance between the centers of the mounting holes is 200 mm.
Bearing mounting location 42 mm
Bolt thread 6 mm

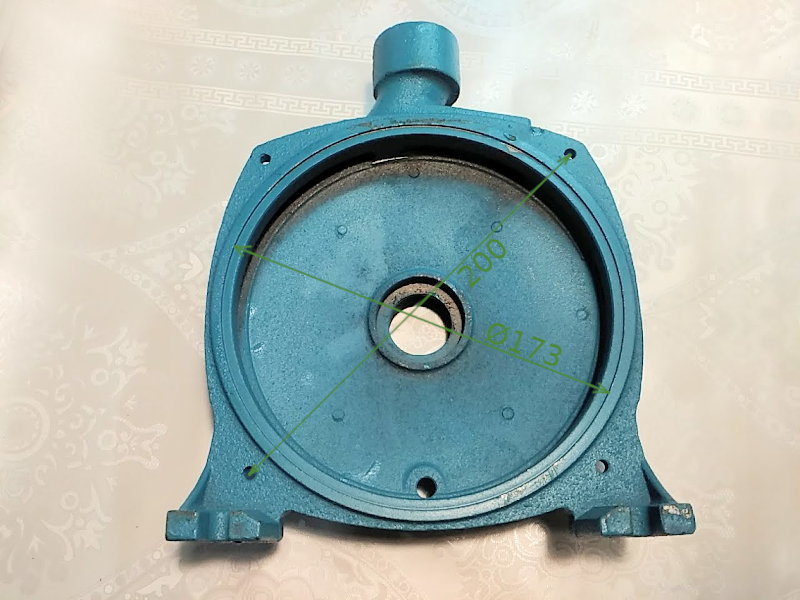

Critical measurements for verification are shown on the drawing.
