Description
Screw pair in a metal housing for Euroaqua 2QGD1-50-0.28 (Unipump ECO VINT 0) pump

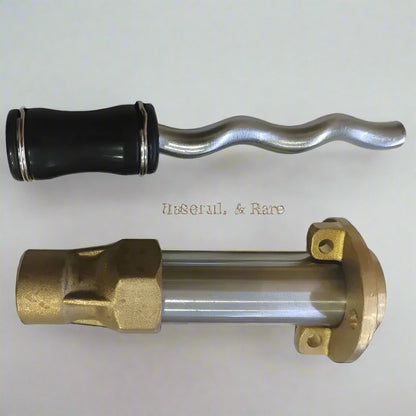

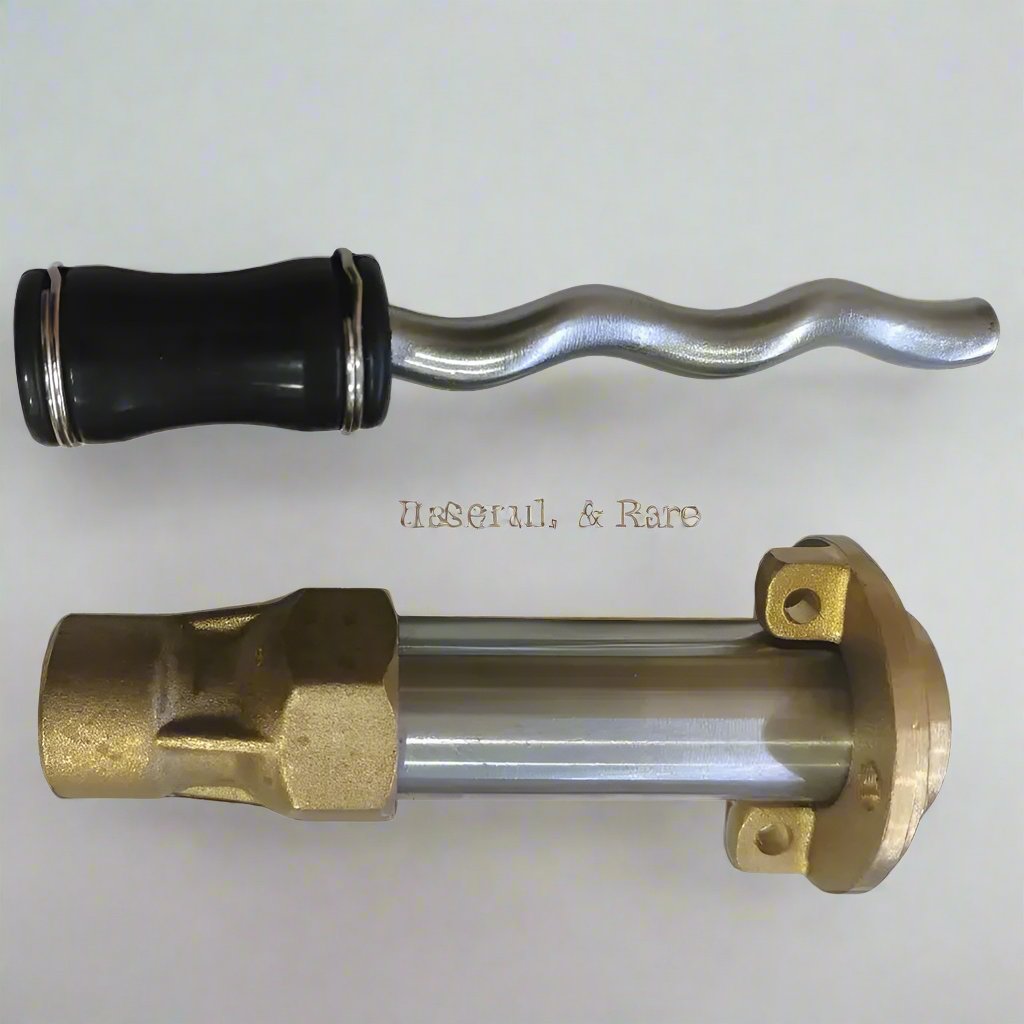

Reinforced design repair screw pair (polished steel worm + stator in a stainless steel sleeve with a brass discharge port) is designed for the overhaul of compact two-inch (2" / ∅50–55 mm) submersible borehole screw pumps with a power of 0.28–0.37 kW. The unit is fully ready for installation: the rubber sleeve is pressed into a protective steel casing with a cast brass head, and the screw rotor is connected to a damping rubber-metal coupling, which guarantees precise coaxial alignment, restoration of the factory operating head, and long-term protection against hydro-abrasive wear.
Main advantages and features:
- Reinforced stainless steel stator housing: The rubber working sleeve is rigidly crimped into a stainless steel sleeve, which eliminates its expansion and deformation under high hydraulic pressure.
- Brass connecting heads: The upper part with a thread for connecting a check valve or discharge pipe and the lower mounting flange are made of solid plumbing brass, resistant to leaching and corrosion.
- Wear-resistant chrome-plated screw: The surface of the steel spiral rotor has been polished and given a protective galvanic coating, minimizing friction against the rubber matrix and reducing motor starting currents.
- Standard M10 right-hand thread: The screw coupling is screwed on clockwise, which corresponds to the drive kinematics of small-sized 2QGD series pumps.
- Anti-vibration coupling with a band: The elastic transition part with steel locking rings gently dampens the radial runout of the screw when pumping liquid.
Compatibility and application:
Used for narrow two-inch (diameter from 50 to 65 mm) borehole and well screw pumps:
- Euroaqua: 2QGD1-50-0.28, 2QGD 0.28 kW, 2QGD 0.37 kW.
- Unipump: ECO VINT 0, ECO VINT 1 (early series).
- OmhiAqua: 2QGD 0.28–0.37 kW.

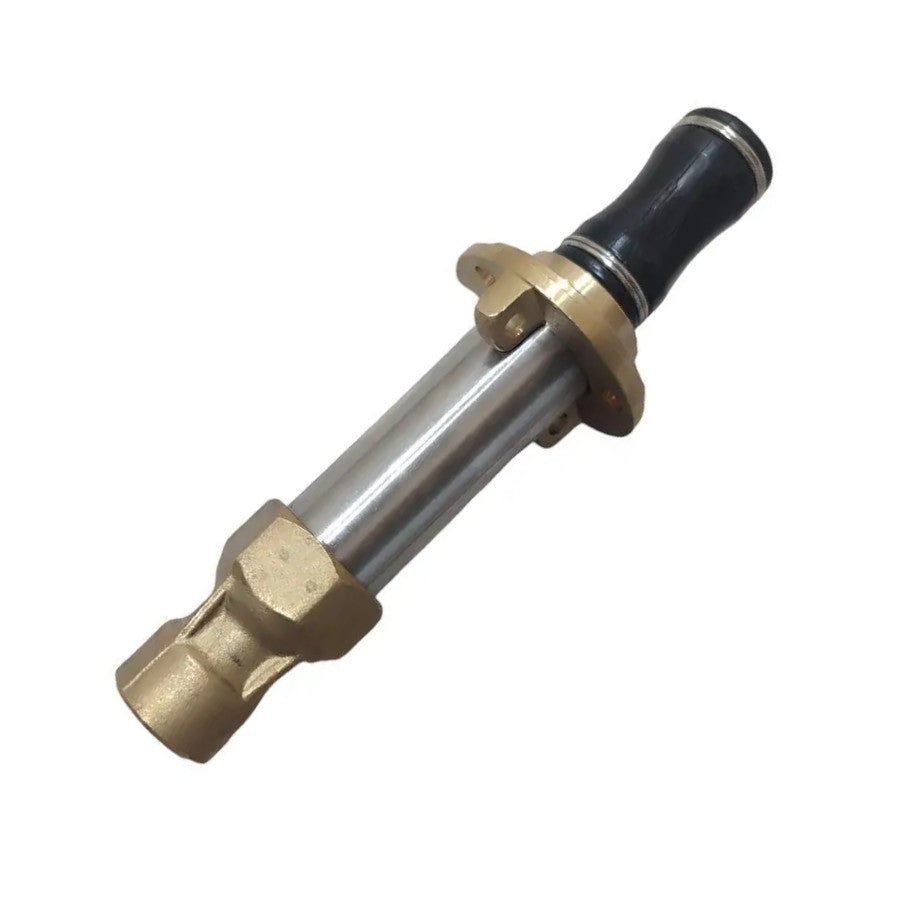

- Other manufacturers: Rona, Sprut, Foras, Taifu, Kenle, Needle and similar ultra-compact submersible screw pumps with a stator outer sleeve diameter of 40 mm and an M10 right-hand shaft thread.
Technical characteristics:
| Parameter | Value / Characteristic |
|---|---|
| Part type | Screw pair assembly (rotor + encapsulated stator) |
| Pump diameter | 2 inches (2" / ∅50–55 mm) |
| Rated motor power | 0.28 – 0.37 kW |

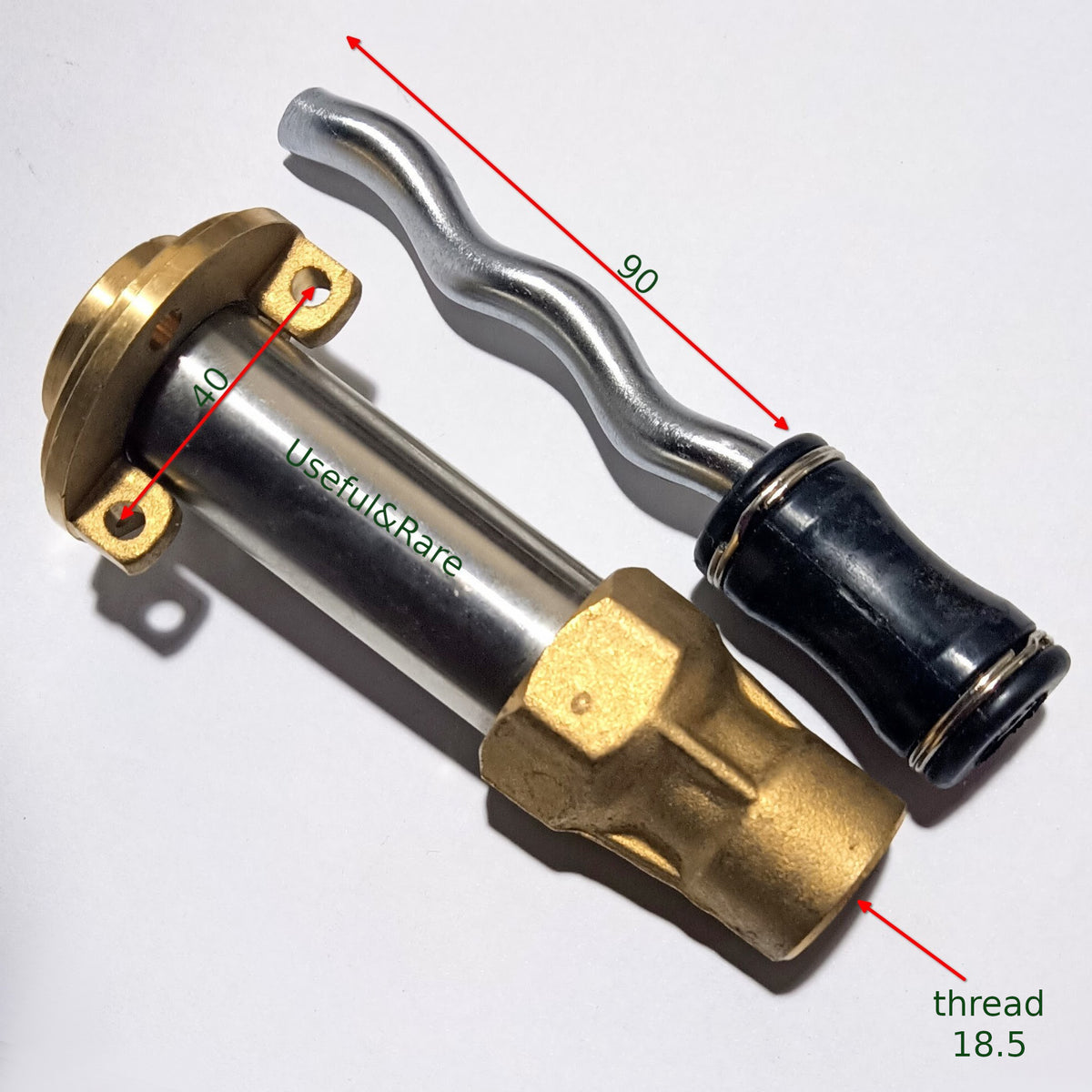

| Total stator length with port | 165 mm |
| Worm (rotor) working part length | 90 mm |
| Outer diameter of the stator metal barrel | 40 mm |
| Internal thread of the outlet port | 18.5 – 19.0 mm (G 1/2" internal pipe thread) |
| Rotor coupling thread to motor shaft | M10, right-hand thread (Right Hand Thread) |
| Stator material | Stainless steel, plumbing brass, NBR rubber |
| Rotor material | Alloy steel with protective chrome plating |
| Condition |
