Description

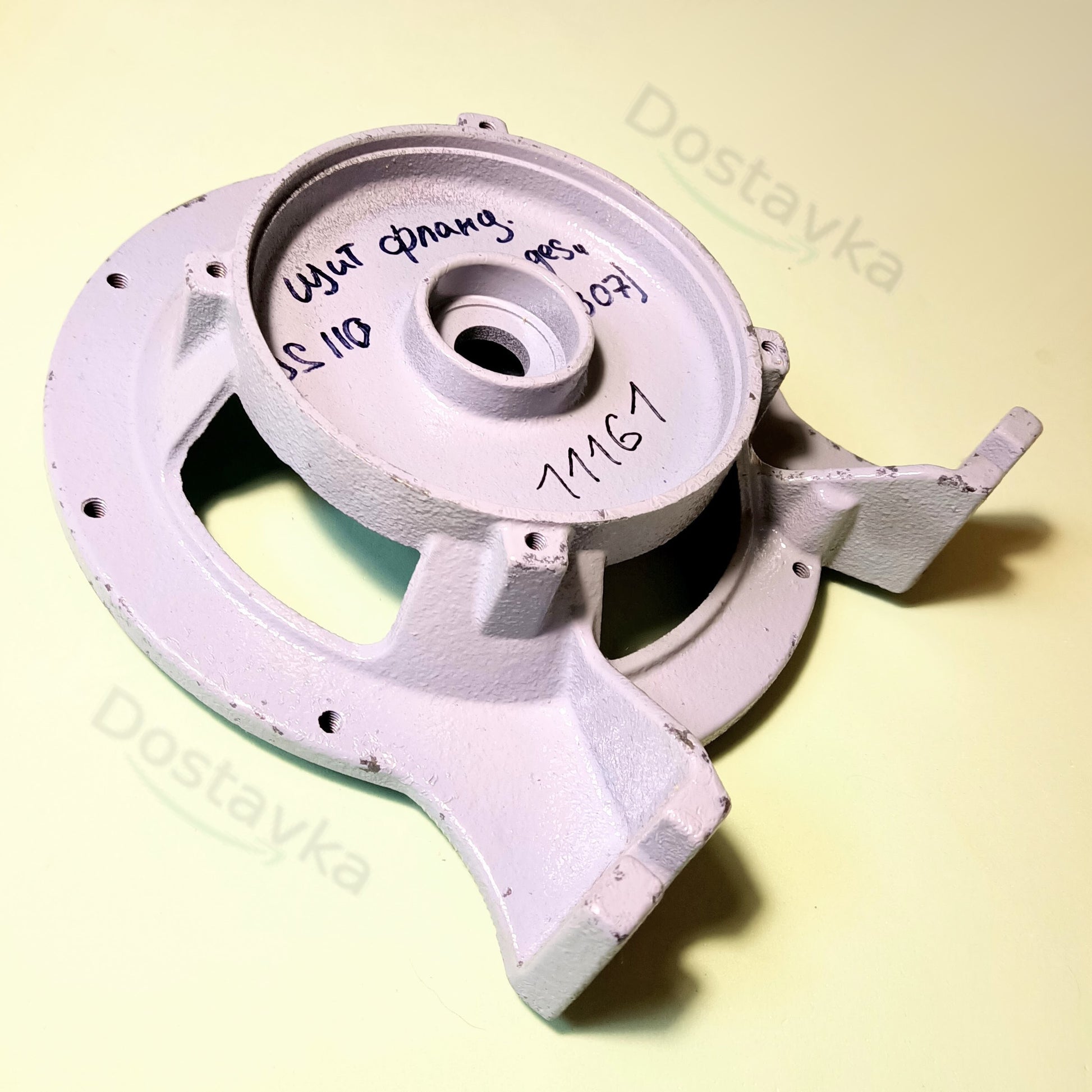

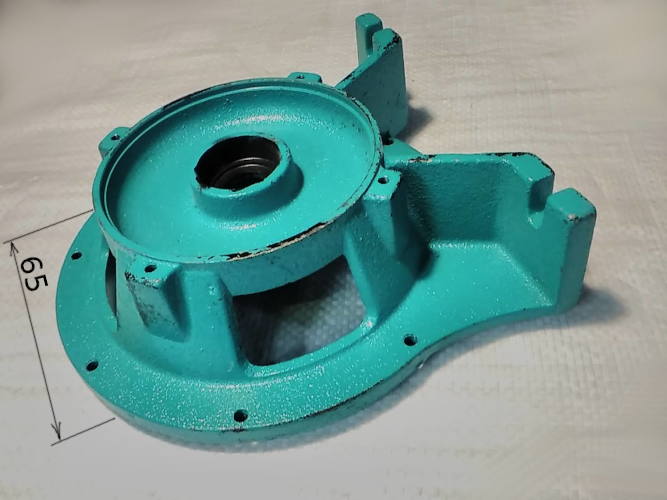

The central semicircular cast iron support for the Euroaqua JV1000 pumping station (stainless steel cover) with legs, the diagonal distance between the screws to the motor is 124 mm, and the distance between adjacent screws is 86 mm. The diameter of the connecting protrusion to the pump section is 162 mm. See the drawings for the main dimensions.
Installation dimensions:
- Between the mounting holes diagonally to the pump chamber 182 mm
- Between the mounting holes diagonally to the engine 127 mm
- Between adjacent mounting holes to the engine 90 mm
- Bearing seat 35mm
