Euroaqua NPO Jet100 Water Pump Flange Support (4 Bolts)

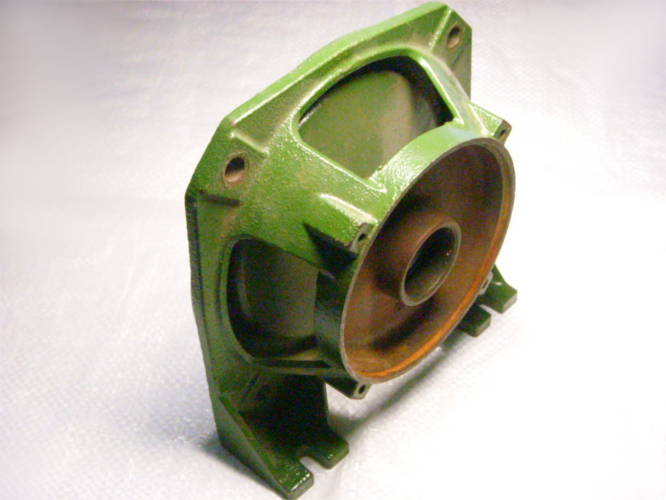

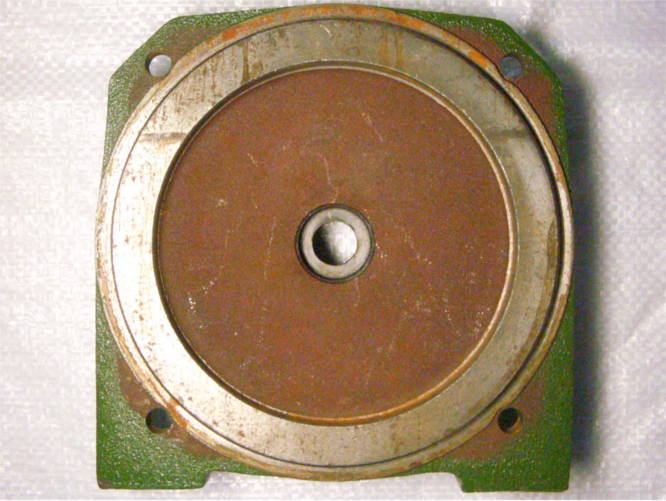

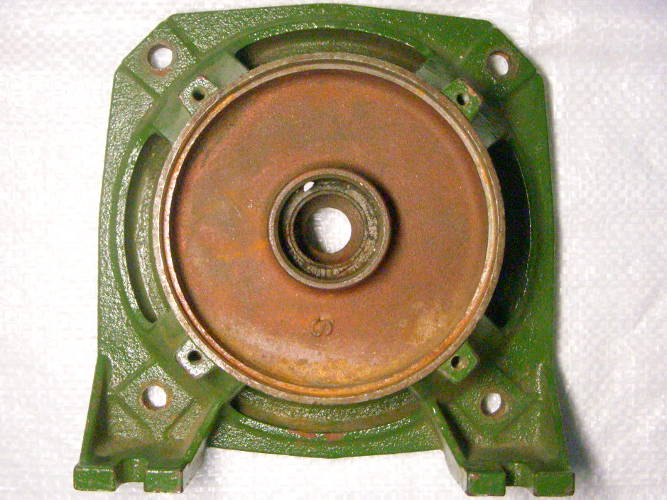

Central cast iron flange shield (support) with legs, for self-priming surface pump or water pressure station NOCCHI JET 1000M, Nasosy+ NPO series (B03/001): JET100; JET110, EUROAQUA JET 100, JET100A, Zenit, Marina CAM40, Werk XKJ-801, XKJ-1101, XKJ-1301 IA5, Euroaqua UNIPUMP AUTO JET 80S, OceanJet80/Jet100,

Installation dimensions

• seat for stationary mechanical seal ring 26-28-30 mm,
• bearing seat 35 mm,
• height from the bearing seat 50 mm,
• total support height above the table surface 64 mm,
• Center-to-center distance between mounting holes ~190 mm on the pump chamber side
• Center-to-center distance between fasteners on the motor side ~128 mm diagonally.
• Internal cavity for the impeller with a diameter of 130-132 mm

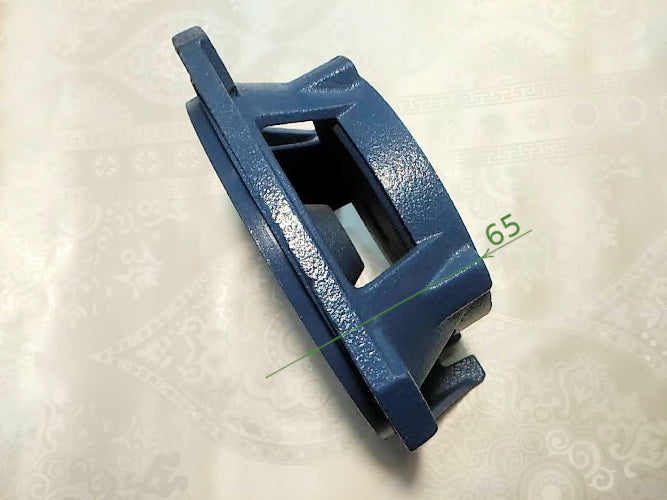

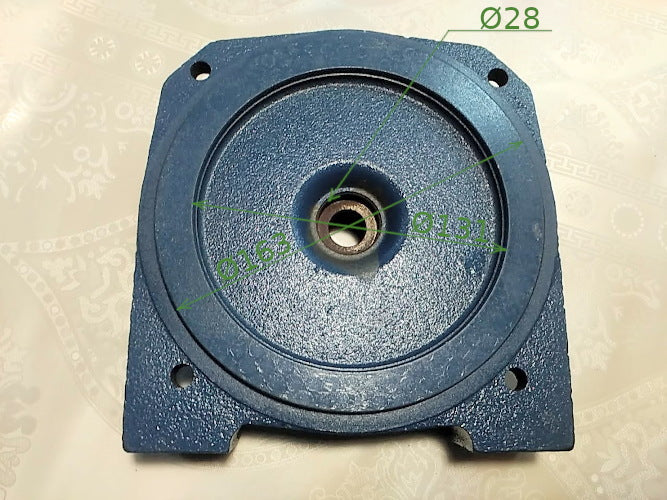

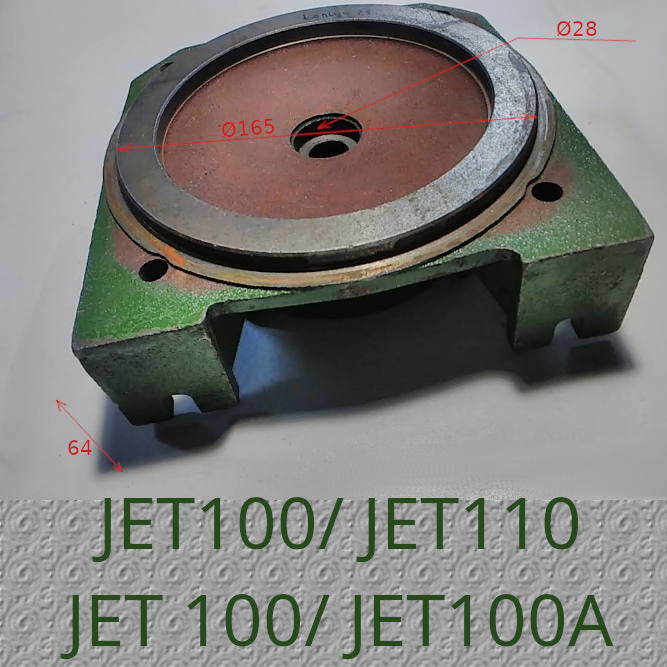

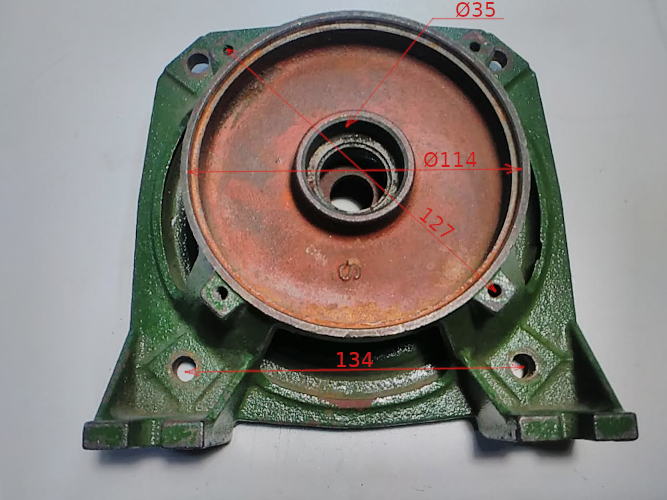

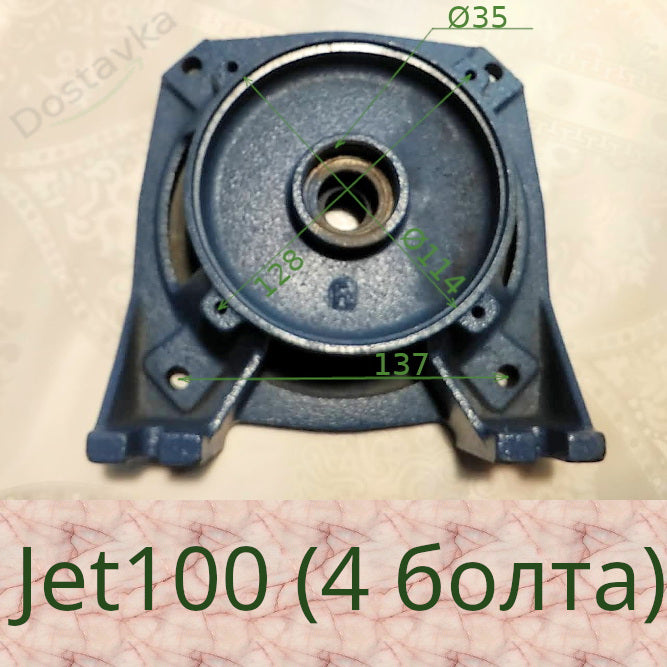

See the drawings for critical measurements for verification
