Description

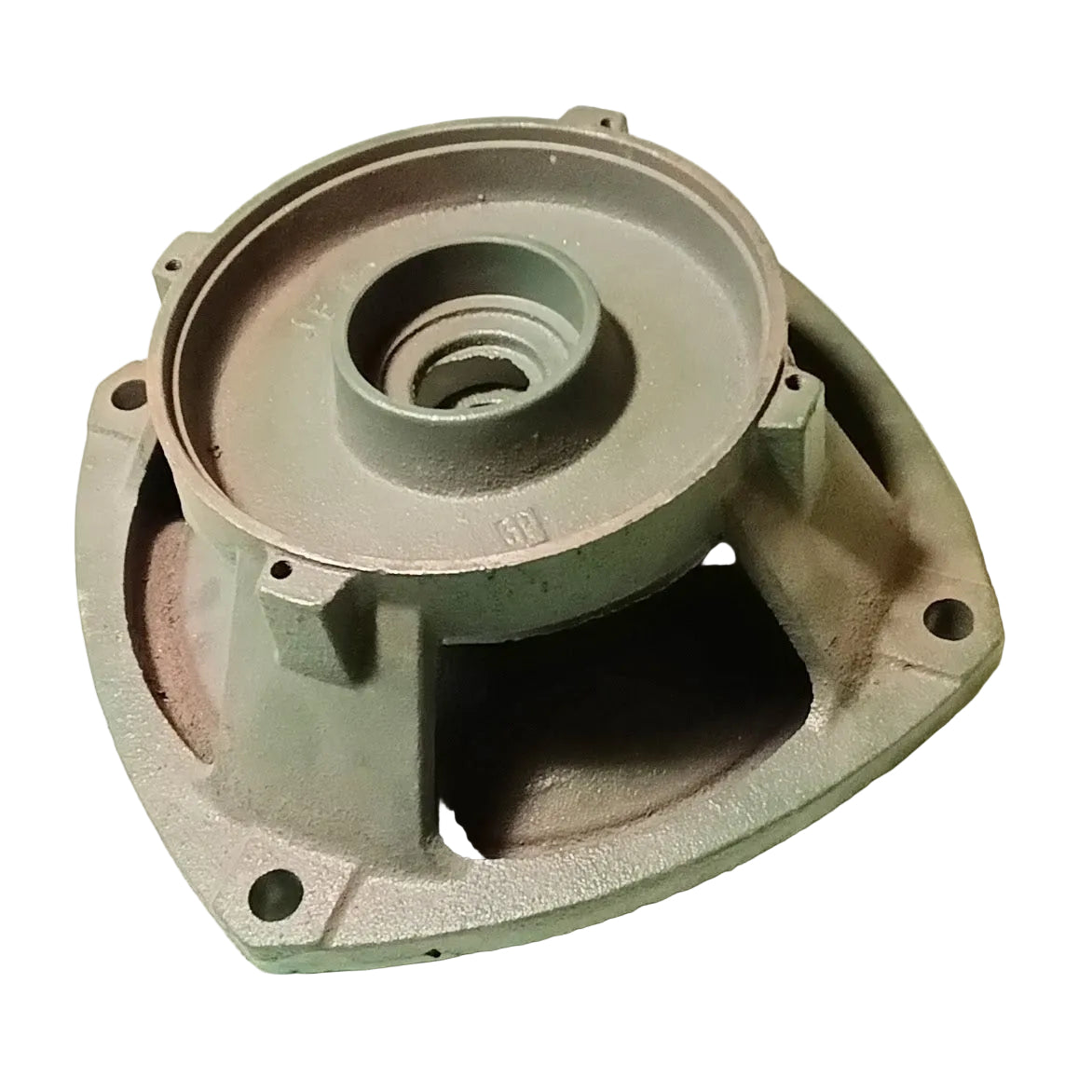

Central cast iron pump bracket for Optima, Euroaqua JET200 (M), motor mounted with 4 bolts, total height 90, bearing seat 52, distance between motor holes 145 mm, distance between mounting holes on the pump chamber side approx. 225 mm
Installation parameters
- Bearing seat 50 mm
- Center-to-center distance to the pump chamber 227 mm (diagonal)
- Inner diameter of the working chamber 164 mm (inside the flat ring)
- Outer diameter of the connecting flat ring 199 mm
- Center-to-center distance to the motor 146 mm (diagonal)
- Total flange height (thickness) *87 mm
