EVCO EV3X21N7 Digital Temperature Controller for Refrigeration Equipment
The EVCO EV3X21N7 electronic parametric temperature controller (EV3 series) is designed for temperature control in medium-temperature commercial refrigeration equipment with static cooling (refrigerated cabinets, display cases, chest freezers, cold rooms). A distinctive feature of this model is its reduced housing depth, which facilitates installation in confined spaces.
Main Functions and Features:
- Cooling and passive defrost control: Controls compressor operation and performs defrosting by stopping the compressor (based on time intervals).
- 16A compressor power relay: The built-in relay allows for the direct connection of low and medium-power single-phase compressors without the need for an intermediate contactor.
- Compact housing: The controller is designed for a standard mounting cutout and is secured using plastic mounting clips (included).
Terminal Wiring Diagram (according to the housing markings):
- Terminals 1, 2, 3 (Analog input): Connection for an NTC temperature sensor and/or digital input (according to the diagram: terminal 1 — common, terminal 2 — CAB/NTC sensor, terminal 3 — DI digital input).
- Terminals 6, 7 (Power input): Supply of mains voltage L (phase) and N (neutral) 230VAC.
- Terminals 8, 9, 10 (Relay output K1 - COMP): Changeover contact of the compressor power relay (16A 250V~, maximum switching current 10A).
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Brand / Manufacturer | EVCO (Italy) / Made in EU |
| Model (Product Code) | EV3X21N7 |
| Batch Identifier (ID) | 2257-2336-22 |
| Supply Voltage | 230VAC (50/60 Hz) |
| Measurement Sensor Type | NTC (MEASURE INPUT: NTC) |
| Compressor Relay Specifications (K1) | 16A 250V~ (Max 10A / COMP) |
| Ambient Temperature (Ta) | 0°C ... +55°C (32°F ... 131°F) |
| Certification | EAC, cURus, UKCA, CE |

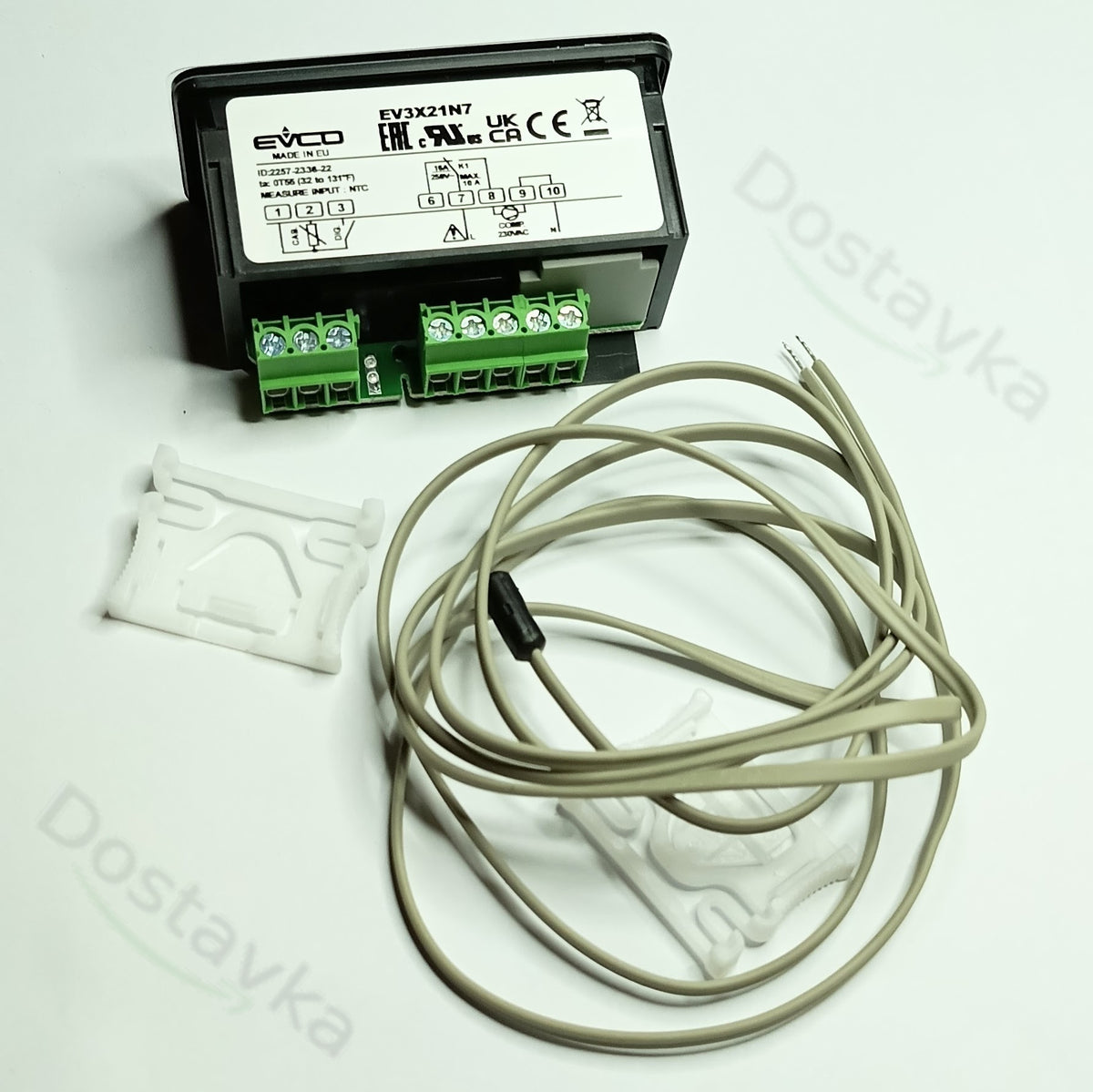

Package Contents:
- EVCO EV3X21N7 electronic controller — 1 pc.
- NTC temperature sensor in a teardrop polymer shell — 1 pc.
- Plastic side clips for panel mounting — 2 pcs.
Note on Inaccuracies and Ambiguous Data:
-
Maximum load for relay K1: The factory label indicates a nominal relay contact rating of
16A 250V~; however, a clarifyingMAX 10Alabel is also present. For long-term reliability, connect compressors with a current consumption of no more than 10A directly. For higher loads, use a contactor. -
Terminal 3 Purpose: In the diagram, terminal 3 is labeled as
DI/q(Digital Input or a second sensor depending on configuration). However, the sensor input is factory-printed only as NTC, so the use of terminal 3 depends entirely on the software configuration parameter in the menu.
