Description

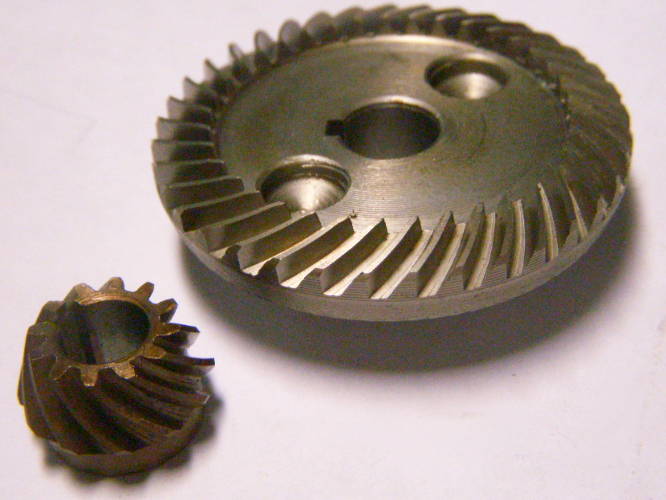

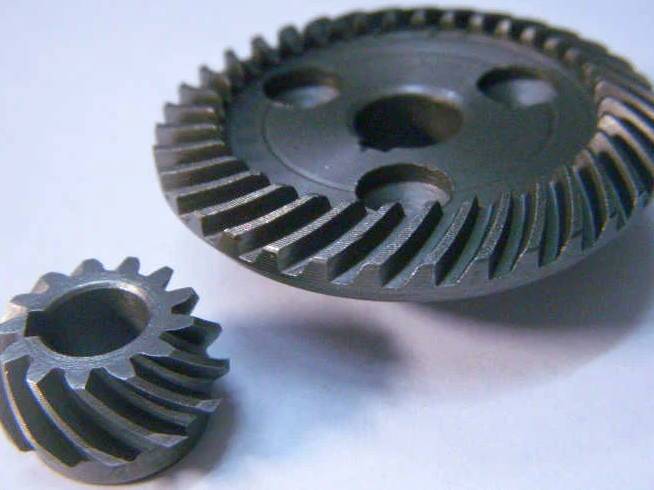

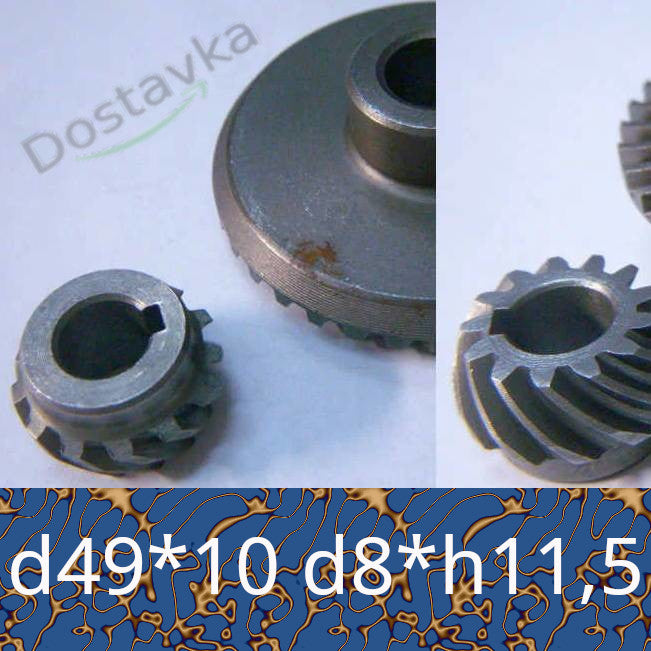

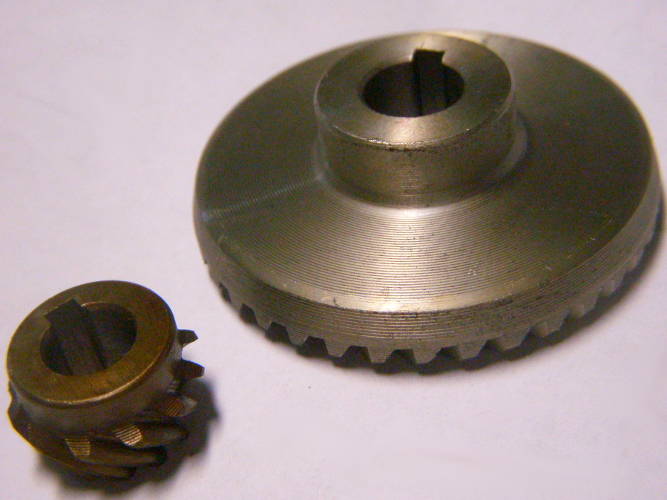

Bevel gear pair d49*10 and h11.5*d8 for 125th angle grinder FERM FAG 125N (880W), Start 125/1200, Ural 125-850, Rostec 125, Interskol 125-1100 E, Craft 125/1200 kW, Taiga 1050/125 with small gear height h11.5 mm, both gears are fixed with a key.

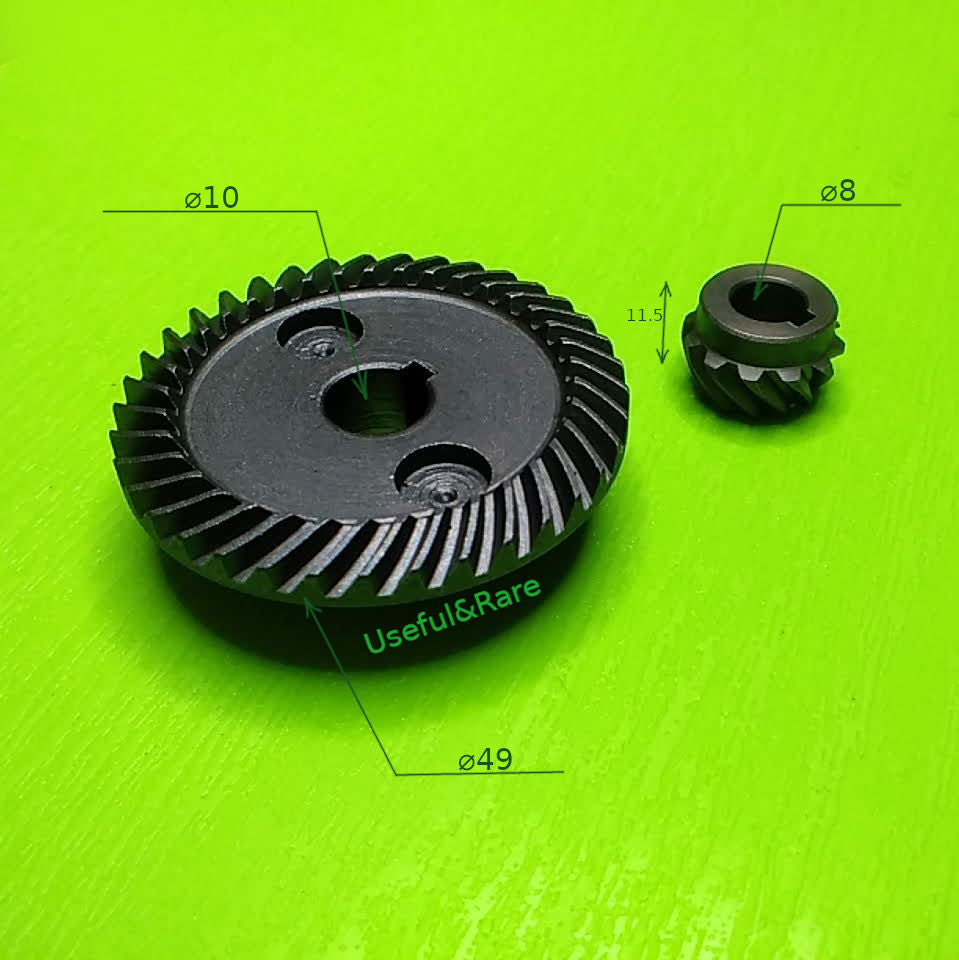

The size of the larger one is 48 (outer) * 10 (inner) mm, the height of the small one is 11.5 mm, the fit is 8 mm, both are under the key, for the angle grinder
| Internal diameter large gear D1, mm |
10 |
| External diameter large gear D2, mm |
49 |
| Internal diameter small gear d1, mm |
8 |
| Height of small gear h, mm |
10 |
| Type of small gear |
without skirt for keyway |
