Description

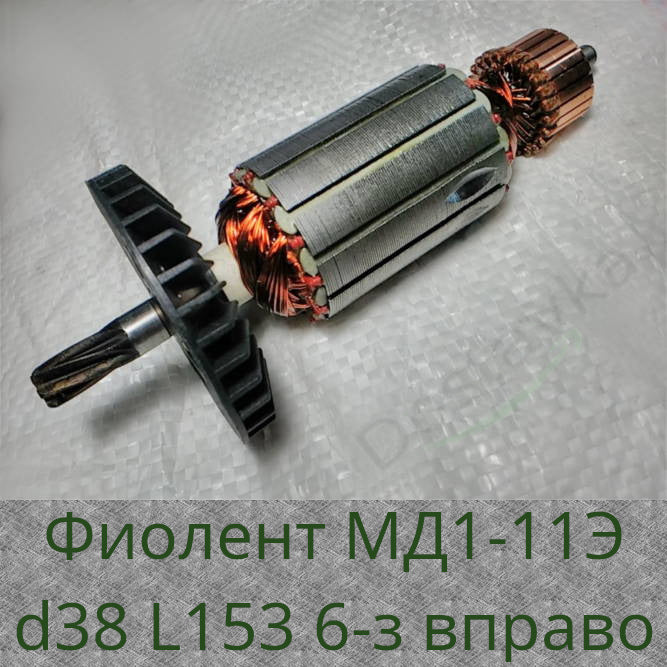

Armature for Fiolent MD1-11E electric drill-mixer, diameter 38, stack length 49, front bearing 9, rear bearing 6. Total length 153, approximately 122 mm between bearings. Splines (helical teeth) 6 right
| Parameters | Values |
|---|---|
| Iron stack diameter D1, mm |
38 |
| Total length L1, mm |
153 |
| Winding stack length L3 | 48 |
| Number of teeth, slant T |
6 right |
| Teeth diameter | 9 mm |
| Commutator diameter d2, mm |
25 |
| Shank/Front |
teeth |
| Rear/front bearing diameters, d3mm/d4mm |
6/9 |
| Mounting distance (between bearings) L2, mm |
122 |
