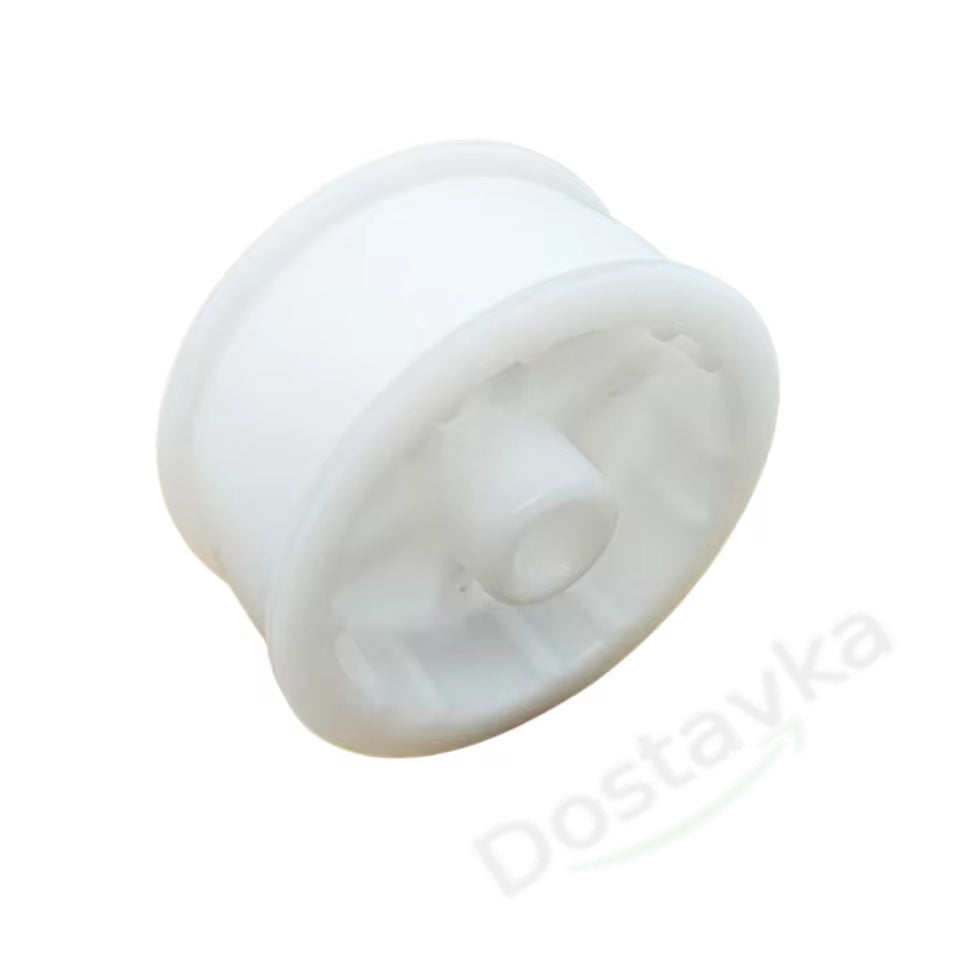

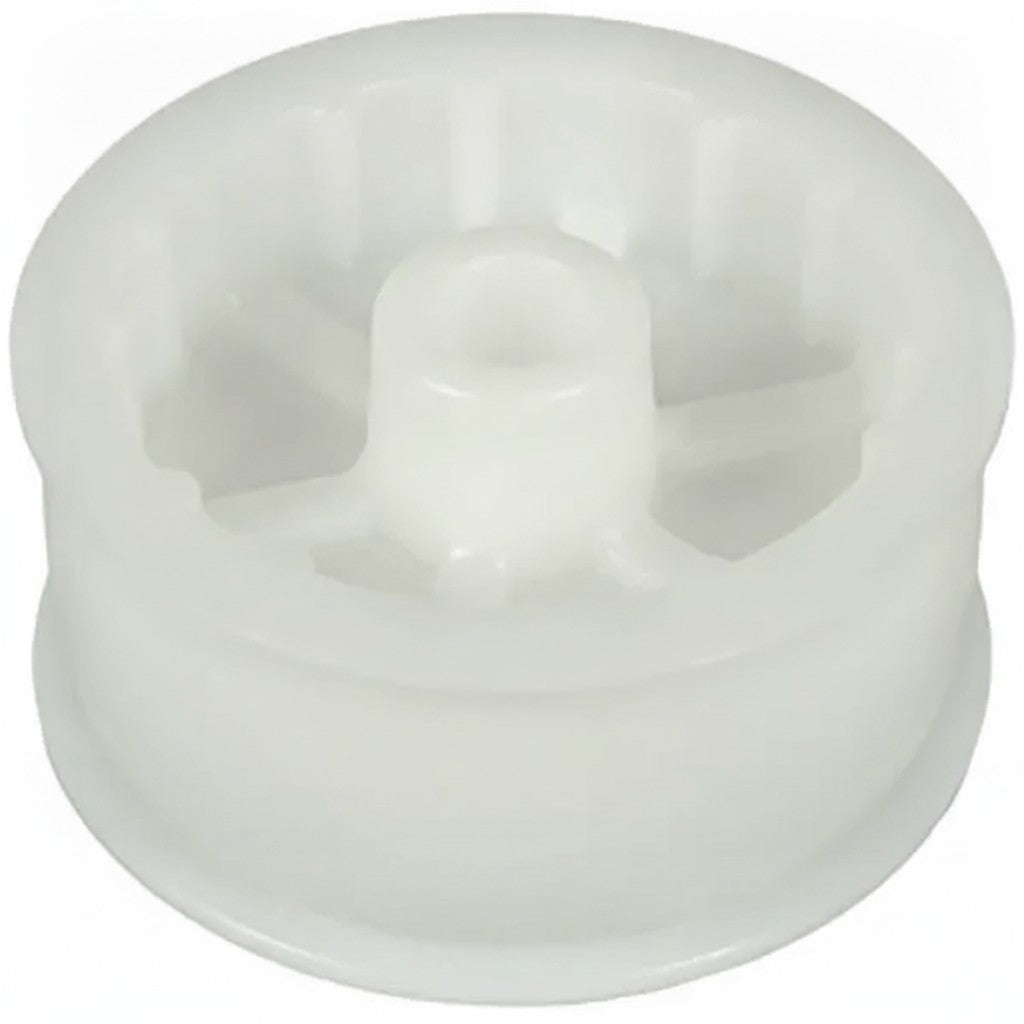

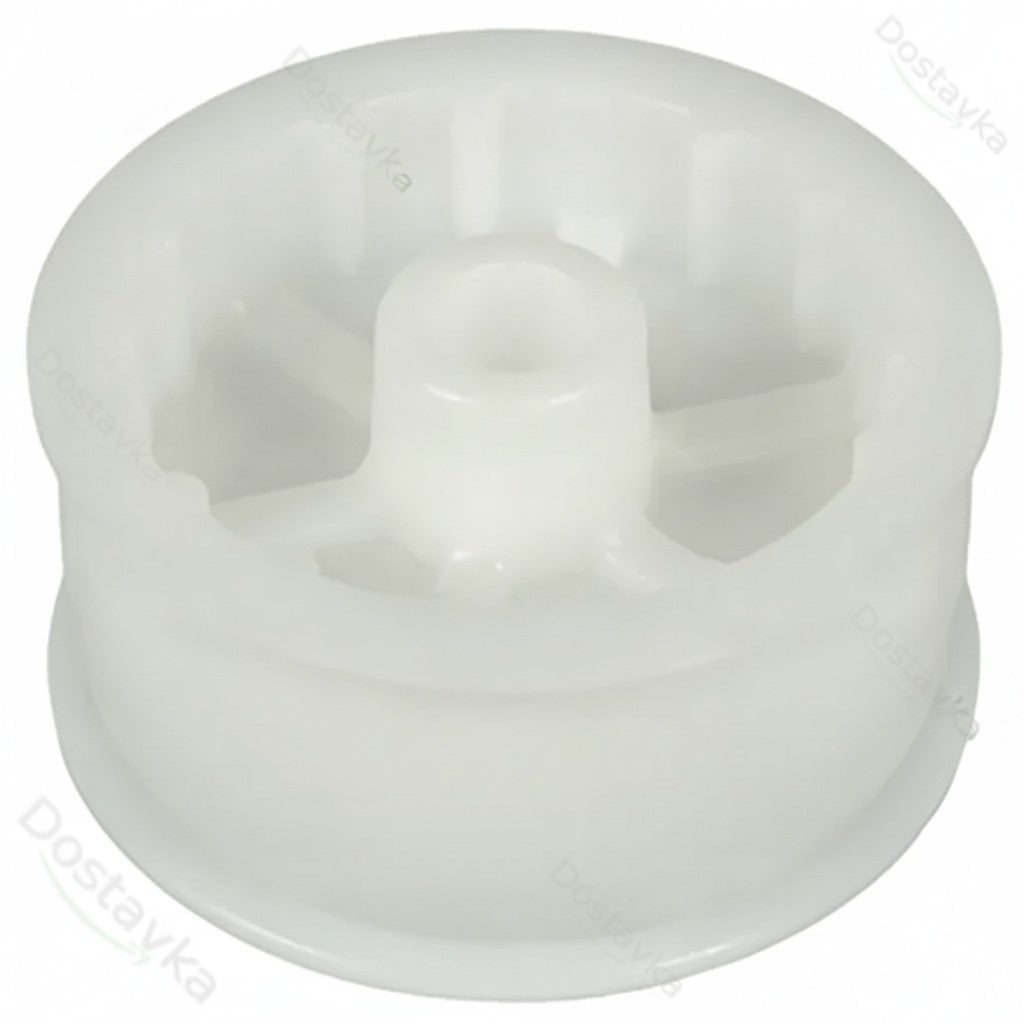

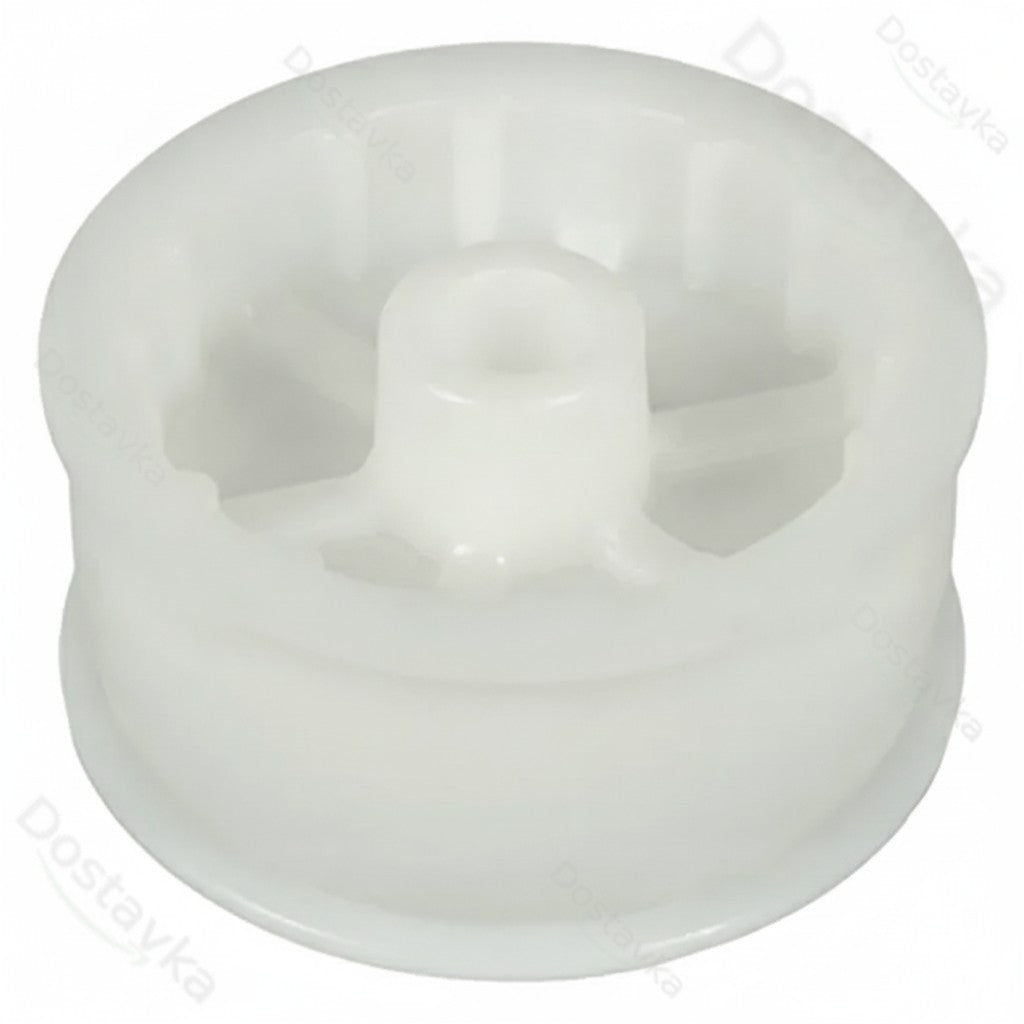

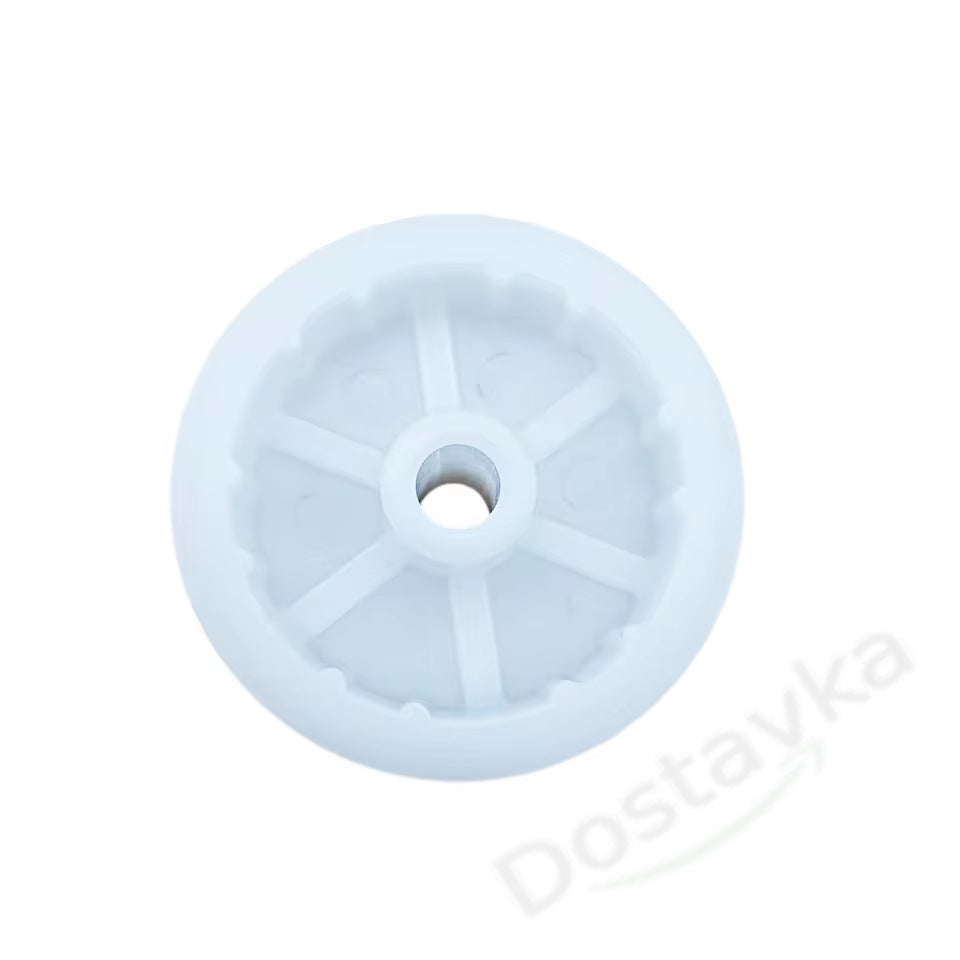

Dryer Idler Pulley (265558 / 00632045 / SP K-09 Hiplex) for Gorenje, Asko, Hisense, Smeg
The replacement drive belt idler pulley (Dryer Idler Pulley) with part number 265558 (SP K-09 Hiplex) is designed to maintain correct and stable drum belt tension in household tumble dryers. The pulley ensures efficient torque transfer from the electric motor to the drum. Installing a new pulley resolves issues with belt slippage, unpleasant whistling, humming, drum stalling, or slow rotation caused by wear or a seized old bearing.
Key Benefits and Features:
- Full OEM Equivalent: Fully replaces original parts with part numbers 265558, 00632045, G265558, 2980666WS, and SP K-09 Hiplex.
- Durability and Heat Resistance: The body is made of high-strength, wear-resistant plastic resistant to constant vibration, high temperatures, and repeated heating cycles inside the dryer drum.
- Smooth and Quiet Operation: Equipped with a precision metal bearing that reduces friction, eliminates noise, squeaks, and screeching during operation.
- Wide Compatibility: Used in dryers from the Gorenje Group, as well as Asko, Hisense, Smeg, Privileg, and many other brands.
- Easy Installation: Direct replacement without the need for modification. The replacement process takes 20 to 40 minutes using basic tools.
Symptoms for Replacing the Idler Pulley:
- The dryer drive belt slips or comes off.
- Loud screeching, whistling, grinding, or knocking in the lower part of the housing.
- The drum does not rotate or rotates too slowly while the motor is running.
- Clothes do not dry due to lack of proper drum rotation.
- The old pulley is seized, has play, or has physical wear on the plastic rim.
Compatibility with Brands and Models:
The 265558 pulley is widely used in condenser, heat pump, and vented dryer models from the following brands:
- Gorenje: D71312, D72325, D9565N, DA92IL, D62325, DNE82, and other models in the D, DA, DNE series.
- Asko: T208H-W-02, T794CS-02, T208CW, T410HD.W.AU, etc.
- Hisense: DHGE901B, DCGE802, DCGE802B, DHGP903, DHGA80, DHGE902, etc.
- Smeg: Dryer models using the Hiplex SP K-09 / 265558 pulley system.
- Other Compatible Brands: Privileg, Bellavita, Essentiel B, Etna, Fagor, Friac, Hanseatic, Inventum, Koerting, Alluxe, Brandt, Panasonic, Pelgrim, Siberia.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Part Type | Drive Belt Idler / Tension Pulley |
| Interchangeable Part Codes (OEM) | 265558, 00632045, G265558, 2980666WS, SP K-09 Hiplex |
| Pulley Rim Material | High-strength heat-resistant engineering plastic |
| Bearing Type | Precision metal rolling bearing |
| Color | White |
| Package Dimensions | 18 x 15 x 4 cm |
| Weight | ~0.041 kg (41 g) |
Brief Installation Instructions:
- Preparation: Power off the dryer by unplugging it from the outlet and move the appliance away from the wall.
- Accessing the Assembly: Remove the rear or bottom service panel to access the motor, belt, and tensioner unit.
- Removal: Loosen the belt tension, remove the old
