Description

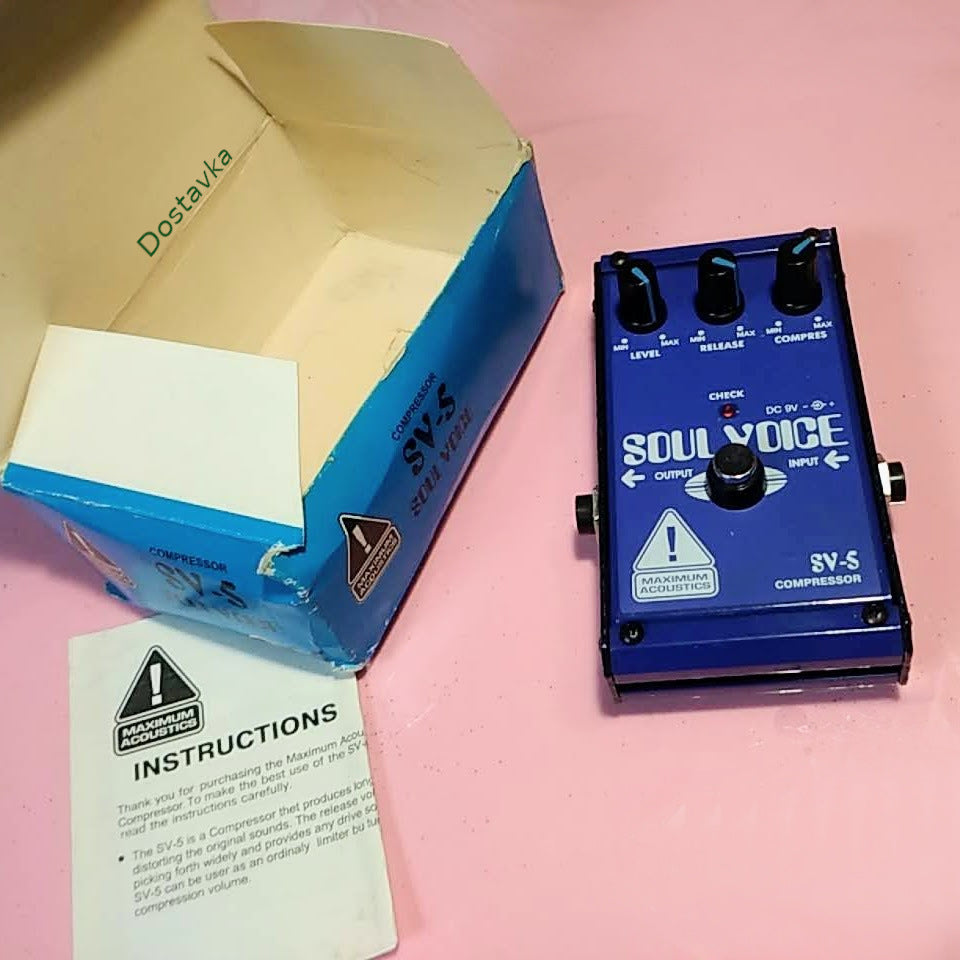

This is a compressor that produces long sustain without distorting the original sound. The release volume is widely adjustable and provides any driving sound. In addition, the SV-5 can be used as a regular limiter, reducing the volume of compression.
This model uses the following adjustments:
"LEVEL" - adjustment of the level of the already processed signal.
"RELEASE" - adjusts the attack from a softer sound recovery to a sharp one, which makes the sound harder.
"COMPRES" - direct compression adjustment, turning the regulator clockwise, equalizes the dynamic range, that is, the difference between loud and quiet sounds, thereby increasing the sustain. Power button (foot switch): the effect is turned on (the indicator light on the pedal panel lights up) when the effect is off, the signal passes without distortion and processing (BY-PASS mode) In combination with the adjustments on the electric guitar itself, the amp and the adjustments on the effect pedal, you can achieve an individual and at the same time high-quality sound. Source: https://soundmaster.ua/maximum-accoustics-sv-5-soul-voice
SPECIFICATION
Controls:-Foot switch, compression, release, level
Indicator:
Jacks:
-Check indicator (also serves as battery check indicator) -Input jack, Output jack, AC adapter jack
Input impedance: 1MO.
Output impedance: 1 KO
Recommended load resistance: 10 kS or more
Input equivalent noise: less than 110 dBm (IHF-A, 0 dBm = 0.775 V)
Power supply: DC9V: Dry battery (type 9V), AC adapter (DC 9V)
Dimensions:
70(W) x 130(D) x 45(H)mm / 2-3/4" x 5-1/8" x 1-3/4"
Weight:
400g/15oz
