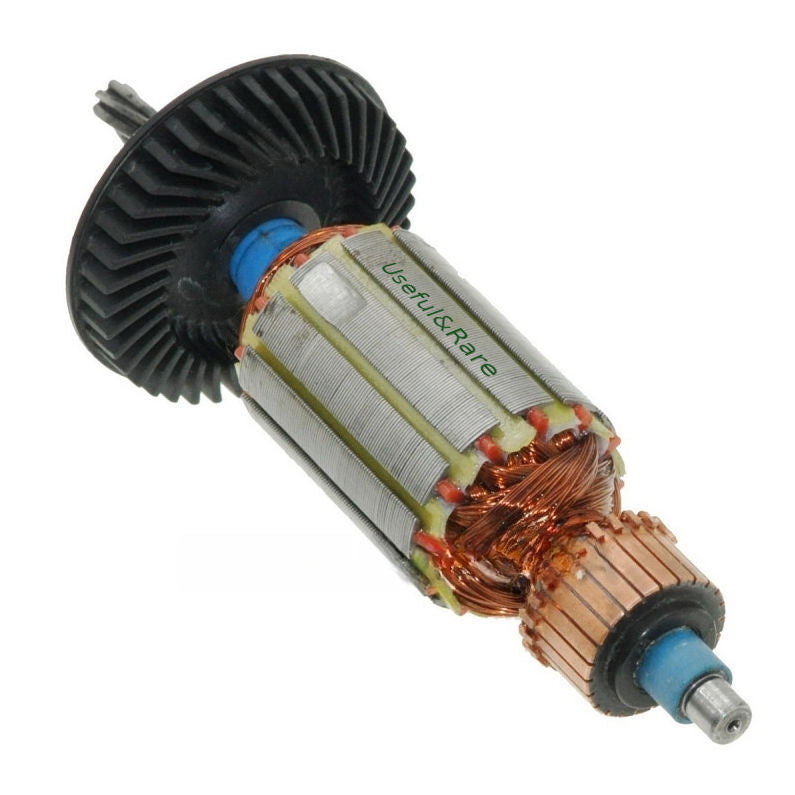

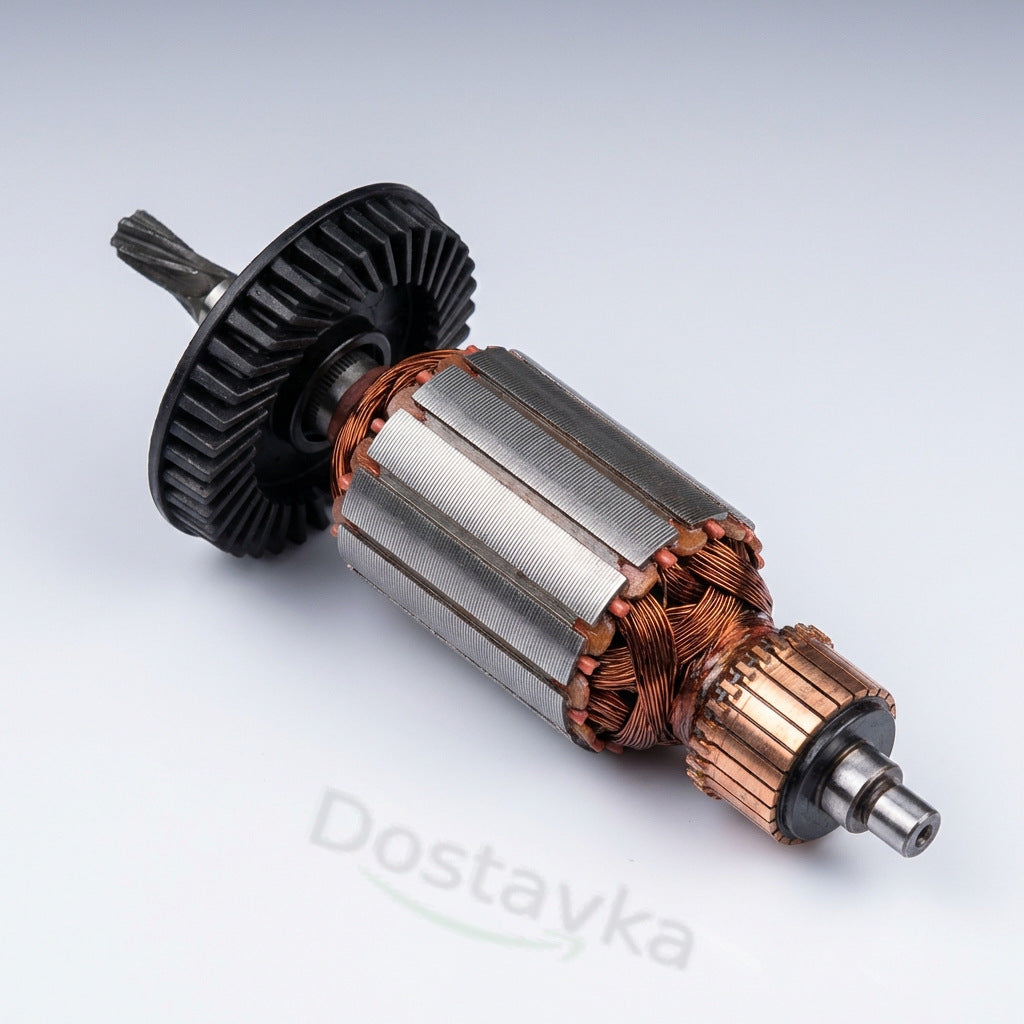

Bosch 2-24 (1614010227) motor armature Hammer drill L154 D35 t6 left

Bosch rotary hammer anchor: GBH 2 SR, 2-24 DFR (1614010227) DSR, TexAC 1100 W TA-01-351, EDON ED-2603A, Vityaz PE-1400, Bautec BBH 950E, SDS steel,

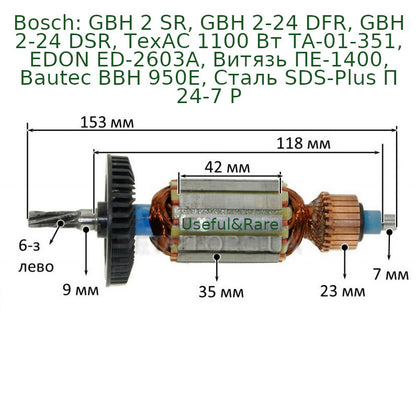

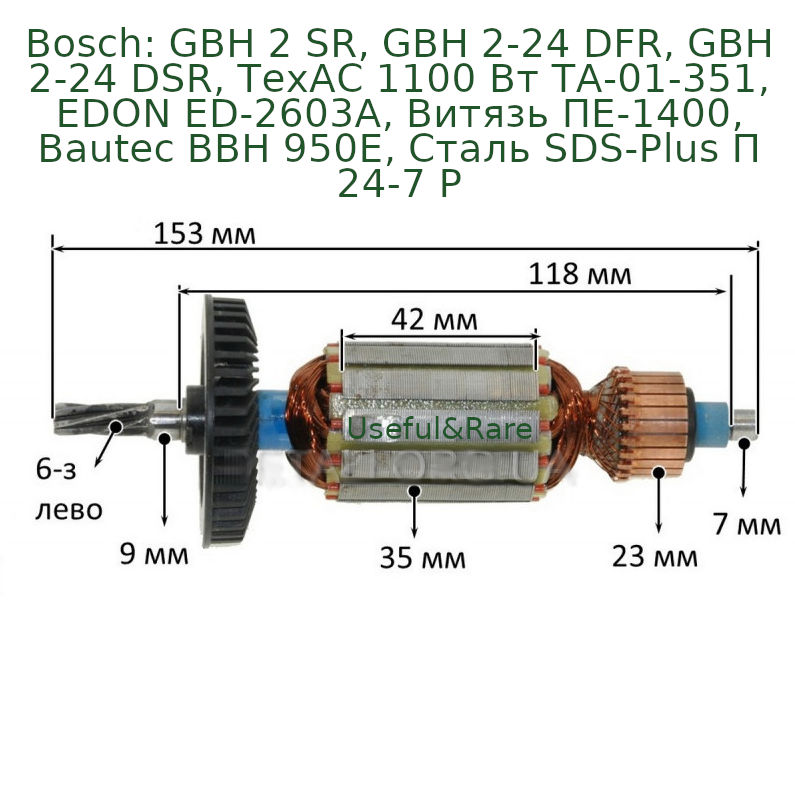

Installation dimensions

• Overall length: 153 mm,
• Winding package diameter: 35 mm,
• Worm shank: 7 mm in diameter (6 teeth left).
• Overall length: 153 mm.
• Package diameter: 35 mm.
• Package length: 43 mm.
• Commutator diameter: 23 mm.
• Lower bearing: 7 mm.
• Upper (front) bearing: 9 mm.
• Bearing spacing: 119 mm.
