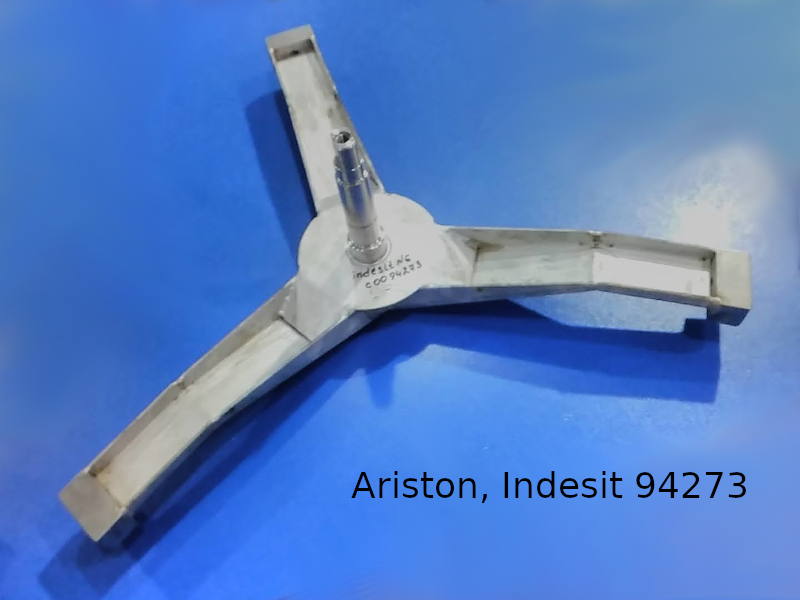

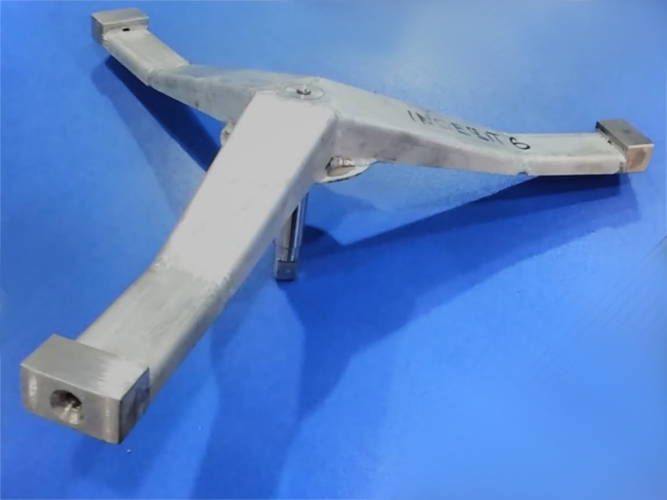

Indesit Ariston washing machine stainless steel drum spider C00094273

Indesit Ariston washing machine stainless steel drum spider C00094273

SKU: 24242

Regular price €59,00 EUR
Regular price €59,00 EUR Sale price €59,00 EUR
Sale Sold out

Local tax may be applicable

View full details

Description


High-strength custom made Drum support spider (C00094273,C00094273, C00094272, C00094275, 482000067962, 482000078050, 482000078051) for replacement in Ariston, Indesit washing machine. Made in the factory from solid stainless steel for the durable and long-term operation. Shaft height 96 mm, oil seal 25 mm, bearings 6203 and 6204

Parameters:

The length of the shaft is 96 mm
For bearings 6203, 6204
The diameter of the sleeve for the oil seal is 25 mm
The height of the sleeve under the oil seal is 12.5 mm
The pulley is fastened with an M8 bolt
Place of landing of the pulley - 17x11 mm
Fastening to the drum - M8
Material - stainless steel
The distance between the center of the shaft and the attachment to the drum is 231 mm
The distance from the sleeve to the outer bearing is 56 mm
The distance from the landing place of the external bearing to the end of the shaft is 27 mm

Compatibility list:

Ariston, Indesit AL109XIT AB108XIT AB108XIT AB88XIT AL68XPT AL109XEU W108XSP AL108XBE AL68XEX W84XSSP W104TXSTK AB63XGR AL109XAUS WA10XIT WE105XR LBE8X ALD100IT AL78XPT WA6XSPT AD1000EX LE1069XIT AB87XIT W106X1DE AVL68IT AVL88IT AVD108IT AVL80R AVL80R AVL100R AVL100R AVD109EX AVD109EX AVD109SEX AVD109SEX AVL85XTK AVL105XTK AVD8XTK AVD10XTK AV102XTK AV82XTK AVD88IT AVL89IT AVL109IT AVD109IT AVL109R AVL109R AVL109R AVD107EX AVD107EX AVL65EU AVL105EX AVL105EX AVL85EU AVL85SEU AVD88SEX AVL85EU60HZ WI84XR WI104XR AVL65EO WIL62XEX WIL85XEX WIL105XEX WIE107XSEX WIL95EXCO AVF109SIT AVF109SIT AVF109SEX AVF109SEX AVF109EX AVF109EX WIL82XR WIL102XR AL89XIT AB108XIT AB108XIT AL89XSIT AL88XEU AL108XSTK W84XSP AB88XEX WE10UK AB65XEO LE869XIT AL109XSK AB88XEO WE8XR LBE6X ALD100EX WME6X AL78XSPT WA8XSPT ALD100TK AB67XIT ALD80EX WE10XSIT AVL68IT AVL88IT AVD108IT AVL80R AVL100R AVL100R AVD109EX AVD109EX AVD109EX AVD109SEX AVD10STK AVL105XTK AVD8XTK AVD10XTK AV102XTK AV82XTK AVD88IT AVL89IT AVL109IT AVD109IT AVD108SIT AVL109R AVL109R AVL109R AVD107EX AVL65EU AVL65EU AVL105EX AVL85EU AVL85EU AVL85SEU AVD88EX AVL85EU60HZ WI84XR WI104XR WIL62XEX WIL85XEX WIL85XSEX WIL105XEX WIL105SEX WIL95EXCO AVF109SIT AVF10STK AVF109SEX AVF109EX AVF109EX WIL82XR WIL102XR AVF108SAG Детальніше: https://techno-zip.com.ua/ua/p1653020241-krestovina-barabana-dlya.html
