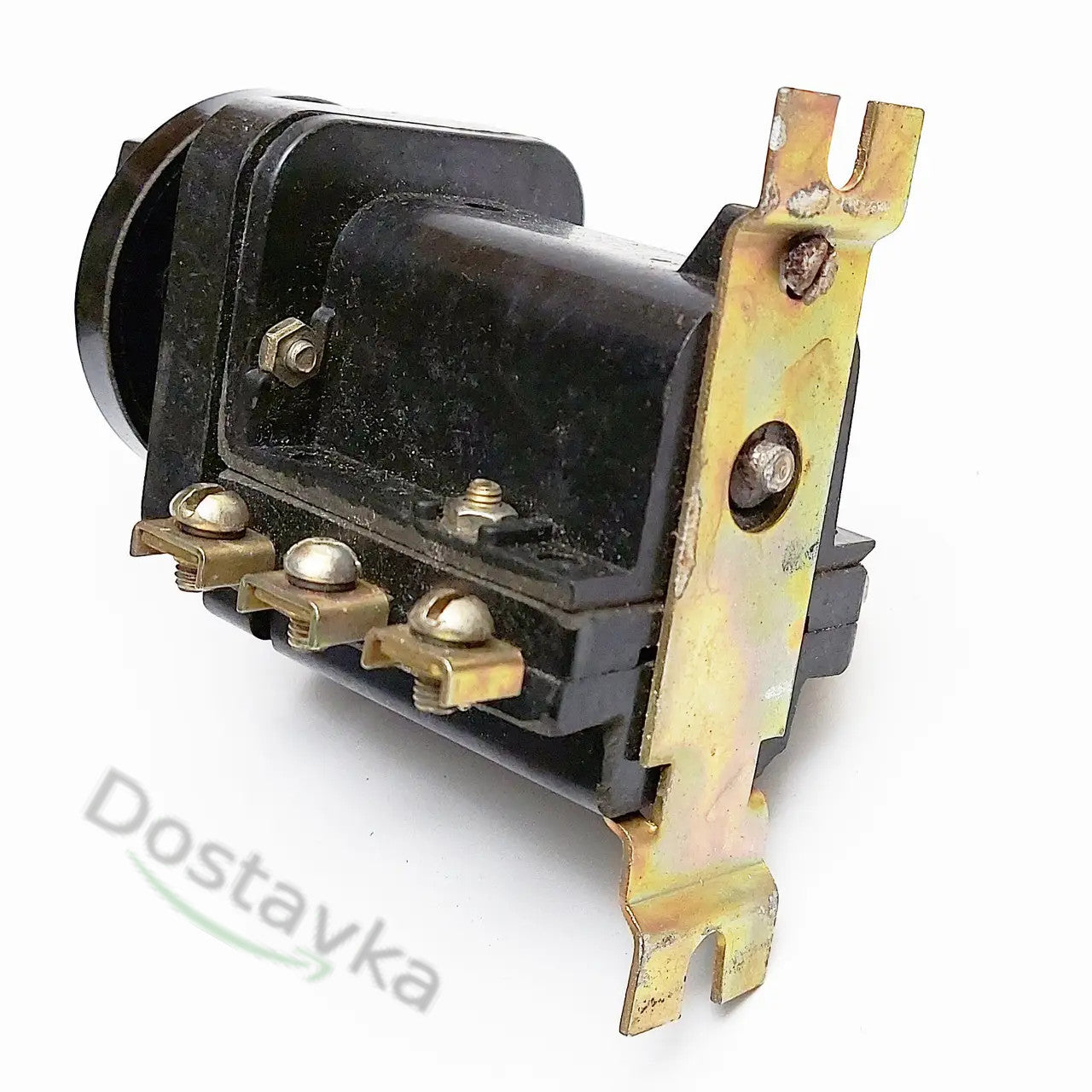

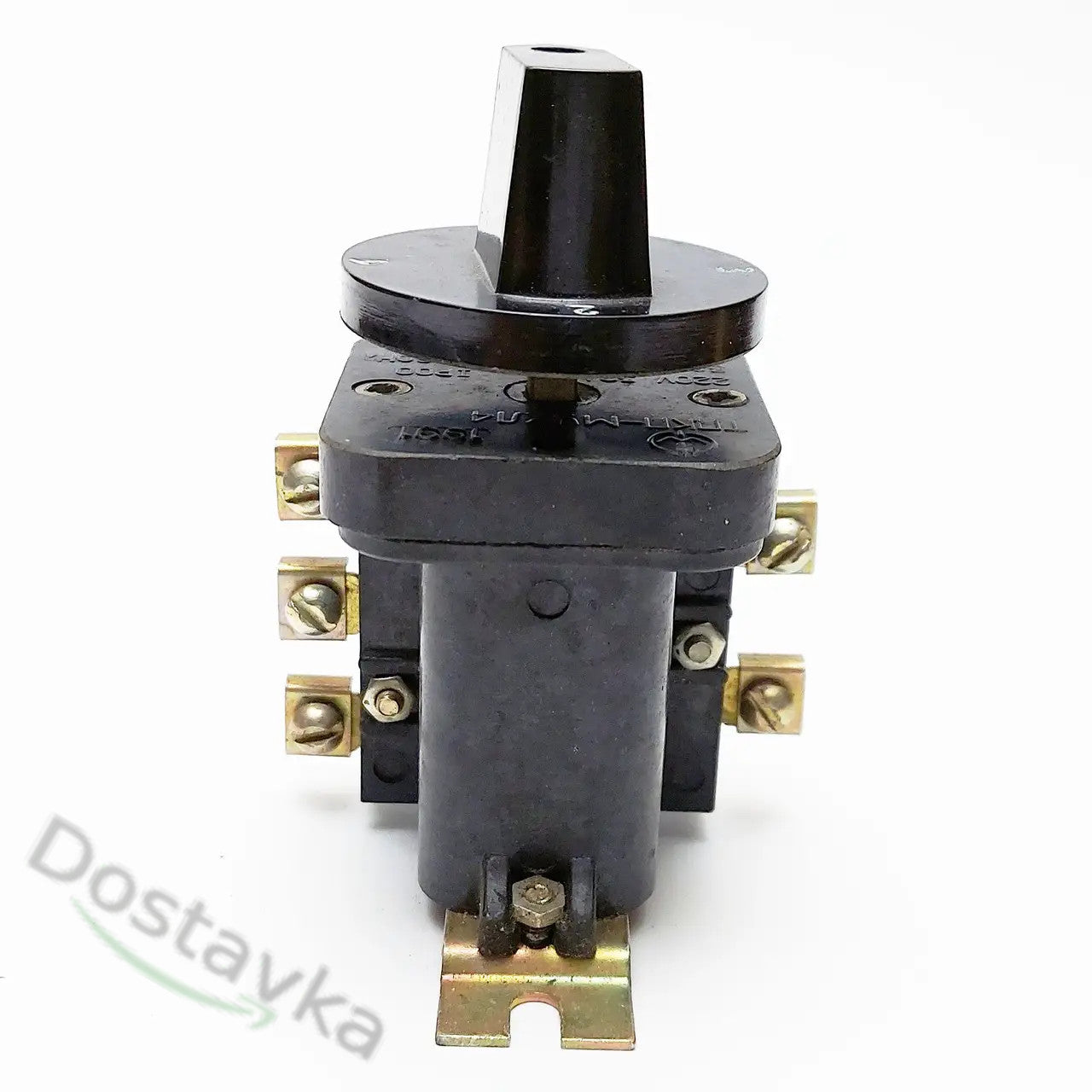

Industrial stoves and ovens selector switch PPCP-32A (TPKP-32A)

Switch PPCP-32A (TPKP-32A) for industrial stoves and ovens

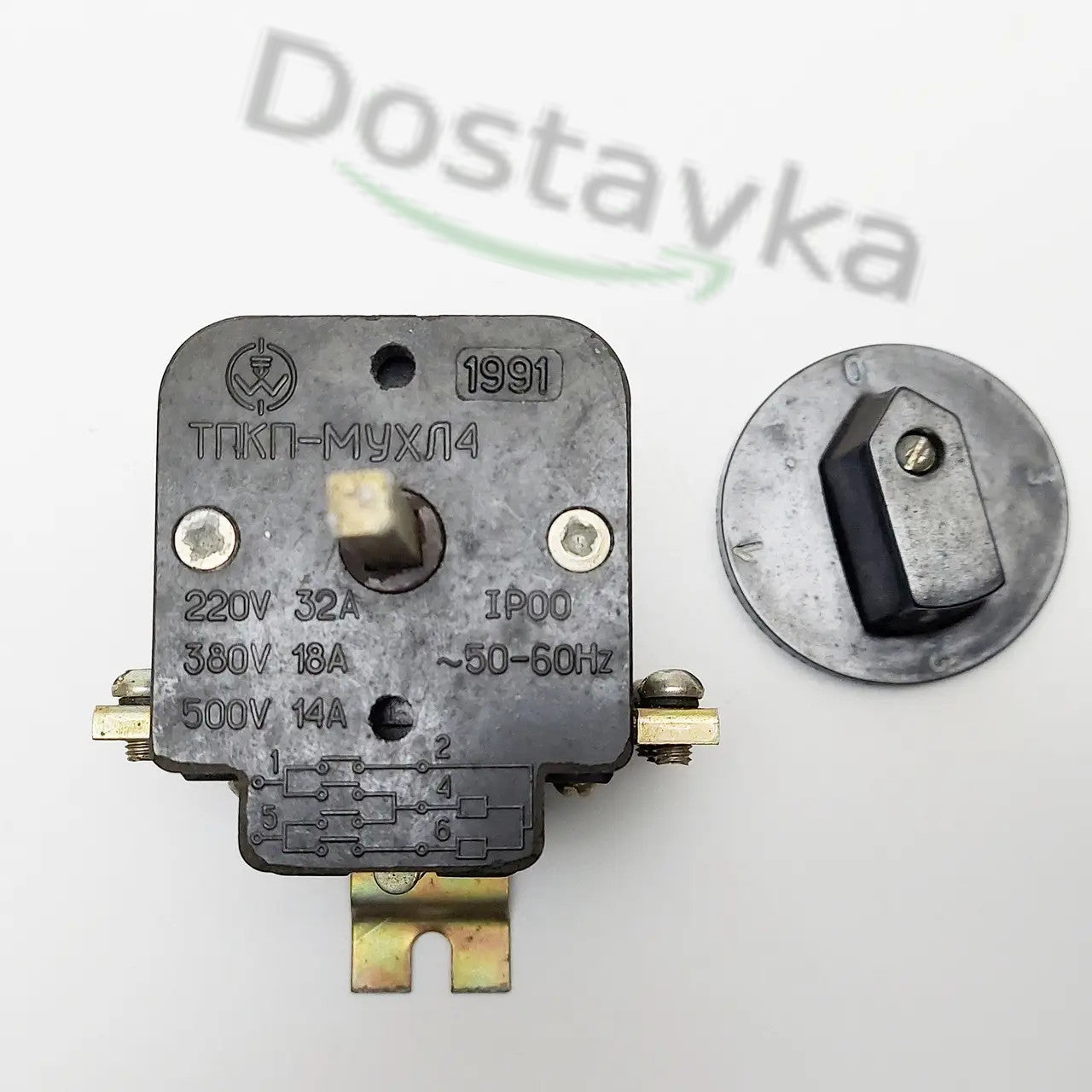

Heat-resistant packet switch PPKP 32A TPKP-MUHL4 model 1991.

ambient operating temperature - no more than 120 °C;
relative humidity - no more than 95%.
The design of the switch allows the handle to be turned in both directions from the zero position.
Safe operation of the switch is ensured by using a handle fixed with a screw and an electrically insulating wedge on the axis of the square cam.

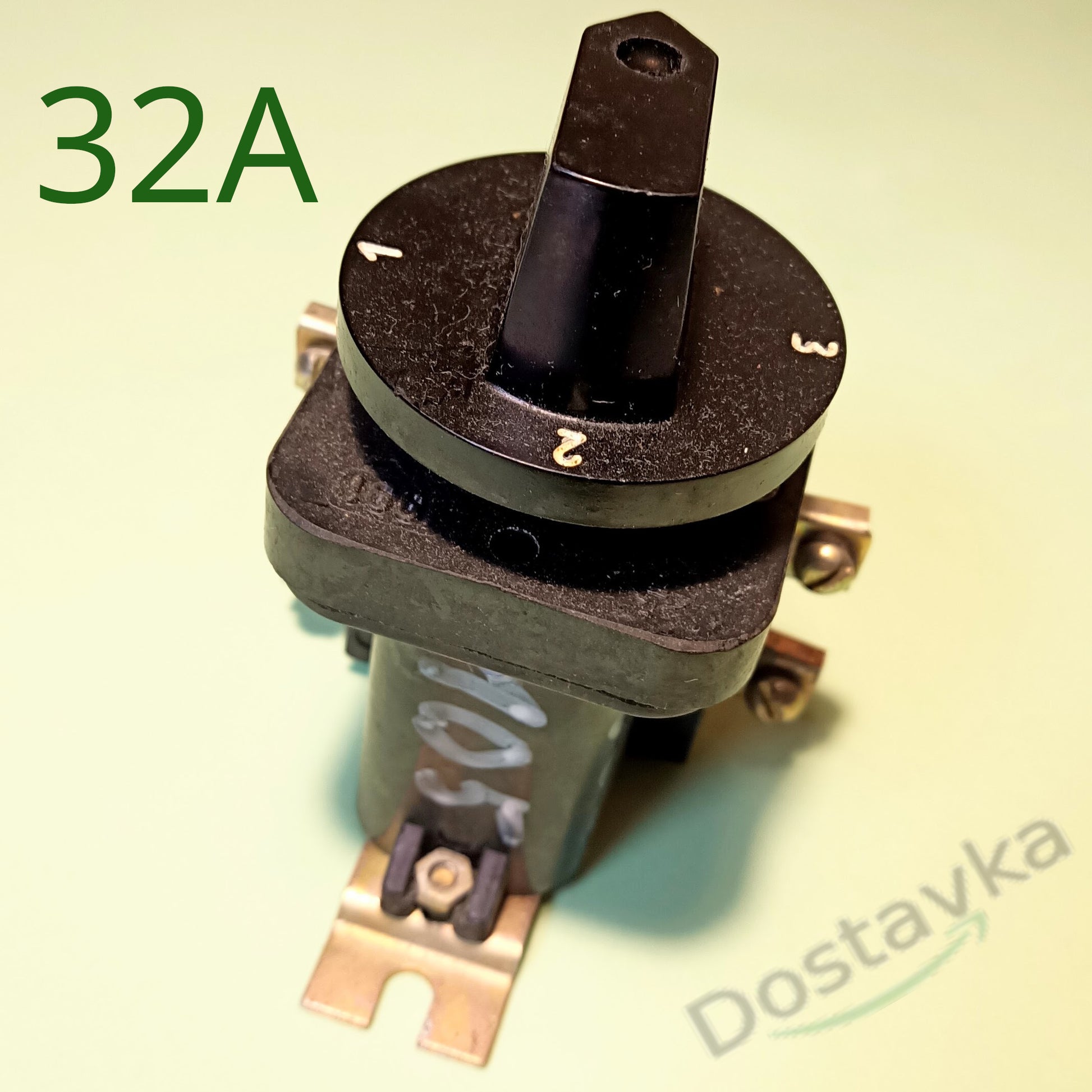

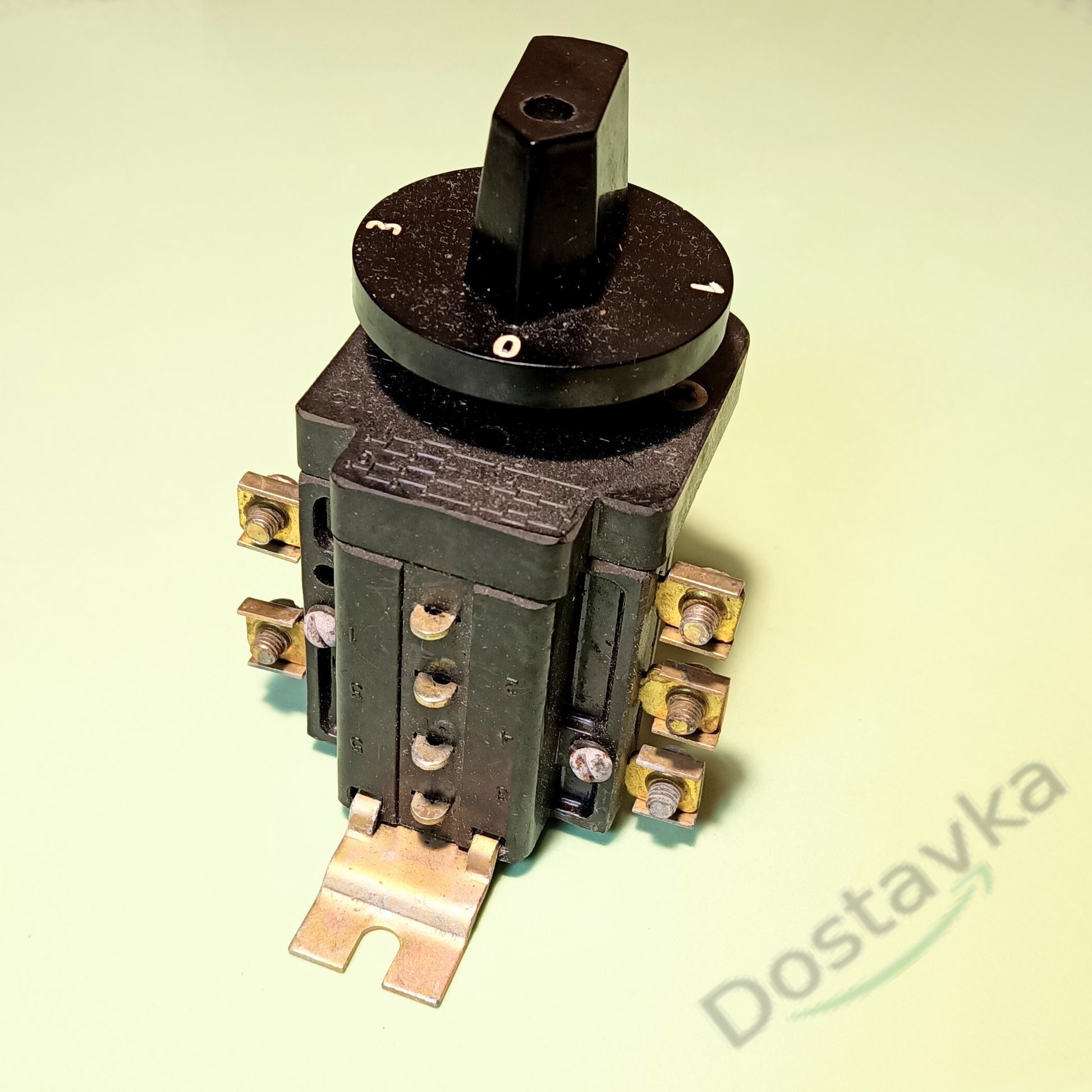

The switch has four fixed positions, which provide the following load connection options:
- zero - the load is off (all contacts are open);
- first, two electrical load circuits are connected in series (contacts 1-3 and 2-4 are closed);
- second - one electrical load circuit is switched on (contacts 1-3 and 2-5 are closed);
- the third - two electrical load circuits are connected in parallel (contacts 1-3, 1-4 and 2-5 are closed).

Technical specifications:

• Type: Switch Packet
• Material: phenolplast
• Electrical contact material: silver
• Nominal voltage, V: 220/380/500
• Frequency, Hz: 50-60
• Nominal current, A: no more than 32
• Overall dimensions, mm: 60x80x115
• Weight, kg: no more than 0.31.
