Description

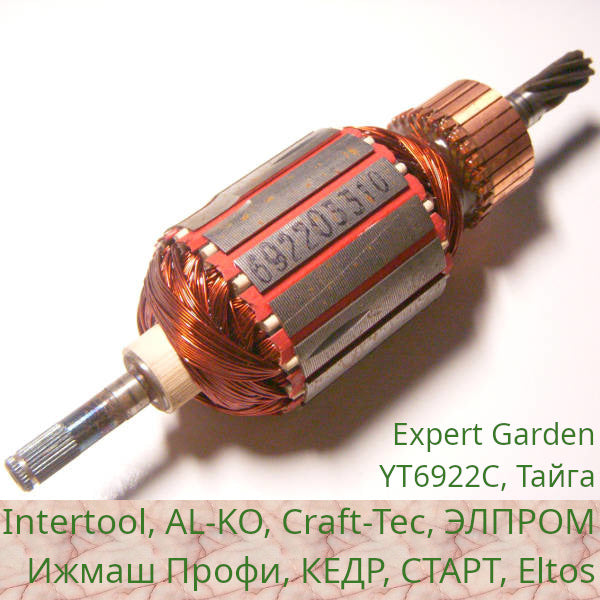

Electric motor armature for garden trimmer, electric brushcutter Sterwins 1000/1200 BC-2, Expert Garden 1200 W (NL10105366), YT6922C (PR8402-692203), Taiga KG-2100, Intertool DT-2242, AL-KO BC 1200 E, MEGA BR 140, Izhmash Profi ITP-2100, Craft-Tec EKS-2200, CXGS-2200, ELPROM ETE-2000, START STE-2100, Eltos KG-2100/2200, Mega BR 140, Champion ET1004A, KEDR KG-2100/ 2200, Forest KG-2100.
Main Specifications
- Armature core diameter - 47 mm,
- Stack length - 41 mm,
- 7 teeth, right-hand.
- Shaft length - 171 mm.
- Commutator - 30 mm.
- Bearing mounting seats - 8 and 10 mm.
- Distance between bearings - 112 mm.
For reference: mating driven gear size:
Shaft length 48 mm; 17 teeth.
The mating gear is sold separately or as part of the electric motor
