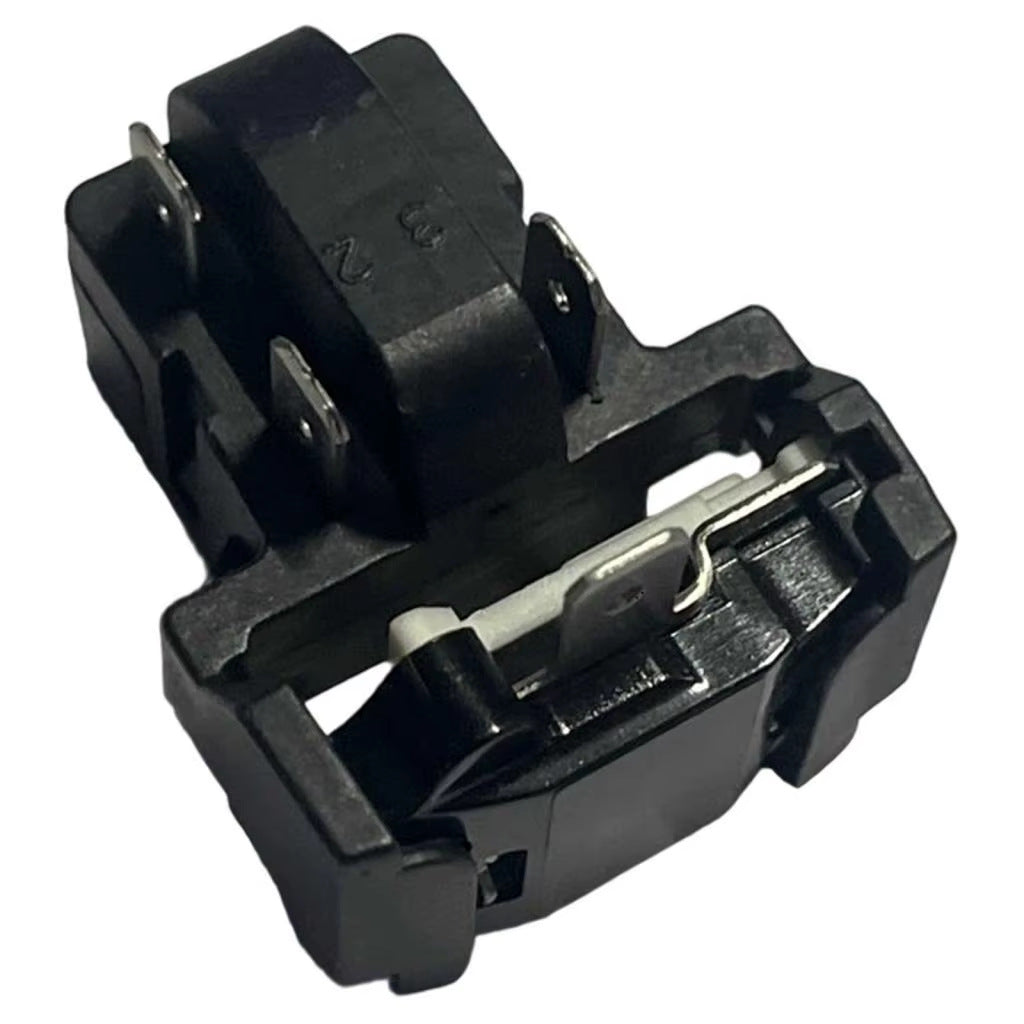

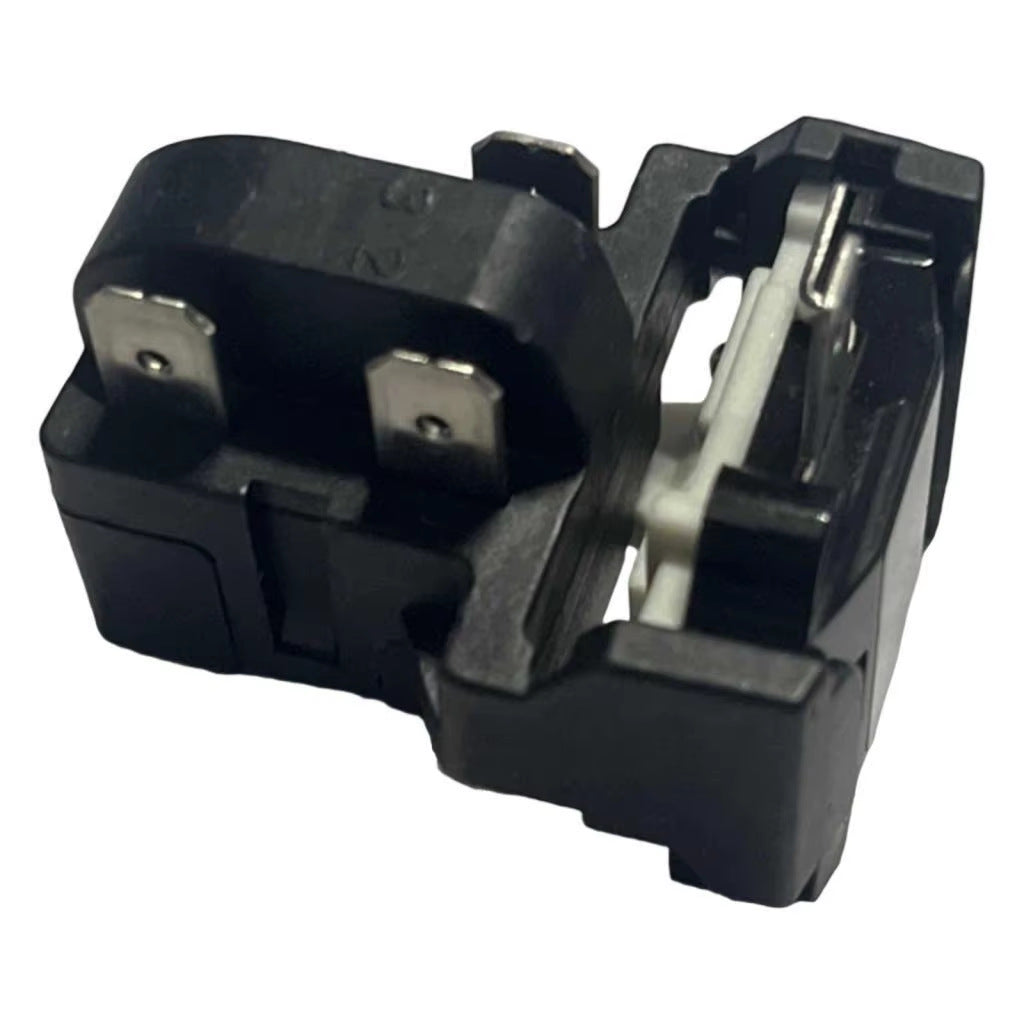

Refrigerator Compressor PTC Start Relay (3 pins / terminals)
Universal PTC-type start relay with 3 pins is designed for reliable starting and protective shutdown of compressors in household refrigerators, freezers, and chest freezers. It combines a PTC starting element and a bimetallic protection relay (overcurrent and overheat protection) in a single housing. It ensures a safe start for the compressor motor and protects it from burning out during voltage surges or rotor jamming.
Key Advantages and Features:
- Combined "2-in-1" design: Combines the functions of a PTC starting element and a thermal protection relay in a single compact unit.
- High reliability (PTC thermistor): The absence of moving mechanical contacts in the starting circuit eliminates sparking, burning, and contact sticking.
- Built-in overload protection: The bimetallic plate automatically opens the power circuit in case of a dangerous current increase or compressor housing overheating.
- 3 external contacts (6.3 mm Faston terminals): Provide convenient connection for power wires, start, and run capacitors (if present in the circuit).
- Direct replacement: Easily installs directly onto the compressor's feed-through pins without wiring modification.
Compatibility and Application:
- Equipment: Household and commercial refrigerators, chest freezers, display cases, freezers, and ice makers.
- Technique Brands: Indesit, Ariston, Stinol, Atlant, Beko, LG, Samsung, Whirlpool, Nord, Candy, Liebherr, and most Chinese-made models.
- Compatible Compressors: Jiaxipera, Danfoss, Secop, ACC, Aspera, Wanbao, HUAYI, Cubigel, Matushita, etc.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part type | Compressor start relay (PTC + protection) |
| Starter operating principle | PTC (Positive Temperature Coefficient) |
| Number of contacts (terminals) | 3 flat terminals (6.3 mm Faston) |
| Operating voltage / Frequency | 220–240 V AC / 50–60 Hz |
| PTC resistance (at 25°C) | ~ 12–22 Ohm (standard for household compressors) |
| Housing material | Heat-resistant non-flammable plastic (PBT / ABS) |
Package Includes:
- 3-pin PTC start relay — 1 pc.
Technician's tip: Before purchasing, ensure that the pin connector on your compressor matches the relay's socket layout. If the relay has failed (clicks are heard, but the compressor doesn't start or hums for a couple of seconds and shuts off), replacing the start relay unit is the first and most cost-effective solution.
