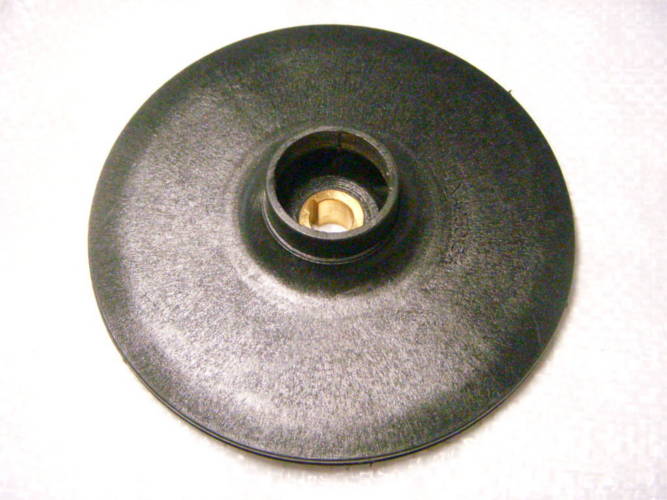

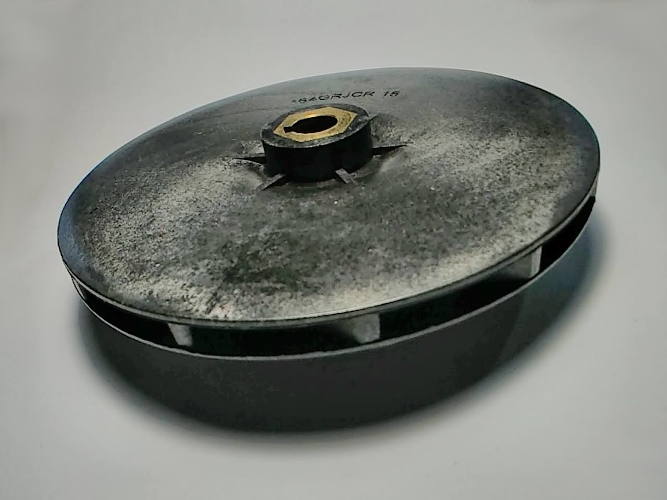

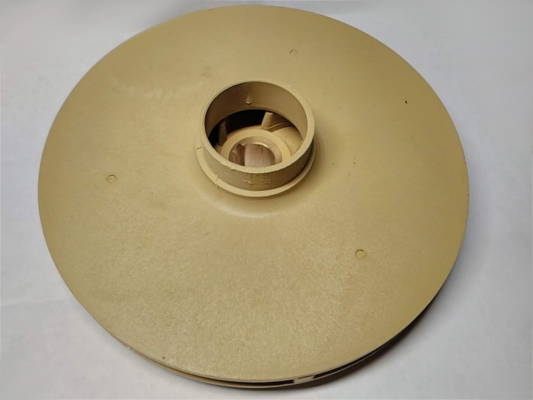

JSWm 15M, JSWm 2C series pumps impeller wheel 164GRJCR 15 pump (∅134x12x33 h5.5-11 key bushing h20)

Thick impeller wheel XA03013A 164GRJCR 15 with an outside dimension of ∅134~135 mm is put on a shaft of ∅12 mm (bronze bushing under the key) for the ground water pumps Taifu, NPO/Sprut JSWm 15MX, JSW 15M, JDW 1A (A05/015), Aquario, Wender JET-150, Ultropump JET-10M, H.World JSW15M, Optima, (SJWm 15M), Pedrollo JSWm (15m) 2AX, 2CX 0.75 kW, JCRM15M, LEO XJWm/15HA3 (776227), AQUATICA 776225, Aquatica 776227, XJWm/10M (775323), Delfin, Dolphin F JSWm 15m, Sprut, Kenle JSW/15M, JS100, hydrophore 1500 W IBO JSW 150 (Poland), NPO+ JSWm 15MX, Sprut JSP355A-A05/015, SILVER 100

Suction pipe outer diameter ∅33~34 mm
Reverse side projection 9mm
Mounting height (depth) of the sleeve 20 mm
Overall height 36mm
Thickness (height) at the edges 11~12 mm
The cavity between the blade discs is 5~6 mm
