Description

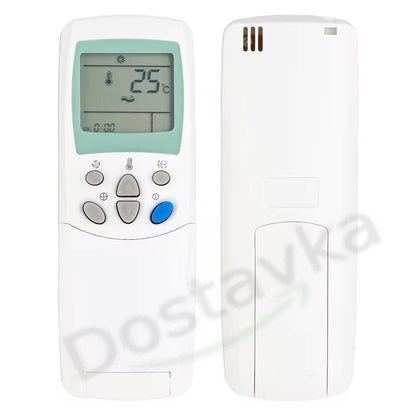

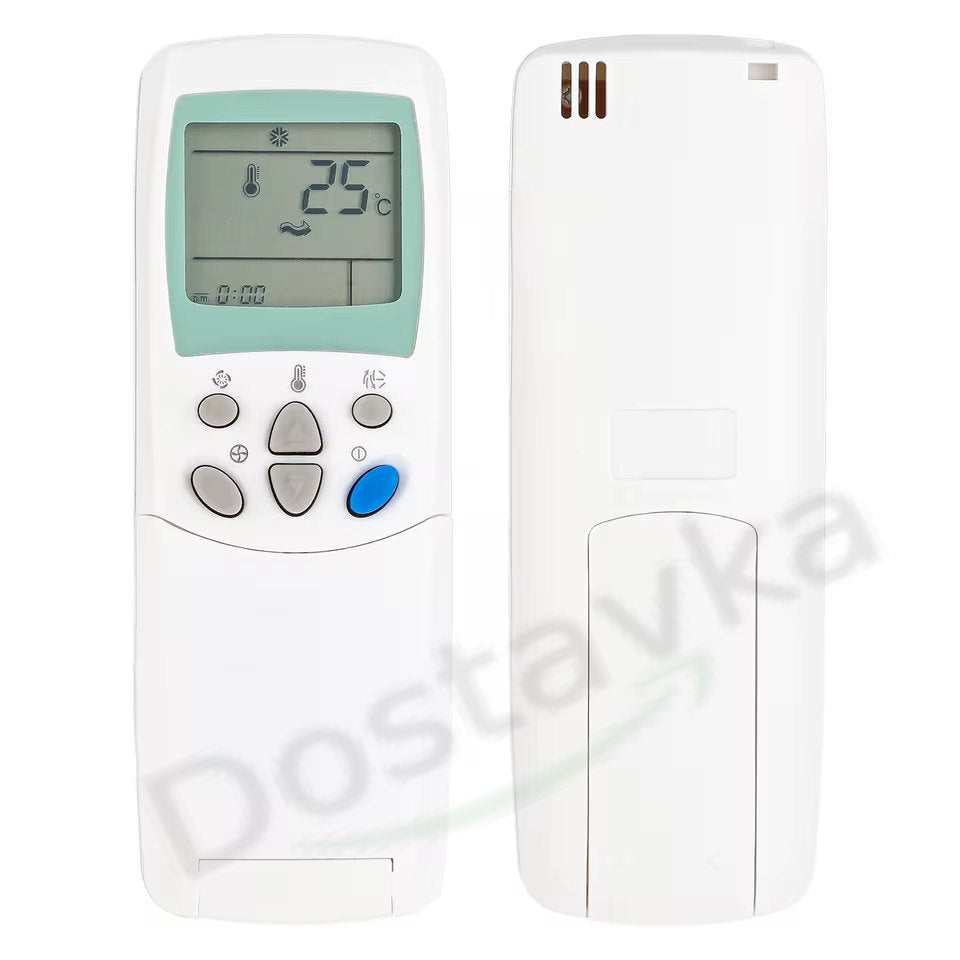

Remote Control for LG Air Conditioner (Part Number 6711A20028K)
Remote Control 6711A20028K is designed to control LG wall-mounted split systems and residential air conditioners. The device provides full control over the indoor climate: it allows switching operating modes (cooling, heating, ventilation, dehumidification, auto), adjusting the fan speed of the indoor unit, setting the position of the guide louvers, and programming the built-in on/off timer. The remote operates via the standard LG infrared protocol and does not require complex initial setup.
Key Benefits and Features:
- Full Original Replacement: Completely duplicates the functions and signatures of the stock LG factory remotes from the 6711A20028K, 6711A20028A, and 6711A20010B series.
- Ready to Use Without Programming: No code entry required — simply insert the batteries, and the remote is immediately ready to control a compatible air conditioner.
- Informative LCD Display: Clearly displays the current set temperature, selected operating mode, fan speed, timer, and clock indications.
- Ergonomic and Durable Housing: Made of impact-resistant virgin ABS plastic with wear-resistant, soft-touch silicone buttons.
- Stable Signal: A powerful IR diode and an updated microchip ensure fast response and reliable command transmission at a distance of up to 8–10 meters.
Compatibility and Application:
Replaces the following LG air conditioner remote control models and part numbers:
- 6711A20028K
- 6711A20028A
- 6711A20010B
- 6711A20028C
- 6711A20028H
- 6711A20028D
Suitable for LG split systems and air conditioners of the LS, S, C series and similar, including models:
- LG LS-K2460CM
- LG LS-K1860CM, LS-K1860HL
- LG LS-J0761HL, LS-J0961HL, LS-J1261HL
- LG LS-H0961DL, LS-H1261DL
- LG S07LHP, S09LHP, S12LHP, S18LHP, S24LHP and other LG wall-mounted air conditioners with a similar control panel and button layout.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Device Type | Remote Control (RC) |
| Purpose | For LG air conditioners and split systems |
| Model / Part Number | 6711A20028K |
| Display | Monochrome Liquid Crystal Display (LCD) |
| Operating Range | up to 8–10 meters |
| Signal Transmission Channel | Infrared (IR) |
| Power Type | 2 x AAA batteries (LR03 / 1.5V, not included) |
| Housing Material | Impact-resistant ABS plastic |
| Housing Color | White / Light Gray |
Package Includes:
- LG 6711A20028K Remote Control — 1 pc.
- Packaging — 1 pc.
Pro Tip: Before ordering, be sure to compare the layout and button labels on the front panel with your old remote control. Note that the timer and clock functions are only supported correctly if these features are hardware-implemented in the air conditioner's control board. For stable operation, use high-quality alkaline AAA batteries of the same charge level and brand; when winterizing the split system or during long periods of non-use, be sure to remove the batteries
