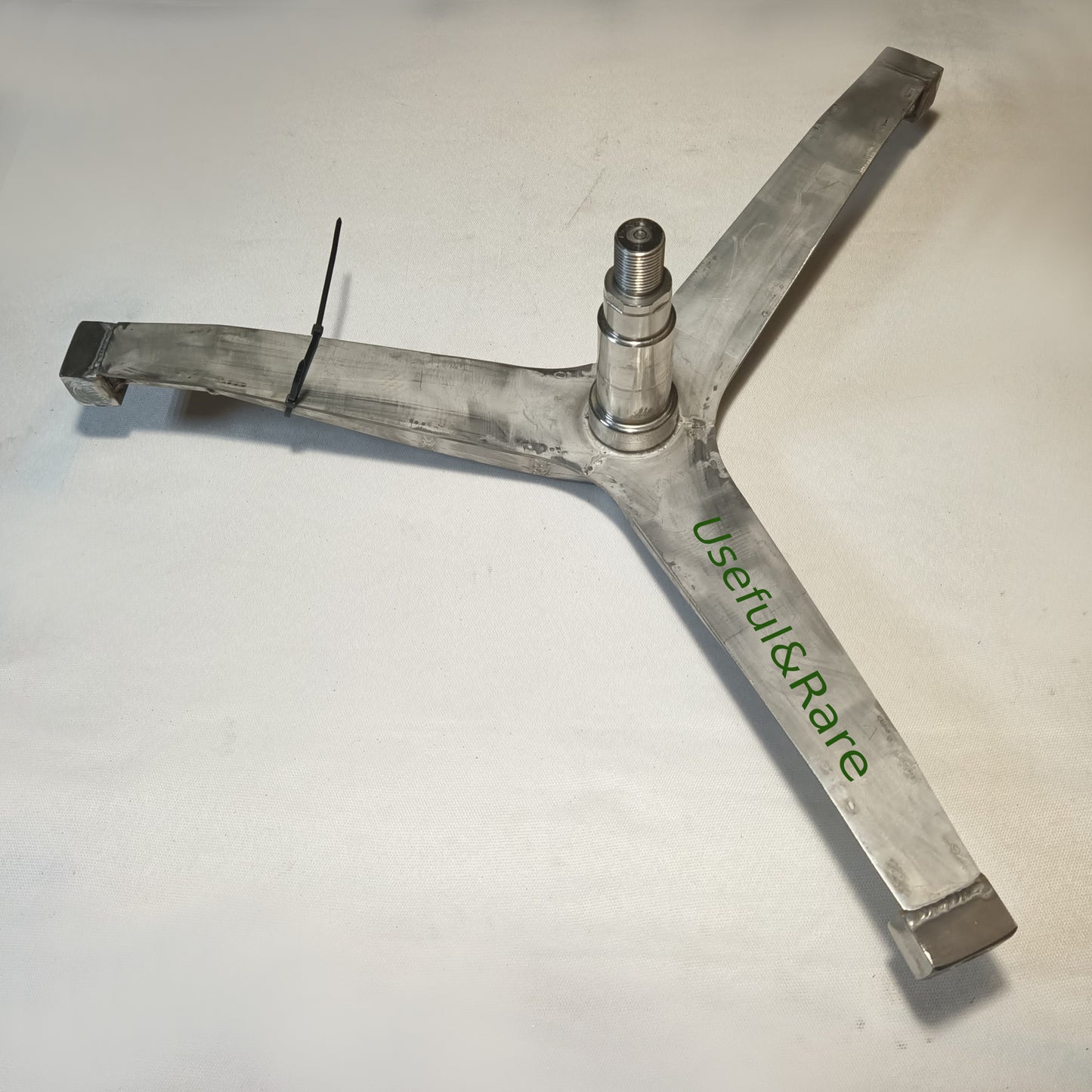

LG washing machine stainless steel spider 4434ER1004B/ 4434ER1007A COD.726

Drum Support spider COD.726 for rebuild LG 4434ER1004B 4434ER1007A washing machine. Made of stainless steel

• Bearing seating diameter No. 1 25 mm
• Bearing seating diameter No. 2 30 mm
• Height 7 mm (face)
• Shaft length 107 mm
• The diameter of the bushing for the oil seal is 37 mm
• Material: stainless steel
• Mounted fit on the shaft 25x23 mm (4 sheets) + thread on the shaft M18 - pulleys; thread M8 - to the drum;
• Radius 240 mm from the shaft axis to the edge of the shaft - (perpendicular to the shaft axis)
• Stand between the bearing stops 47 mm
• Height of bushing under oil seal 18 mm
