Description

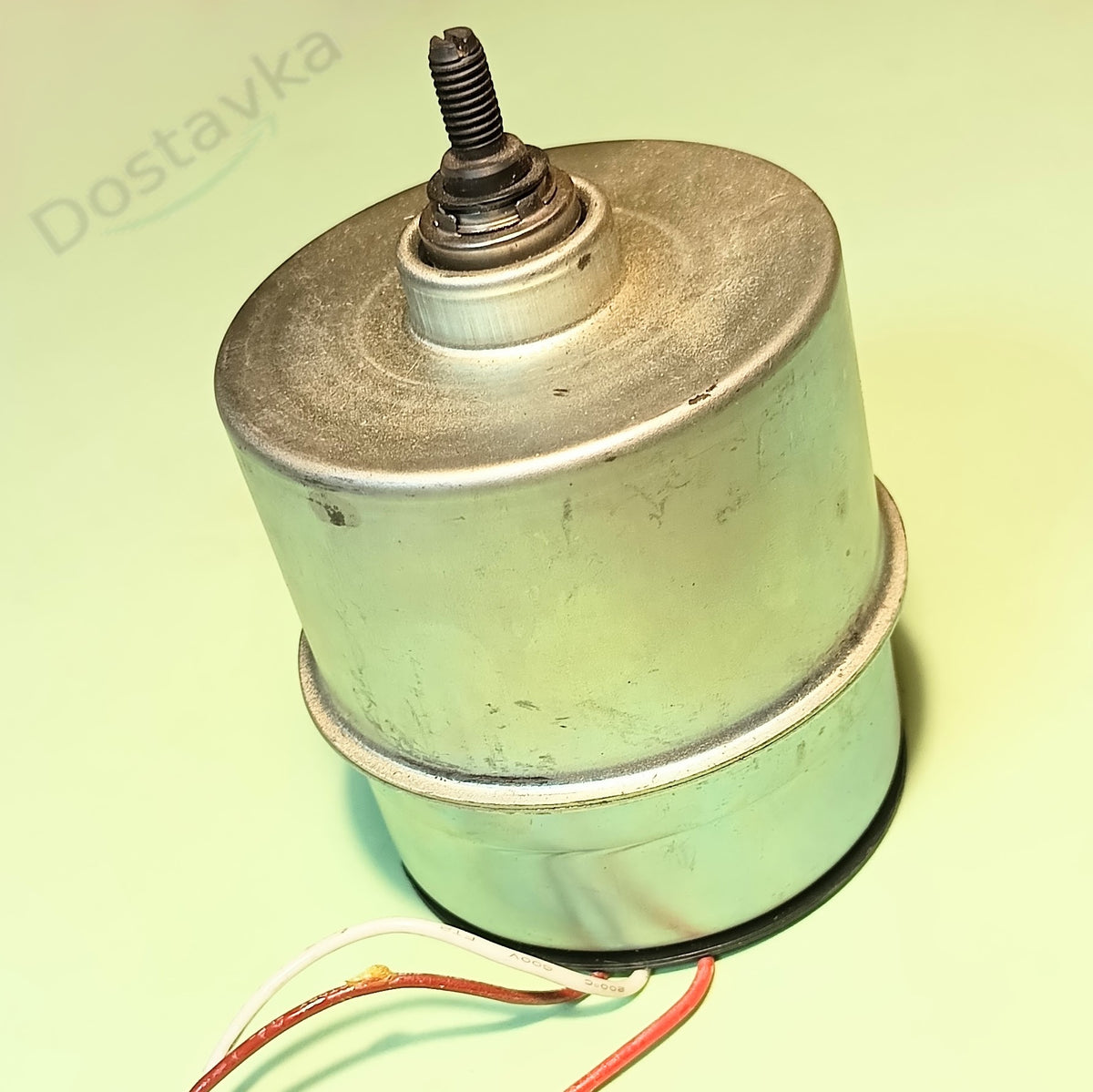

Non-serviceable electric motor in a sealed steel housing for TP / QDS 550 series pumps (550 W)
The 550 W (0.55 kW) submersible non-serviceable electric motor is designed for the replacement repair of drainage, sewage, and garden submersible pumps of the TP/QDS 550 series. The motor is supplied as a complete assembly in a sealed, non-serviceable steel sleeve ("can"), which protects the stator windings and rotor from the pumped water. It is equipped with a mechanical face seal on the shaft output side and flexible insulated leads for power and grounding connections.
Key Advantages and Features:
- Sealed steel housing: A two-part welded semi-can (length ratio 55 mm and 40 mm) ensures absolute protection of the internal stator windings from moisture and corrosion.
- Factory-assembled unit: Allows for restoring pump functionality when the stator burns out without the need for labor-intensive rewinding and complex press-fitting.
- Reliable shaft protection: A spring-loaded mechanical face seal is installed on the shaft, preventing water leakage into the motor compartment.
Please note: The impeller (runner) is not included in the package and must be purchased separately or transferred from the old motor.
Signs of Electric Motor Failure:
- The pump hums when plugged in, but the shaft does not rotate (winding breakdown or rotor jamming).
- The circuit breaker (RCD) trips when the pump is submerged or turned on (water ingress into the housing and ground fault).
- The motor overheats significantly and shuts down via the built-in thermal protection after a few minutes of operation.
Compatibility and Application:
Used in 550 W submersible drainage and sewage pumps of various brands (Lider, Euroaqua, Aquatica, Kenle, Rona, Sprut, Shimge, Werk, Forte, Dnipro-M, etc., using TP 550 / QDS 550 type pump units):
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part type | Submersible electric motor (non-serviceable monoblock) |
| Compatible pump series | TP 550 / QDS 550 and analogs |
| Rated power | 550 W (0.55 kW) |
| Operating voltage / Frequency | 220 V ~ 50 Hz |
| Outer diameter of the sleeve (can) | 90 – 91 mm |
| Housing (can) length without shaft | 95 – 96 mm (semi-can ratio 55 mm and 40 mm) |
| Total length including shaft and protruding parts | 135 – 145 mm |
| Housing type | Non-serviceable sleeved steel cylinder |
| Seal completeness | With mechanical face seal (spring-loaded oil seal) |
Package Contents:
- Non-serviceable 550 W electric motor assembly — 1 pc.
Pro tip: Before final pump assembly, be sure to check the condition of the housing O-rings and the mechanical seal seat. When installing, screw on or fix the impeller (runner) carefully to avoid damaging the ceramic and graphite rings of the shaft mechanical seal.
