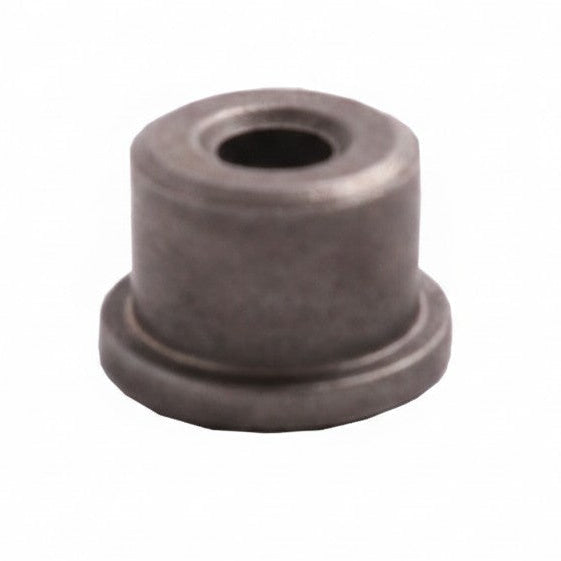

Original Makita Jigsaw Bushing 257683-9 (4×10×9 mm)
Original Makita guide bushing (part number 257683-9) — is a high-precision metal component of the reciprocating mechanism (rod) for corded and cordless Makita and Maktec jigsaws. It serves as a supporting guide element that ensures smooth rod movement, reduces play, and prevents premature wear of internal gearbox components during sawing.
3>Key Advantages and Features:- Original OEM Quality: Manufactured from a wear-resistant metal alloy at the Makita factory with strict adherence to all tolerances and geometry.
- Minimization of Play: Provides precise fixation and guidance of the rod, maintaining accuracy and straightness of the cut without the saw blade drifting.
- Durability and Increased Service Life: Features high resistance to friction and mechanical loads during intensive sawing tasks.
- Ease of Replacement: Fully matches the standard mounting dimensions, eliminating the need for modifications during repair.
Compatibility and Application:
- Makita Corded Jigsaws: 4322, 4323, 4324, 4326, 4327, 4328, 4329.
- Makita Cordless Jigsaws: JV100D, JV100DZ.
- Maktec Jigsaws: MT43, MT431.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | Guide Bushing |
| Part Number (Manufacturer Code) | 257683-9 |
| Inner Diameter (d) | 4 mm |
| Outer Diameter (D) | 10 mm |
| Thickness / Height (H) | 9 mm |
| Material | Wear-resistant metal alloy |
| Condition | New, original spare part |
Package Includes:
- Makita 257683-9 Metal Bushing — 1 pc.
Pro Tip: When replacing the bushing, be sure to clean the gearbox housing and rod of sawdust and old grease. Before pressing in or installing the new bushing, apply high-quality branded lubricant for power tool gearboxes to the friction surfaces. This will prevent dry wear and significantly extend the service life of both the rod and the bushing itself.
