Description

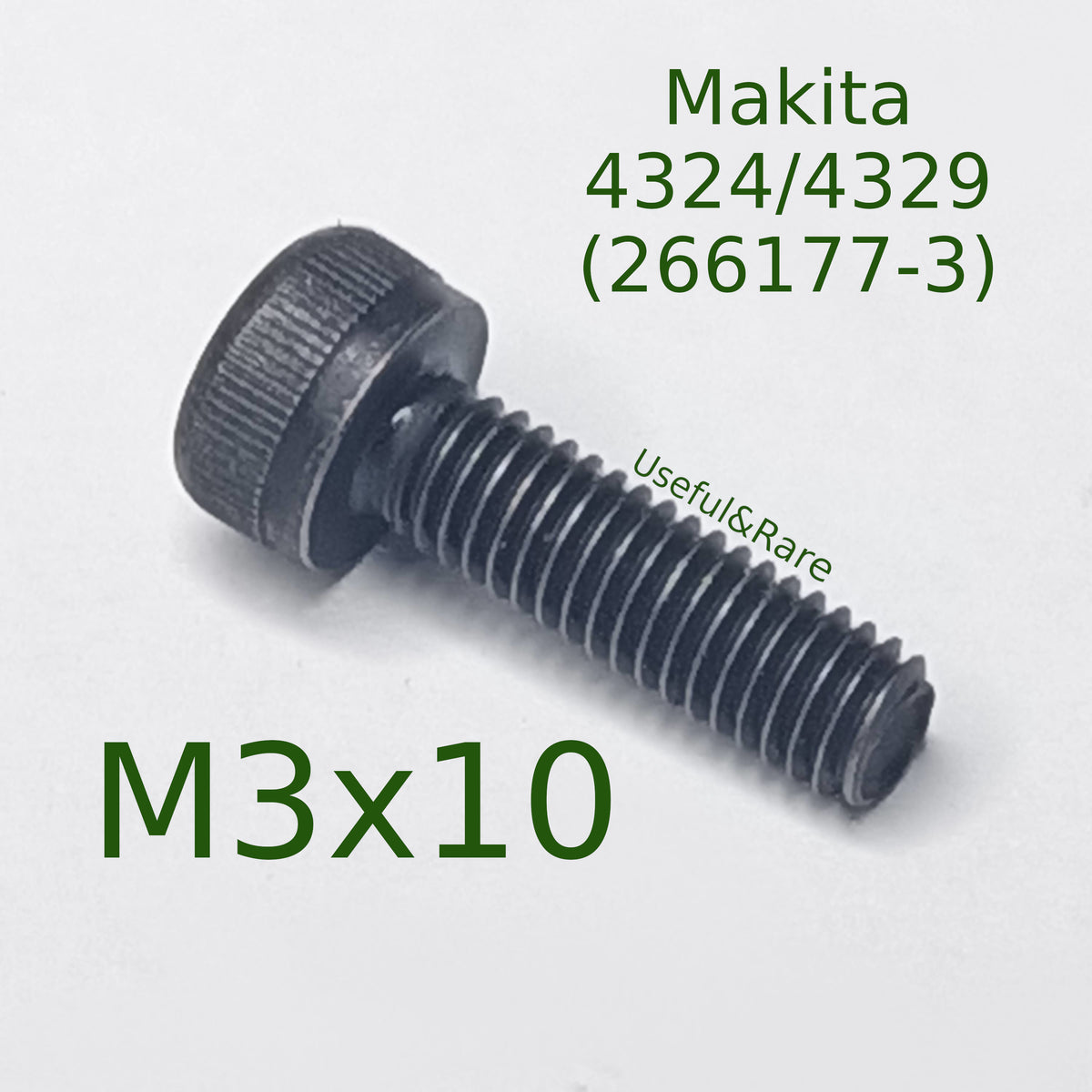

Original Makita Jigsaw Blade Holder Screw M3×10 (266177-3)
Original Makita locking screw (part number 266177-3) with an M3×10 mm thread size is designed for mounting and securely fastening blade clamp mechanisms (blade holders) to the plunger of Makita and Maktec jigsaws. Made from high-strength hardened steel with a protective oxide coating, it ensures resistance to high vibration loads and prevents premature wear of the drive socket.
Key Advantages and Features:
- Original Makita OEM Quality: Full compliance with factory standards for geometric parameters and thread pitch, guaranteeing a precise fit in the plunger without the risk of damaging internal threads.
- Hardened High-Strength Steel: Features high resistance to shearing, stretching, and deformation under constant vibration during cutting.
- Reliable Hex Socket: The internal hex profile allows for the necessary torque application during tightening without the risk of stripping the edges.
- Corrosion Protection: A special black oxide coating protects the fastener from rust caused by moisture and sawdust.
Compatibility and Application:
- Makita Corded Jigsaws: 4322, 4323, 4324, 4326, 4327, 4328, 4329.
- Makita Cordless Jigsaws: JV100D, JV100DZ.
- Maktec Jigsaws: MT43, MT431.
- Purpose: Securing the blade clamp assembly components to the jigsaw plunger.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Part Type | Blade holder mounting / clamping screw |
| Part Number / Manufacturer Code | 266177-3 (M3x10) |
| Manufacturer | Makita (Original) |
| Thread (Diameter) | M3 (3 mm) |
| Thread Length | 10 mm |
| Drive Type (Head) | Internal Hex (HEX) |
| Material | Hardened steel (oxidized) |
| Condition | New original part |
Package Includes:
- Makita M3x10 Screw 266177-3 — 1 pc.
Pro Tip: When installing a new screw, ensure the threaded hole in the plunger or support is completely cleared of old thread locker residue and fine wood or metal shavings. Use a high-quality, undamaged hex key of the correct size. To prevent the screw from loosening due to vibration, it is recommended to apply one drop of removable (blue) thread locker to the threads.
