Description

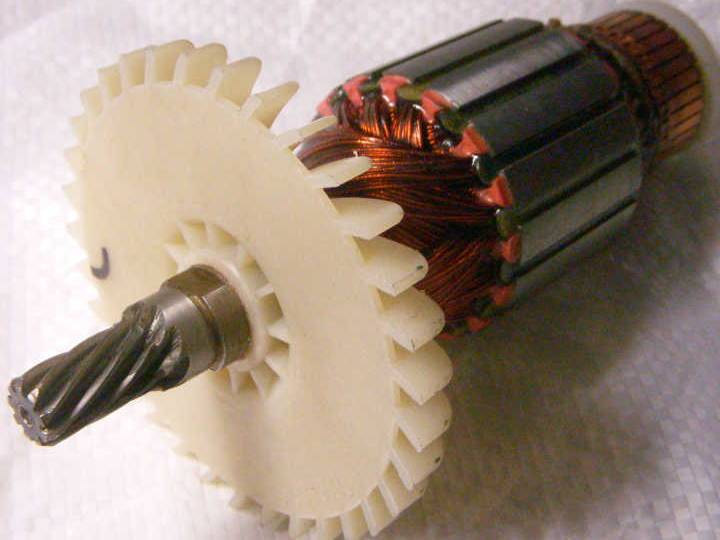

Electric motor armature (rotor) for replacement in circular saw Odwerk TS 1080, Makita LS1040, LS1040F, LH1040, LH1040F, 516718-8, DWT, PowerCraft, Domotec 1600Вт, Einhell KGSZ 300/1, etc.
Armature length 184 mm;
9 teeth to the left;
shaft diameter by teeth 12 mm;
between bearings 15 and 10 mm distance 144 mm,
between cuts (at the fan) 14 mm,
winding diameter 54 mm,
winding frame length 51 mm;
commutator - 36-37 mm
Make sure to check your measurements before ordering!
