Description

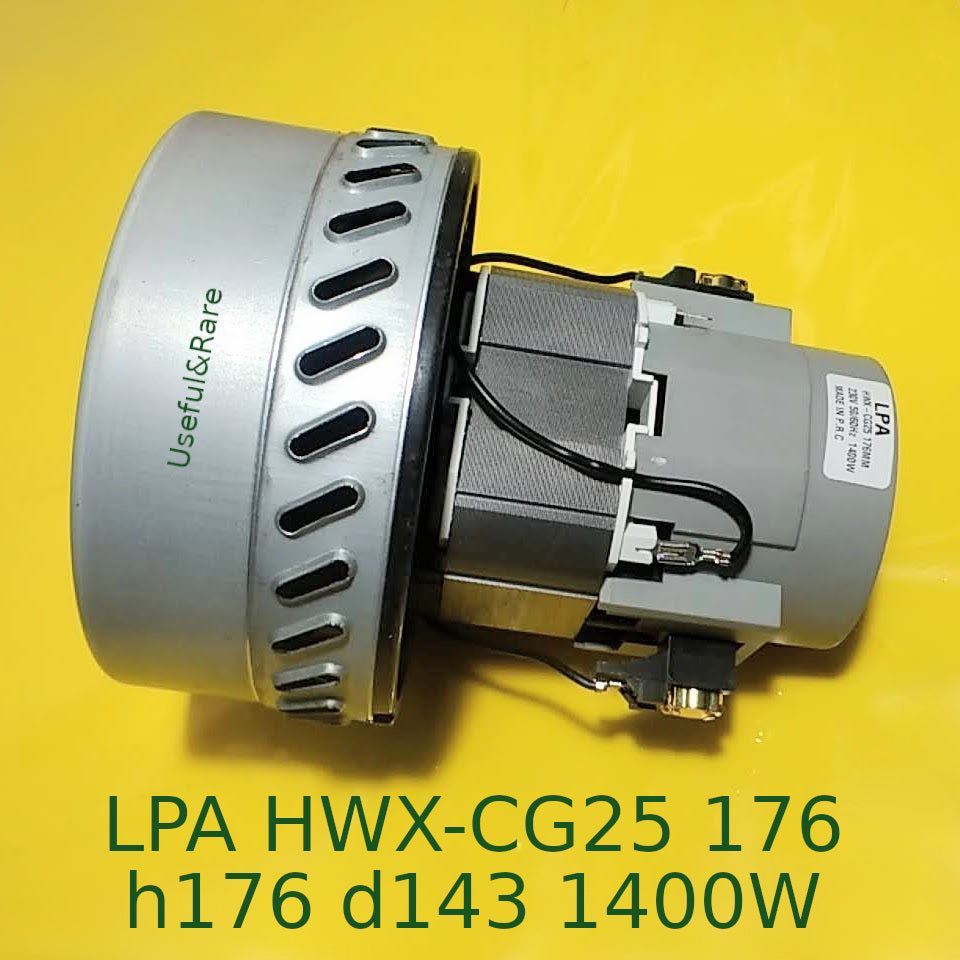

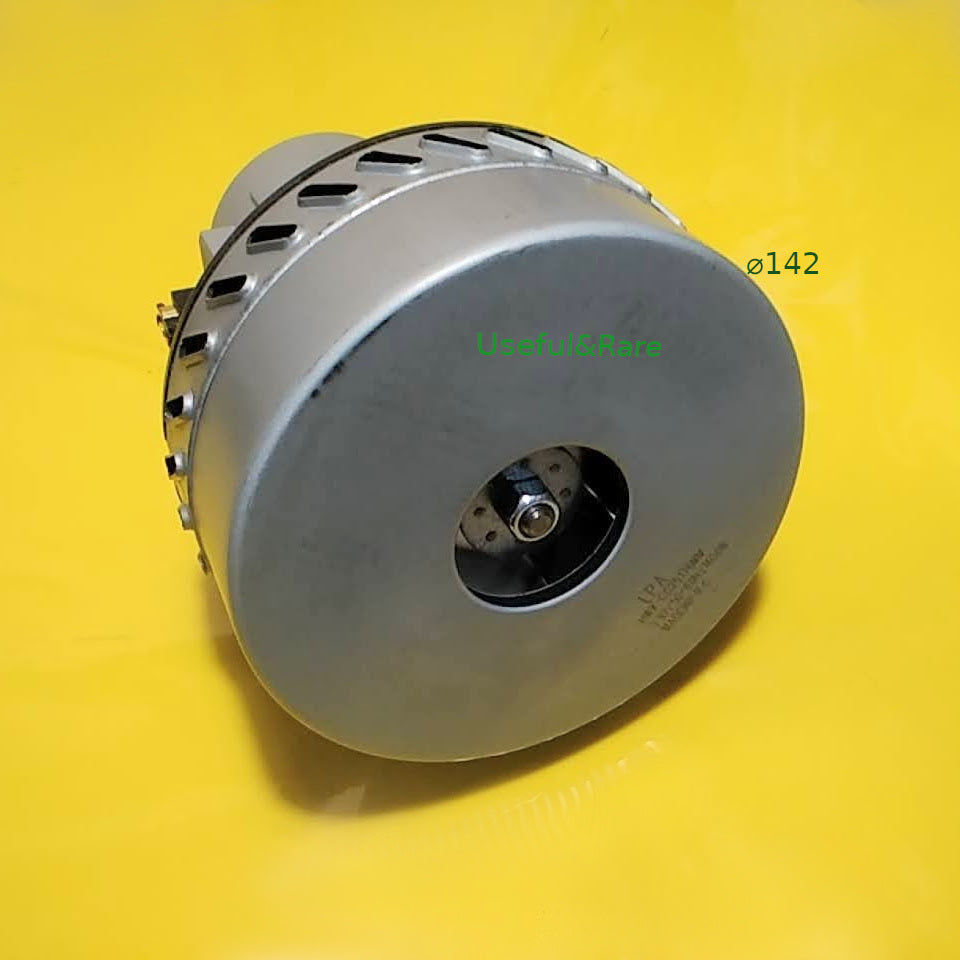

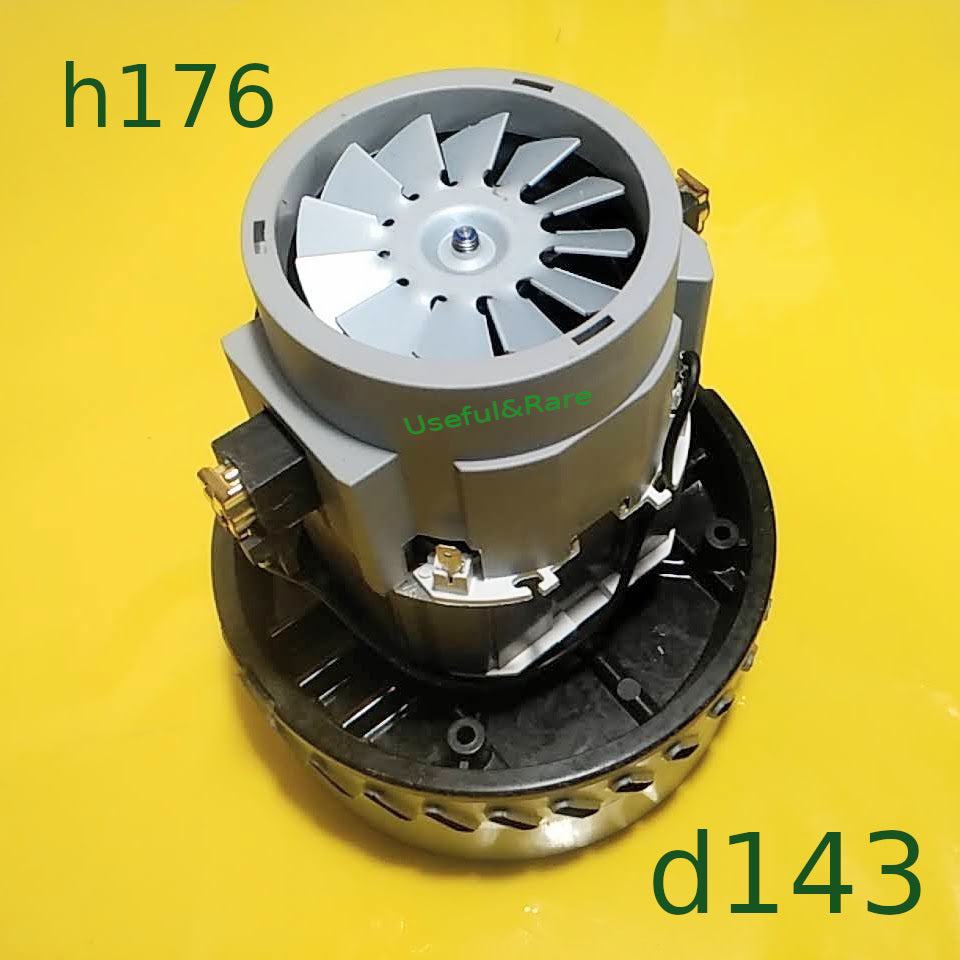

Bypass two-stage electric motor of the peripheral type LPA HWX-CG25 176mm (Ametek 061300521 replacement) with a total height of 176, a diameter of the lower part of the diffuser 143 mm, power 1400W, fastening with 4 self-tapping screws, for replacement in Makita 445x washing vacuum cleaner, Kress NTX1200EA.
Parameters:
| Power | 1400W |
| Overall height | 176 mm |
| Impeller diameter | 143/149 mm |
| Impeller height | 67 mm |
| Turbine bore diameter | 44 mm |
| Top Diameter | 78 mm |
| Distance between brush edges | 123 mm |
| Distance between holes for self-tapping screws | 84 mm |
