Description

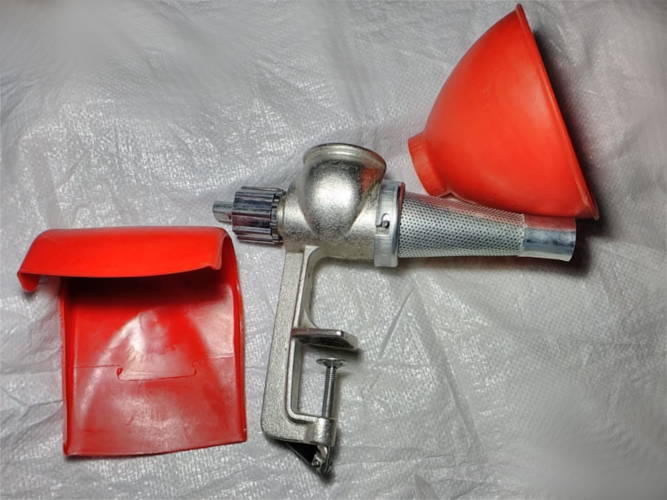

Manual Screw Juicer (Cast Iron / Aluminum) Motor Sich SBCH-1 Type (for Tomatoes, Berries, and Grapes)
Manual screw-type juicer (analogous to Motor Sich SBCH-1) is designed for direct extraction of juice with pulp from tomatoes, soft berries (grapes, currants, strawberries, pitted cherries), and soft fruits. The design operates on the meat grinder principle: a conical screw grinds the raw material and squeezes the juice through a perforated mesh cone, while the pulp is automatically discharged through an adjustable nozzle.
Key Advantages and Features:
- High extraction rate: The screw mechanism ensures efficient juice extraction (up to 80–85% of tomato weight) with a minimum amount of wet pulp.
- Reliable metal body: Made of durable cast metal (cast iron / aluminum alloy) with a protective galvanic coating resistant to corrosion and organic acids.
- Juice thickness adjustment: A screw regulator at the end of the mesh allows you to change the degree of pulp extraction and the moisture of the output.
- Countertop protection: A reliable clamp with a rubber pad allows the juicer to be firmly fixed to the table without damaging the surface.
- Full autonomy: Does not require connection to the power grid, making it ideal for use at the dacha, in field conditions, and for home canning.
- Protective trays included: Equipped with a removable loading hopper and a plastic guide tray to prevent juice splashing.
Applications:
- Preparation of homemade tomato juice, paste, and sauces.
- Extracting juice from grapes, berries, soft apple varieties, and citrus fruits.
- Large-scale juice preparation for winter.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Part / Device Type | Manual screw juicer |
| Construction Type | Motor Sich SBCH-1 type |
| Body and Screw Material | Cast iron / food-grade aluminum alloy |
| Mounting Type | Clamp with screw fastener (for tables up to 40 mm) |
| Hopper and Tray Material | Impact-resistant food-grade plastic |
| Juice Yield (Tomatoes) | At least 70–82% |
| Overall Dimensions | ~ 370 x 180 x 330 mm |
| Assembled Weight | 1.8 – 2.2 kg |
Package Contents:
- Juicer body with conical mesh and screw — 1 pc.
- Handle with grip and fastening screw — 1 pc.
- Plastic loading hopper (funnel) — 1 pc.
- Plastic juice drainage tray — 1 pc.
- Pulp extraction adjustment screw — 1 pc.
- Protective rubber gasket for the clamp — 1 pc.
