Description

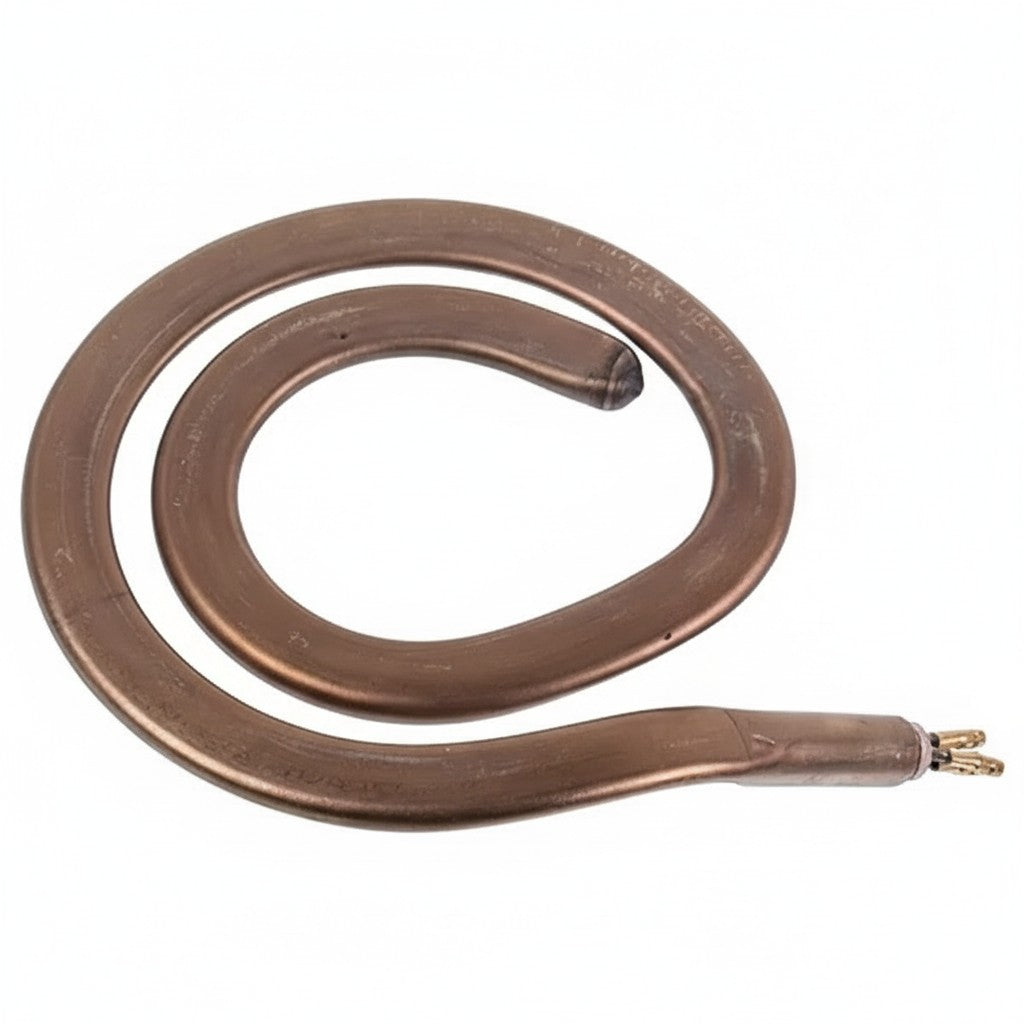

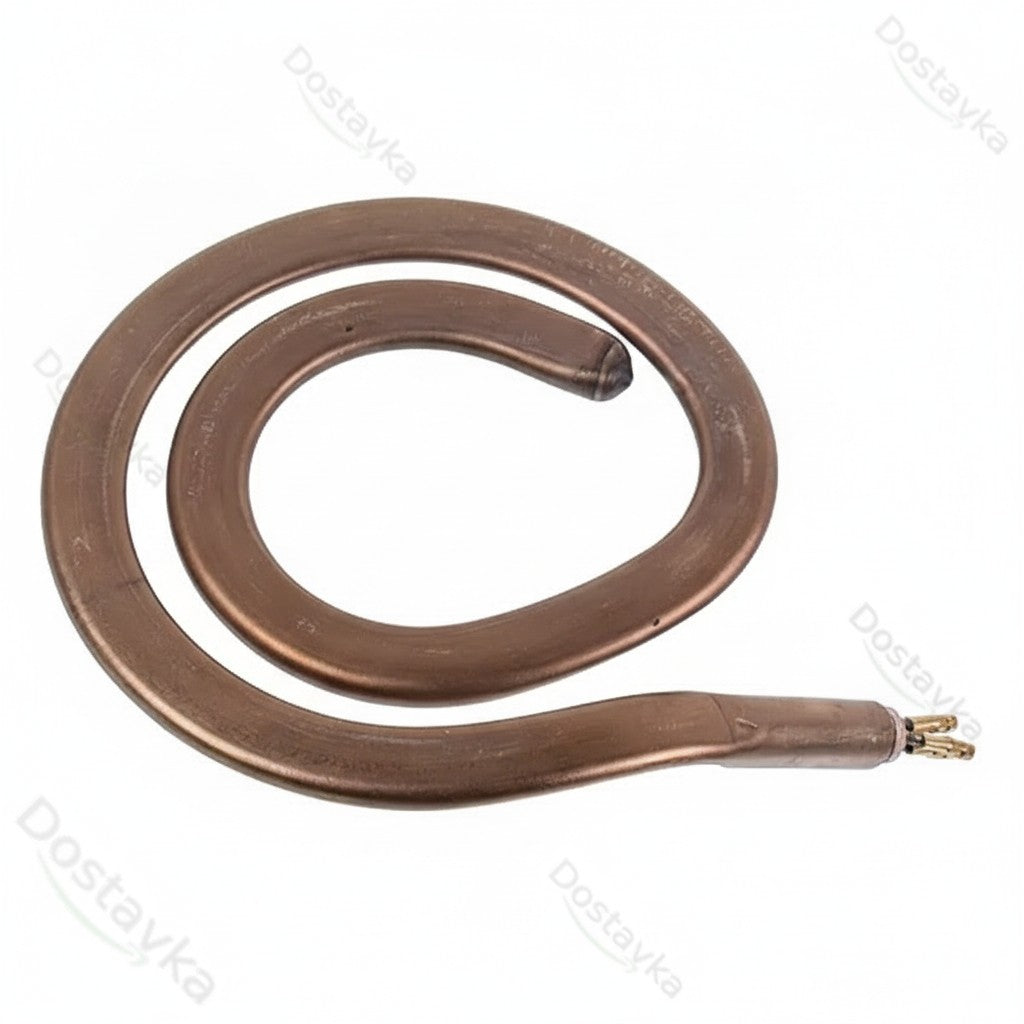

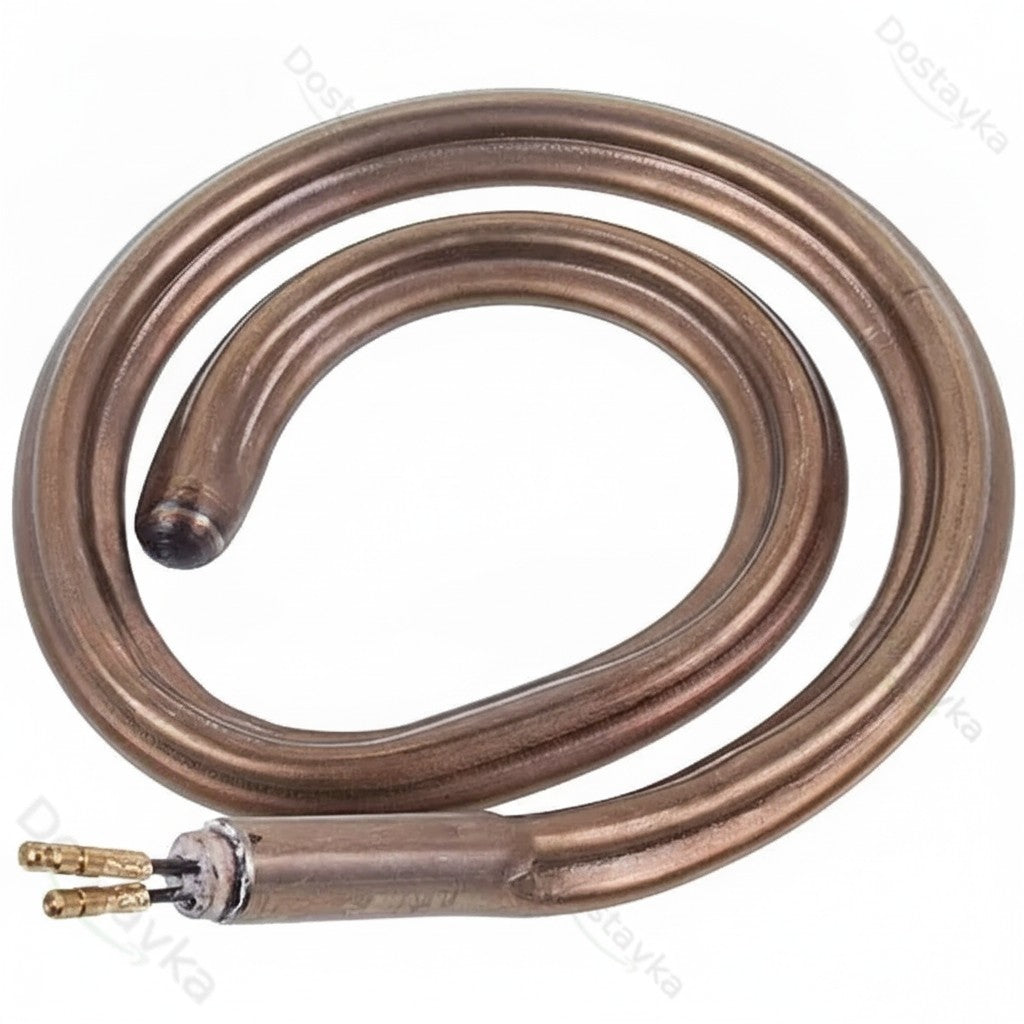

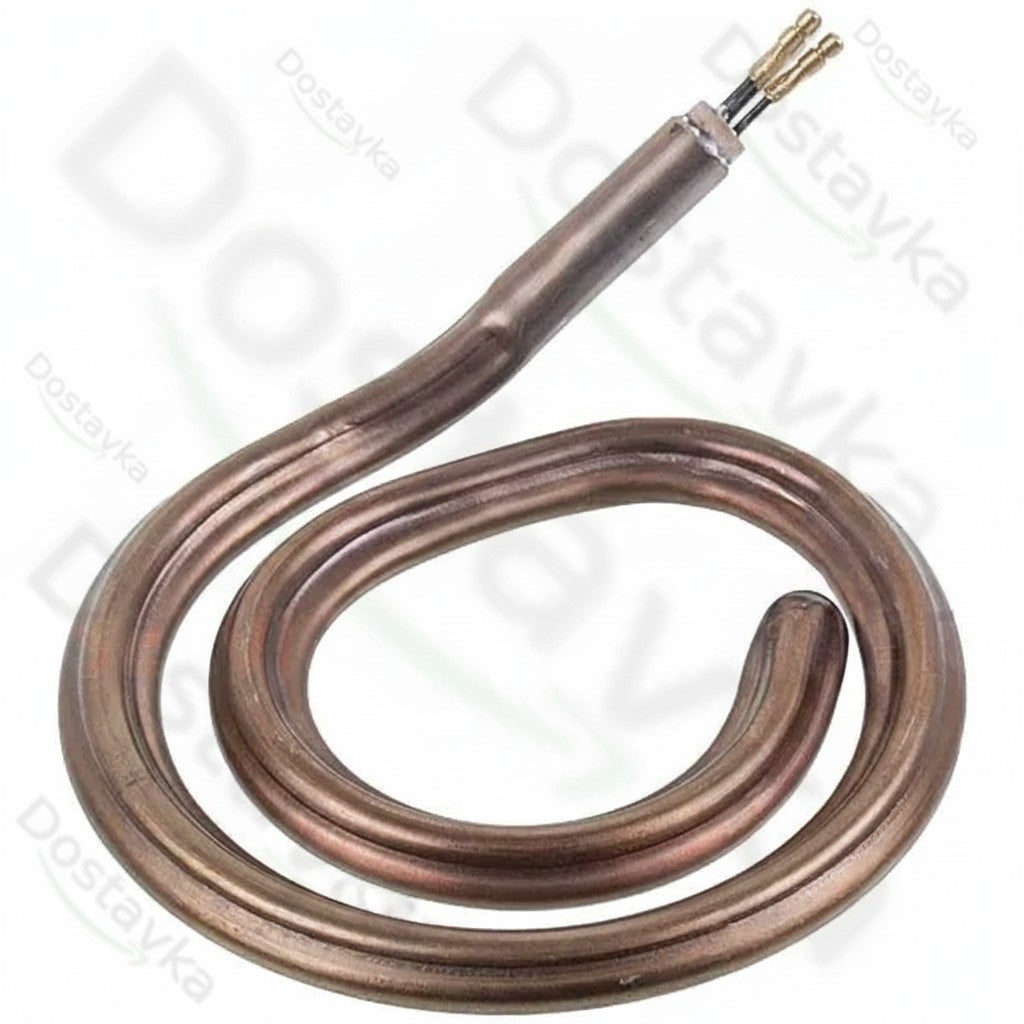

Spiral Heating Element for Electric Stove 1000W ∅145 mm (3 pins)
Tubular electric heater (spiral-type heating element) with a power of 1000 W (1.0 kW) with a diameter of 145 mm is designed for the assembly and repair of tabletop and stationary household electric stoves. The heating element is made in the form of a flat single-ended spiral with three contact terminals, allowing it to be connected via a multi-position power switch for stepped adjustment of the heating level (low, medium, and maximum heat).
Key Advantages and Features:
- Stepped power adjustment: The presence of 3 contact terminals ensures the operation of two internal nichrome spirals in different combinations (series, individual, or parallel), guaranteeing a smooth choice of temperature mode.
- Fast heating and high heat dissipation: The open spiral shape provides direct contact with the bottom of the cookware and instant reach of the operating temperature mode with minimal heat loss.
- Resistance to thermal loads: The heat-resistant metal sheath and dense periclase filler (magnesium oxide) inside the tube prevent electrical breakdown to the casing and withstand multiple heating/cooling cycles.
- Installation versatility: The single-ended terminal facilitates the installation of the heating element into the stamped mounting bowls and reflectors of most domestic electric stoves.
Compatibility and Application:
Used in tabletop single and double burner stoves, as well as in stationary electric stoves with an oven and a burner mounting diameter of 145 mm:

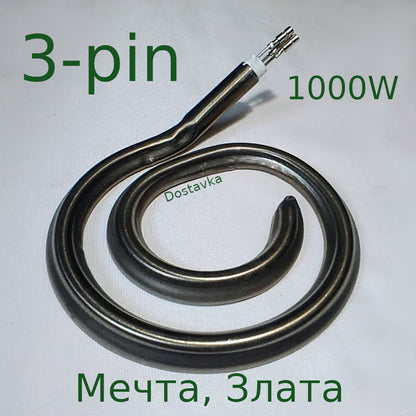

- Mechta (Mriya): classic models 15M, 29, 111T, 112T, 211T, 212T, etc.
- Elna: tabletop stoves Elna-01N, Elna-02N, Elna-200N and modifications with a narrow heating element.
- Zlata: models 114T, 214T and similar with an open-type heating element.
- Lemira: EPCh-1, EPT-1, EPT-2 (models with a tubular spiral heater).
- Other manufacturers: Mayak, Termia, Pskova, Elekta and any stoves with a mounting seat for a ∅145 mm spiral and 3-pin connection.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Part type | Tubular electric heating element (spiral burner) |
| Heating element shape | Flat spiral (single-ended) |
| Rated power | 1000 W (1.0 kW) |
| Rated voltage | 220–230 V |
| Outer spiral diameter (D) | 145 mm |

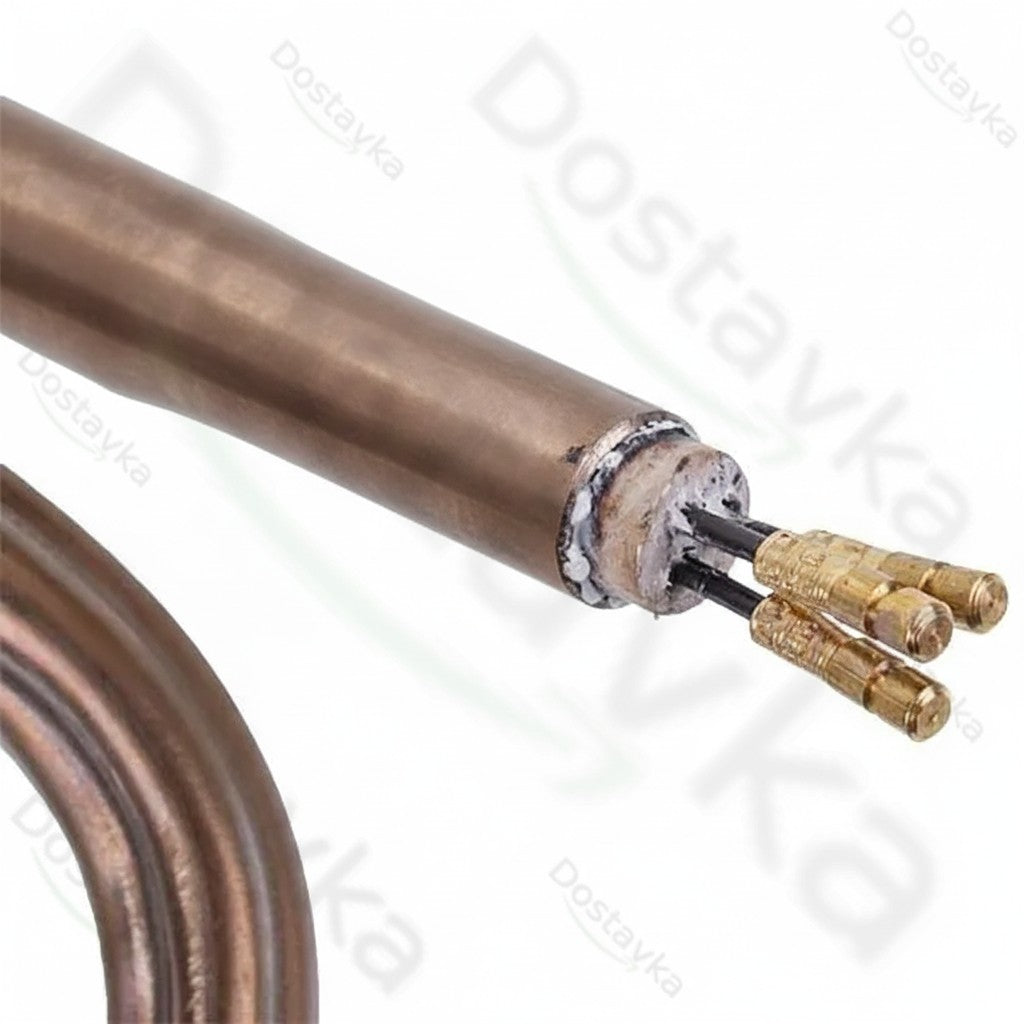

| Number of contact terminals | 3 pins (pin terminals) |
| Connection type | For stepped power switch (2 spirals) |
| Tube material | Heat-resistant corrosion-resistant metal/alloy |
| Flange / mounting plate | Without flange (direct fit into reflector) |
| Manufacturer country | Ukraine |
| Condition | New |
Package Includes:
- Spiral heating element for burner 1000W ∅145 mm (3 pins) — 1 pc.
Technician's tip: Before installing a new heating element, be sure to clean the bowl o
