Nasyosy+NPO Pump Impeller DSP-H #2 (d13.5x103, h4.5, A30, 2 Lugs)

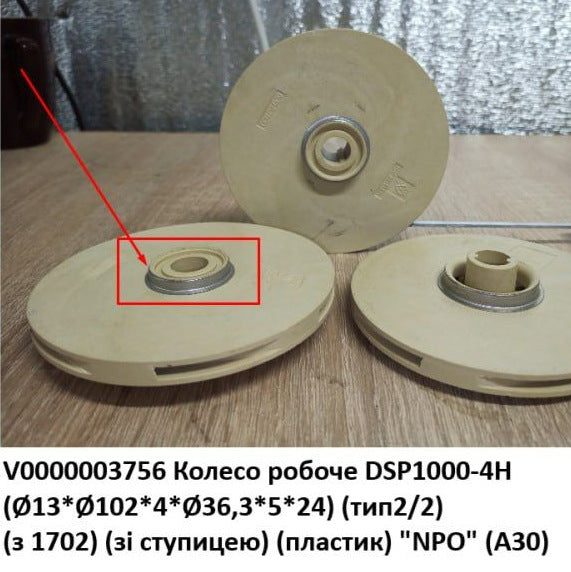

Impeller for multistage pump section Sterwins SP1100M, Nasosy+ NPO/ Sprut DSP1000-4H (Ø13*Ø103*4*Ø34*5*25) (type 2/2) (from batch 1702) (with protruding hub) (plastic) NPO (A30), Variolux type 1300 GP 5 Innox

Main parameters

• Inner diameter 13 mm

• Two internal lugs for shaft fixation

• Outer diameter 102 mm

• Outer hub diameter 34 mm

• Total height 25 mm
• Distance between blade discs 4.5 mm

• Blade disc height 8 mm

• Radial protrusion (hub) 4.5 mm on the back side
