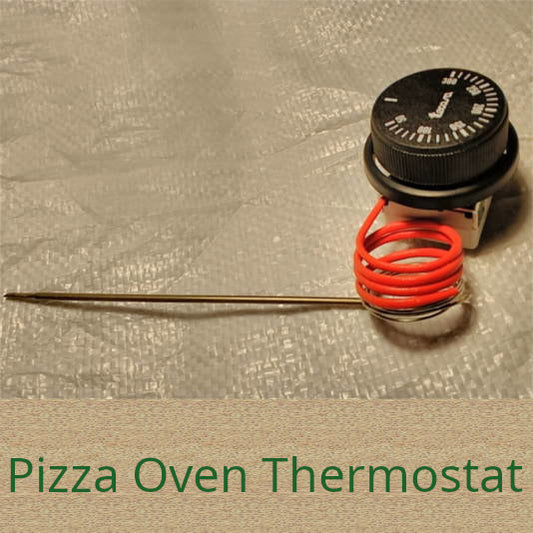

Nord, Mechta Electric Stove Thermostat (50-320°C, 16-20A, 3-pin)

High-quality (European) thermostat 50-320°C (16-20 Amp) (MMG HU-30-M) for typical domestic electric stoves IKEA / Whirlpool 201.822.97 18535, Amica, Mechta 221Ch, Mechta 8 oven stove (type T-301), Mechta 9, 15M, NORD 4.00, Nord PGE 510.03 with a third additional (reverse) terminal for connecting a fan, light bulb, alarm, etc.

Can be installed instead of EGO 55.13052.108, 55.17062.220, Indesit C00035295, COK204ID, 20A (50-320°C) on Gorenje cooktops.

Thermostat parameters

• Capillary tube bulb length 150 mm

• Temperature control range - 50-320 °C

• Sensing bulb diameter - Ø3 mm

• Housing dimensions (±1 mm) - 45x34x27 mm

• Mounting - 4 holes with M4 thread (28 mm center-to-center distance)

• Electrical connection 3 pins (2+1). The third contact is reverse polarity for a fan or backlight
