NPO CPm158X Surface Water Pump Flange Plate (Cast Iron) (A59) (3 Bolts)

Central cast iron connecting support for surface water pump NPO CPm158X (cast iron) (A59). Connects and holds the motor and pump chamber together.

Specifications

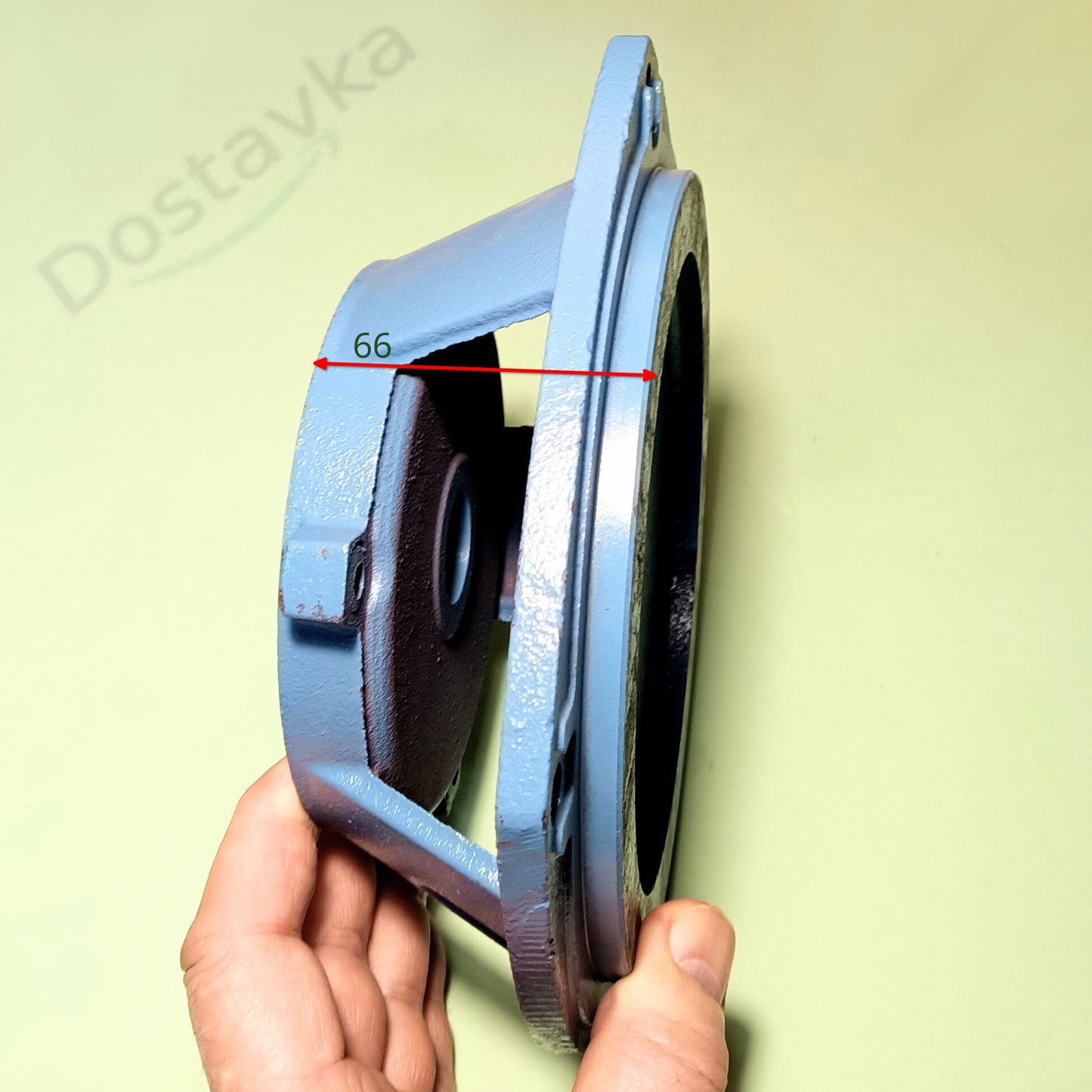

• Total height (thickness) 66 mm
• Mechanical seal stationary seat 28 mm (usually a ceramic ring in rubber)
• Bearing seat 35 mm

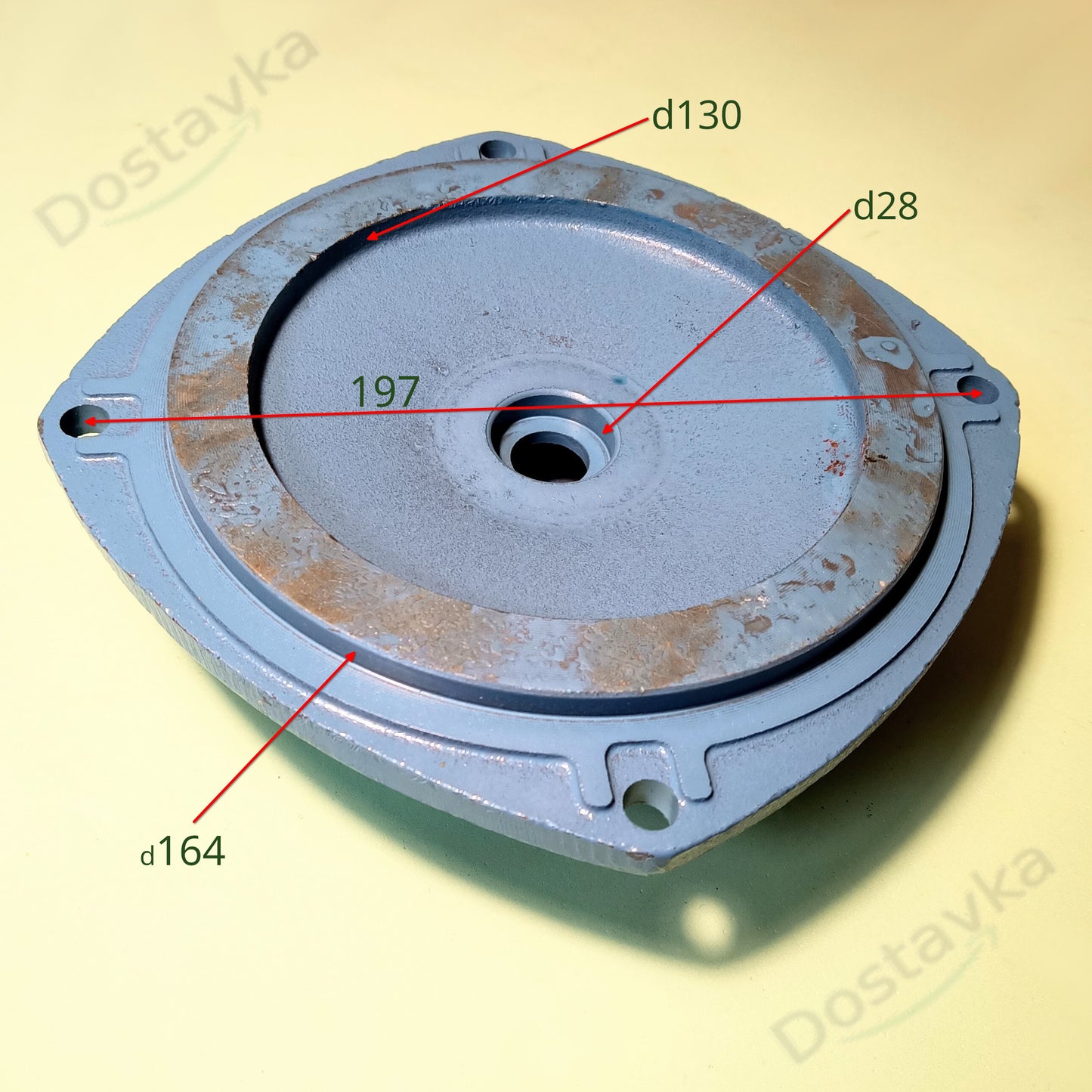

• Diagonal center-to-center distance *197 mm
• Motor connection with 3 bolts
• Diagonal center-to-center distance of motor mounts *110 mm
• Inner diameter of the working chamber 130 mm
• Outer diameter of the flat mounting ring 164 mm
