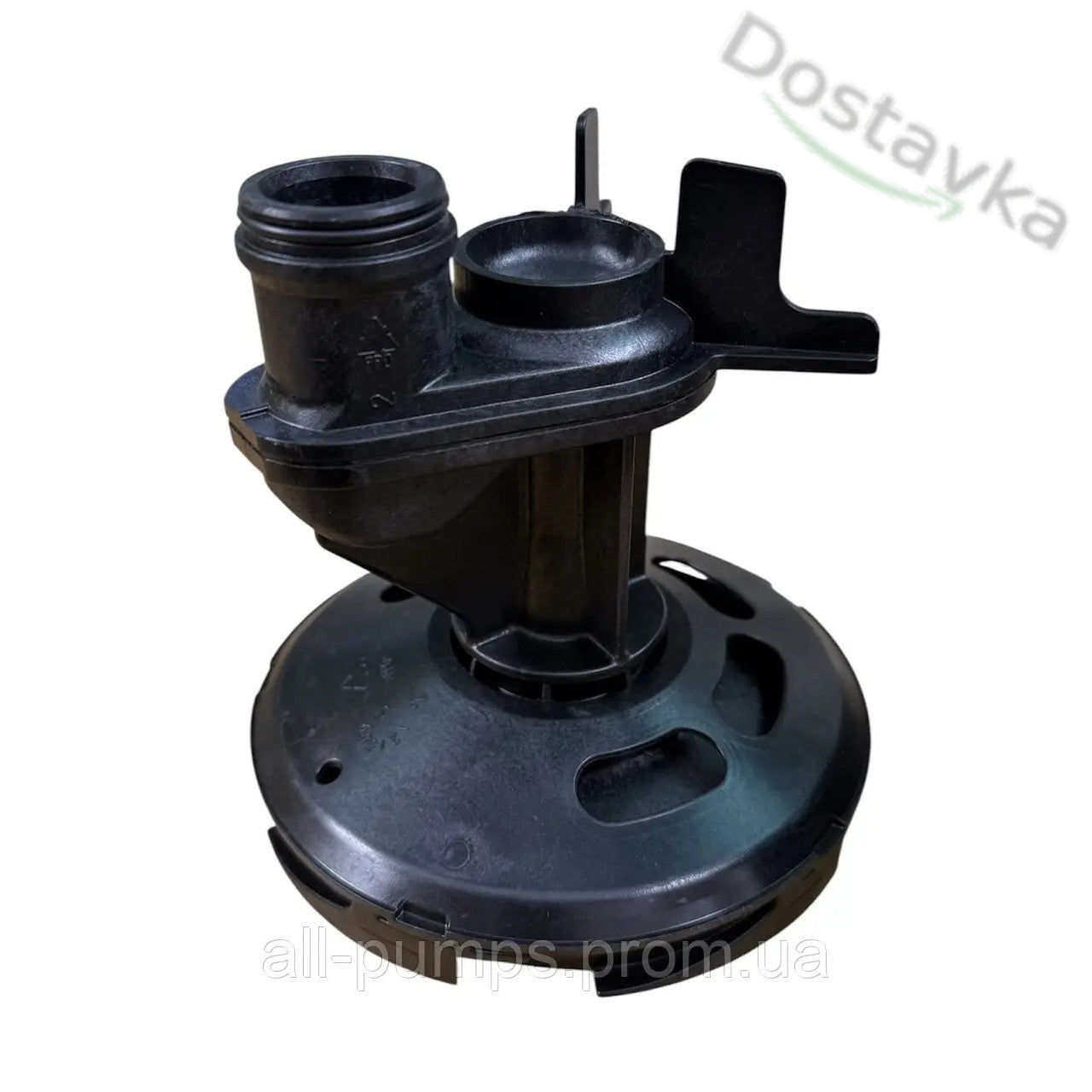

Pedrollo JCR 1C-BA (1210596) water pump Diffuser with Venturi tube

Diffuser with Venturi tube for the Pedrollo JCR 1C-BA self-priming water pump (1210596). Diffuser diameter: 142 mm.

Suitable for models

Pedrollo JCRm 1C, Pedrollo JCR 1C Pedrollo JCRm 1B, Pedrollo JCR 1B Pedrollo JCRm 1A, Pedrollo JCR 1A

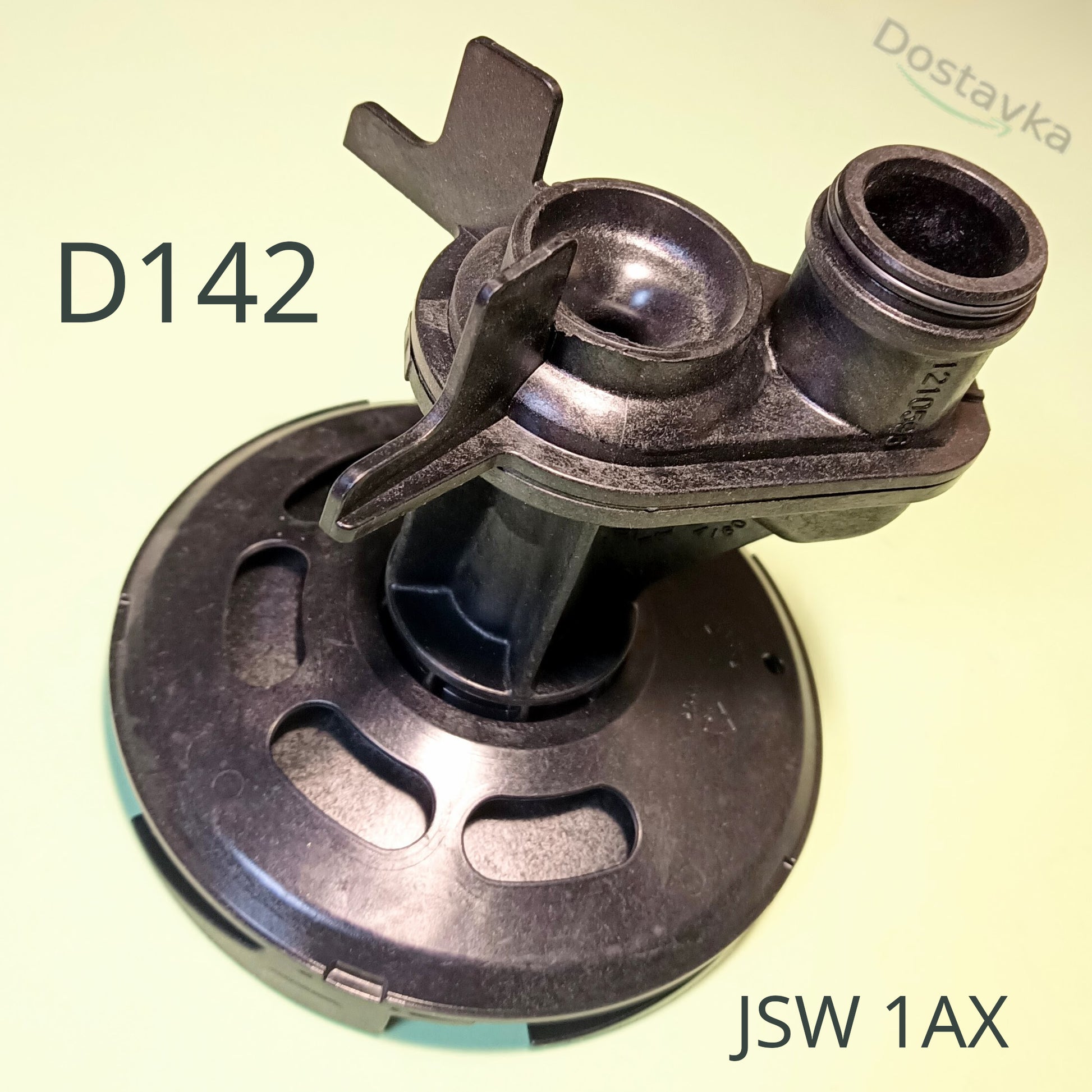

Overall diffuser outer diameter: ≈ 142 mm
Height:
Diffuser: ~40 mm
Ventilation tubes: ~75 mm
Overall assembled height: ~130 mm

Pipes:
Ventures – for suction diameter ≈ 33 mm

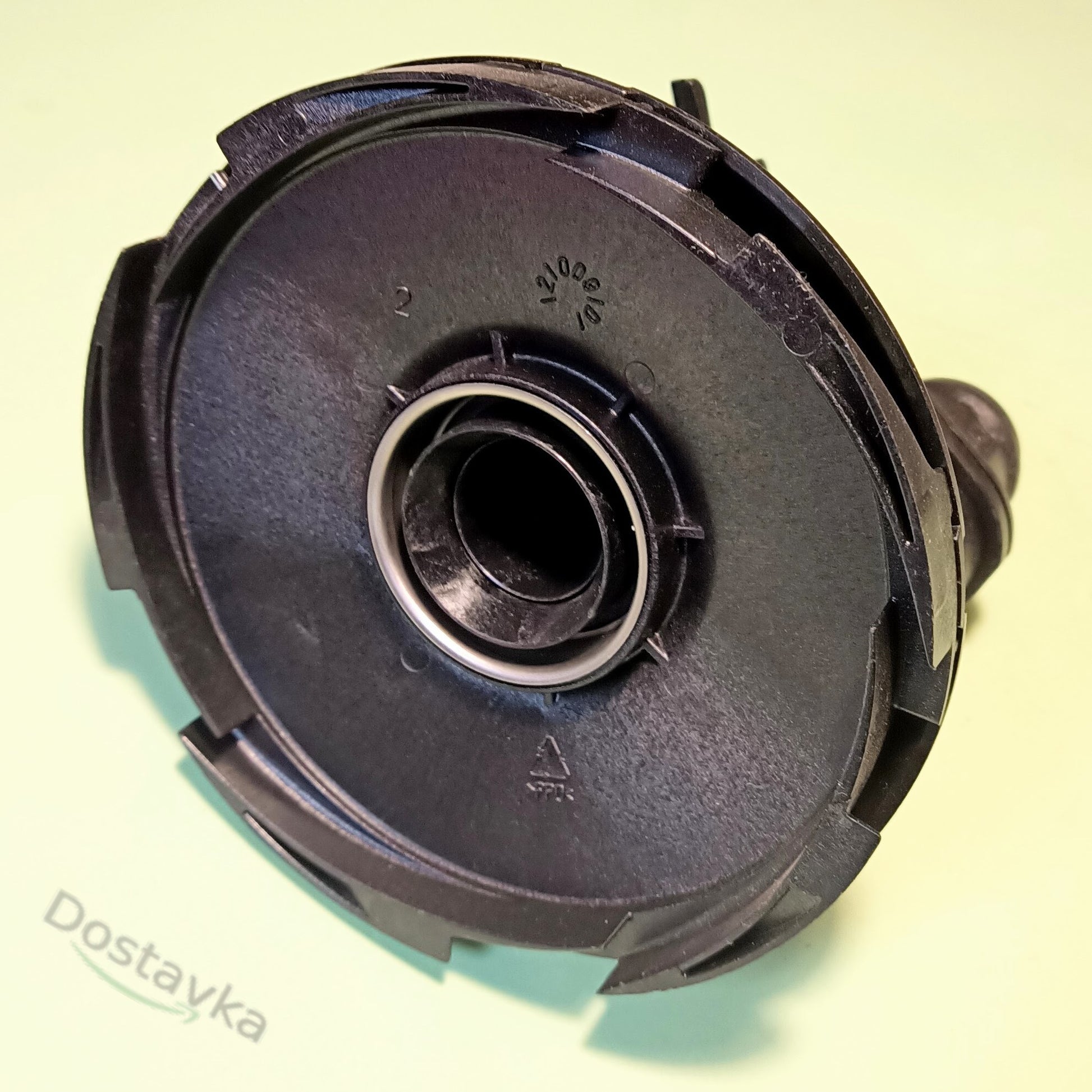

Diffuser - internal Ø ≈ 122 mm, external Ø ≈ 142 mm
