Pedrollo Pump Diffuser JSWm 2CX, JSWm 2AX (135mm wheel, 43mm suction)

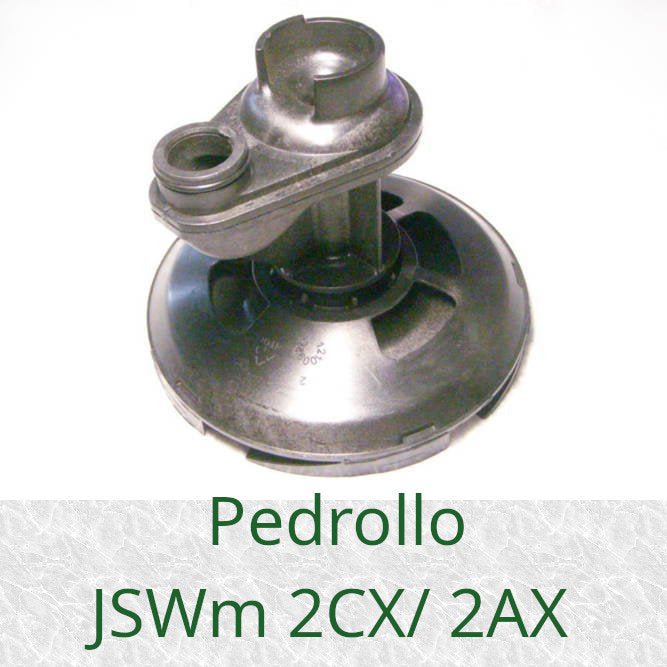

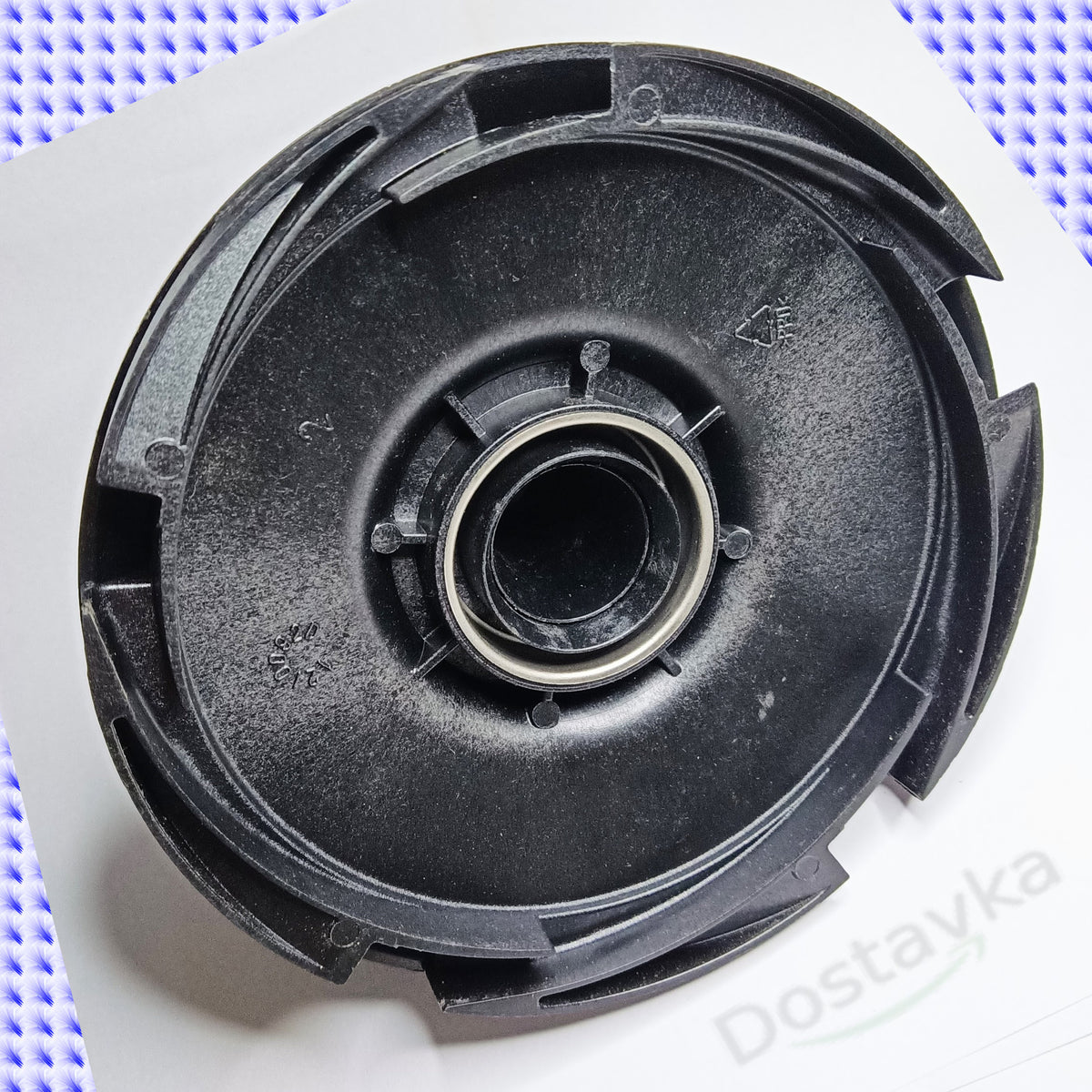

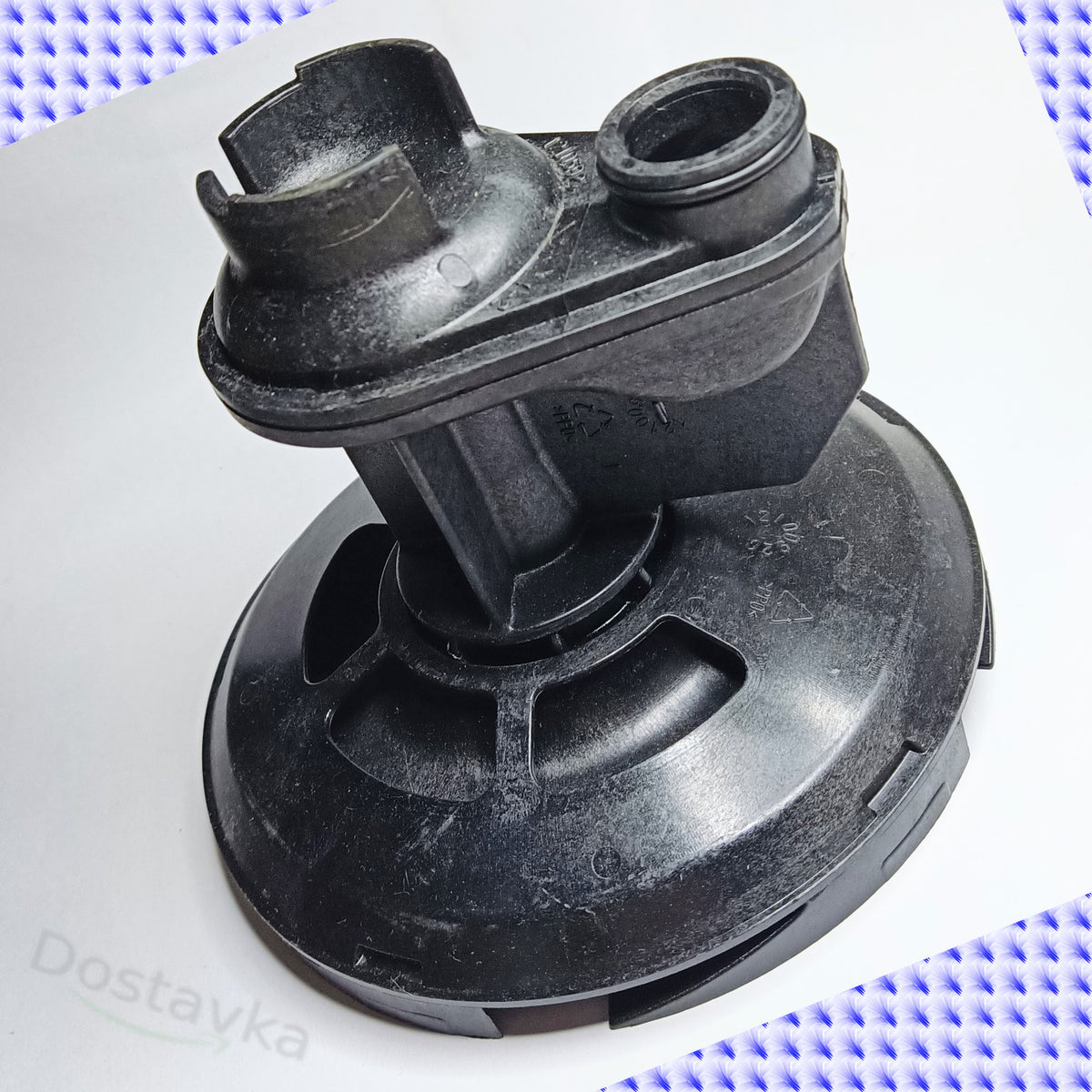

Original Diffuser with Venturi Tube for Pedrollo JSWm 2CX / 2AX Pump (for 135 mm Impeller)

Original diffuser assembly with nozzle and Venturi tube — this is the central hydraulic unit of the Pedrollo JSW 2 series self-priming pumps and pumping stations. The part performs the function of converting the kinetic energy of the rotating water flow from the impeller into static pressure, and also provides an ejection effect for stable self-priming from depths of up to 9 meters and the removal of air locks from the system.

Key Advantages and Features:

• Original Pedrollo OEM: Manufactured at the factory in Italy in strict accordance with the manufacturer's hydrodynamic tolerances, which guarantees factory pressure and performance parameters.
• High-tech Noryl (PPO) Polymer: The material is resistant to hydro-abrasive wear from small sand particles, cavitation loads, temperature changes, and corrosion.
• Monolithic Hydraulic Unit: The optimized internal profile of the diffuser channels and the geometry of the Venturi nozzle ensure maximum efficiency of the pump end without turbulence or parasitic hydraulic losses.
• Fitment for Increased Diameter Impeller: Designed for a standard impeller with a diameter of 135 mm and a wide suction neck of 43 mm.

Compatibility and Application:

Used in Pedrollo JSW 2 generation surface centrifugal self-priming pumps and water supply stations:

• Single-phase models (220 V): Pedrollo JSWm 2AX, Pedrollo JSWm 2BX, Pedrollo JSWm 2CX.
• Three-phase models (380 V): Pedrollo JSW 2AX, Pedrollo JSW 2BX, Pedrollo JSW 2CX.
• Pumping stations: Hydrofresh based on JSW 2 series pumps.

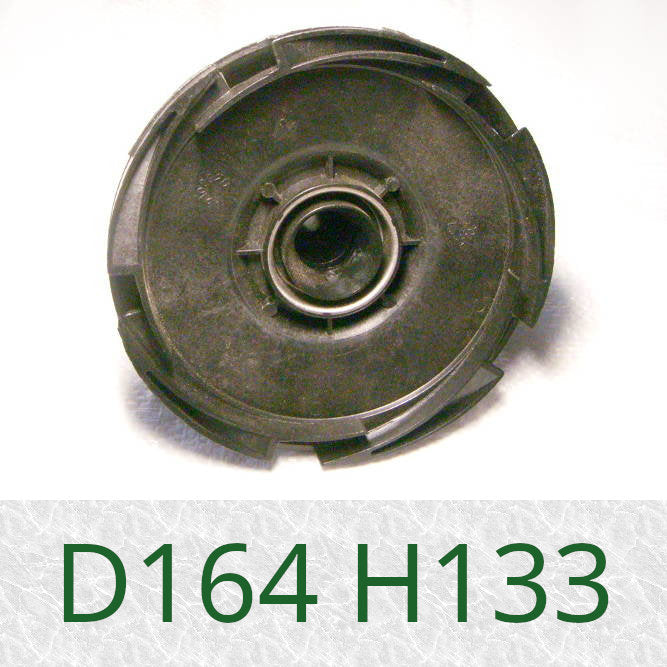

• Analogs of other brands: Self-priming pumps of other brands with a complete match of geometric fitment parameters (D=164 mm, H=133 mm, nozzle pipe 30 mm, impeller chamber diameter for 135 mm).

Technical Specifications:

Package Includes:

1. Diffuser with Venturi tube Pedrollo JSWm 2CX/2AX — 1 pc.

Technician's Tip: Before ordering, be sure to measure the diameter of your old impeller (should be 135 mm) and the diameter of its suction neck (43 mm), as the JSW 1 and JSW 2 series use diffusers of different sizes. When installing a new diffuser, check the condition of the rubber O-ring on the Venturi tube pipe (30 mm): damage or misalignment of this ring will lead to pressure release from the discharge chamber back into the suction chamber, causing the pump to lose its ability to lift water. Before the first start of the pump, be sure to fill the hydraulic body with water through the fill plug until the air is completely displaced.
