Description

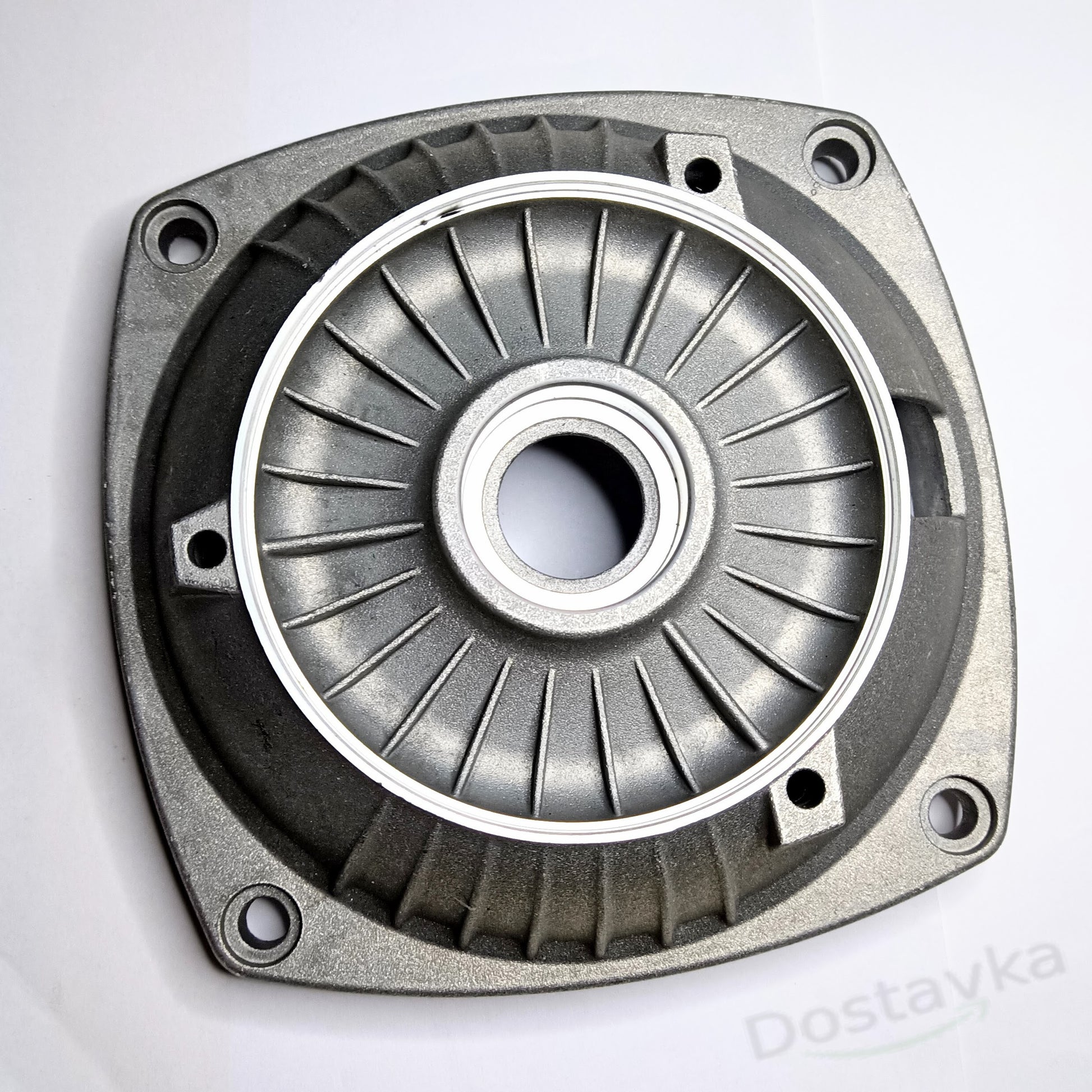

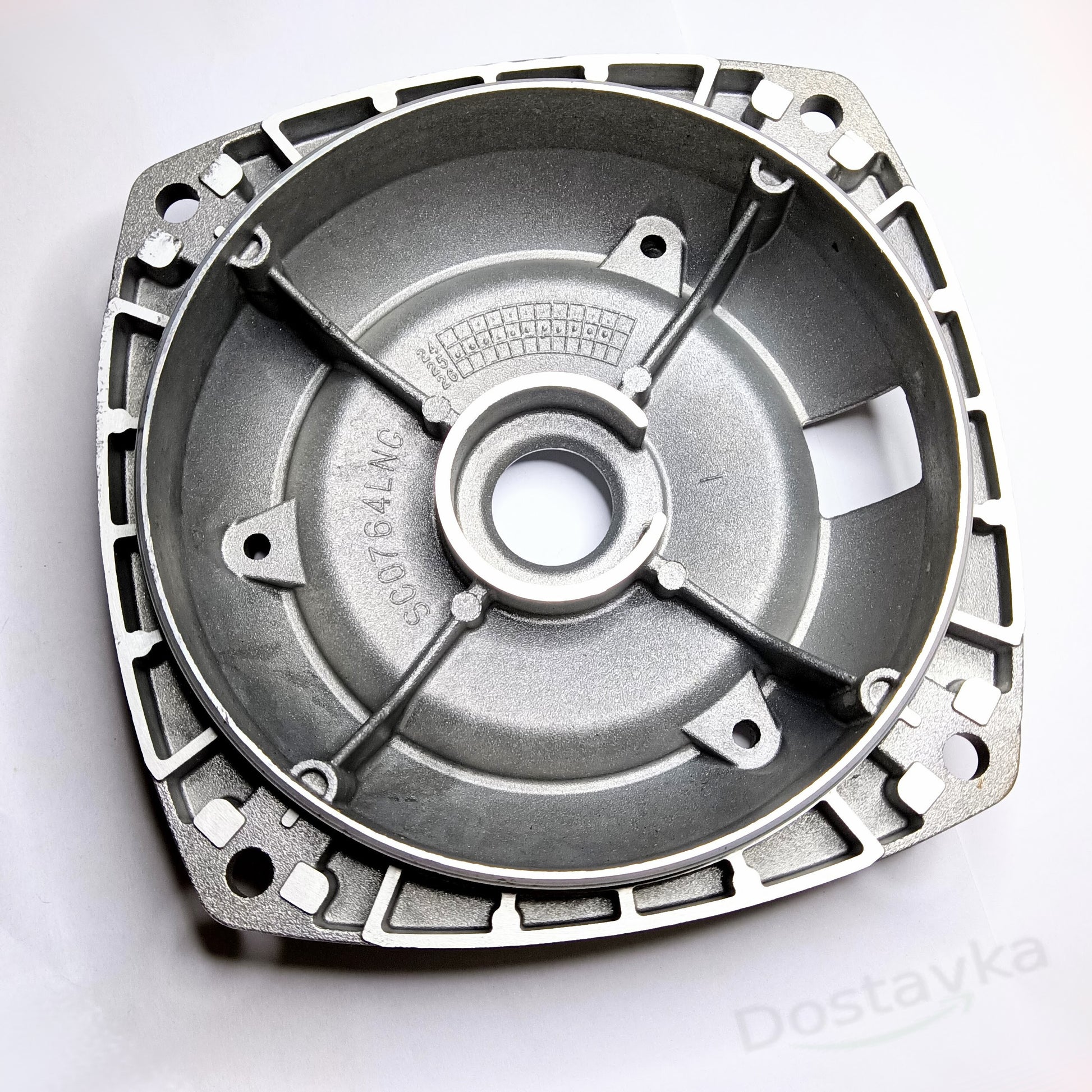

Original central legless bracket SCO76LN/ SCO764LNС for Italian water pump Pedrollo JSWm 15M, MX, 2AX, Optima JET 100 booster pump,
Installation dimensions
- Diagonal distance between mounting holes ~191 mm (center-to-center) to the pump chamber,
- Center-to-center distance to the motor 105 mm (from the 3-bolt side),
- Total bracket height *56 mm
- Internal connection diameter for the motor stator (spigot) - 116 mm
- Bearing seat diameter - 40 mm, (6203)
- External connection diameter to the pump chamber 162 mm (for the deflector)
Fits models:
Pedrollo JSW 10-15 MX, Pedrollo JSWm 15MX, Pedrollo JSWm 2AX
