Philips Electric Shaver Motor HQ662, HQ664, HQ665 (1.2-2.4V-3.7V)

Electric shaver motor for Philips HQ-6675/16 (and others), Novy Kharkov 2500, 7500, case size 20(22)*26, length 26 mm, compatible with new Berdsk electric shaver models.
DC 1.2V motor fits models HQ662 HQ664 HQ665 HQ686 HQ5812 HQ5824 HQ5813 980

Suitable for use in telemechanics systems

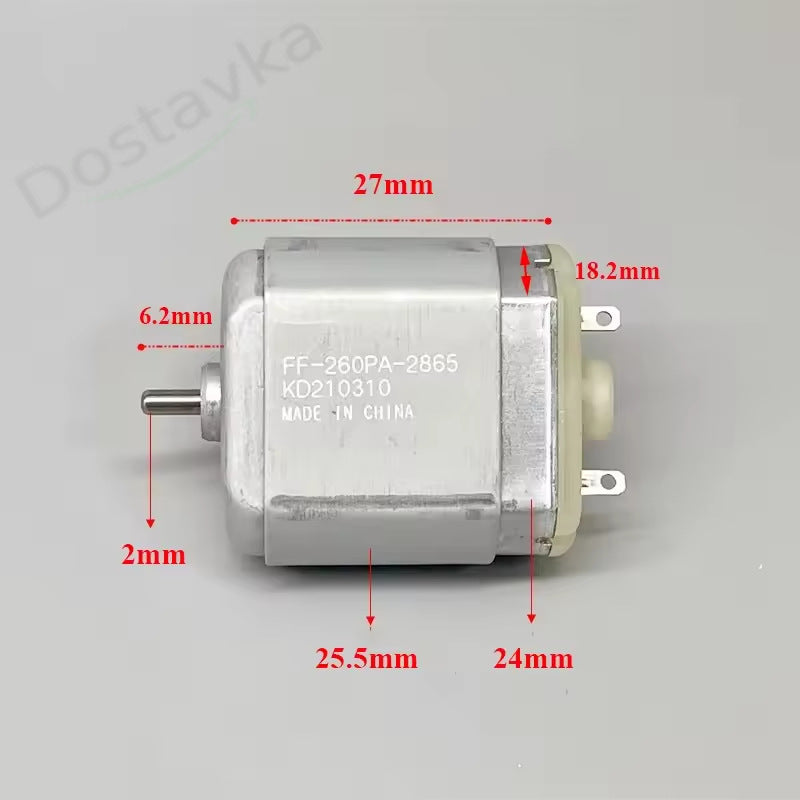

Micro DC electric motor Mabuchi FF-260PA-2865 DC 2.4V–3.7V (260 type, flat)

Compact brushed micro electric motor Mabuchi FF-260PA-2865 from the world's leading manufacturer Mabuchi Motor. It belongs to the flat motor type (Flat Motor 260) with metal brushes. It features high build quality, low noise, stable RPM, and efficient power consumption. Widely used for repairing electric shavers, trimmers, hair clippers, as well as in modeling, drones, children's toys, and DIY projects.

Key Advantages and Features:

• Original Mabuchi Quality: A Japanese brand guaranteeing the reliability of the commutator assembly and long-term durability.
• Compact Flat Profile (18.2 mm): Allows the motor to be installed in the narrow housings of portable devices and equipment.
• Wide Operating Range (2.4V–3.7V): Optimally adapted for operation from one or two Ni-MH / Ni-Cd batteries, as well as from a single Li-Ion (3.7V) cell.
• High RPM at Low Current: Reaches speeds up to 10,300 RPM with minimal no-load current consumption (only 145 mA at 3.7V).

Application Areas:

• Household Appliances: Electric shavers, epilators, beard and nose trimmers, lint removers.
• Modeling and Toys: Radio-controlled models, children's toys, slot cars, robotics.
• DIY Projects: Homemade mini-drills, fans, engravers, and automated mechanisms.

Technical Specifications:

Operating Parameters (Test Data):

• At DC 2.4V: No-load current — 118 mA, Speed — 6,600 RPM.
• At DC 3.0V: No-load current — 140 mA, Speed — 8,200 RPM.
• At DC 3.7V: No-load current — 145 mA, Speed — 10,300 RPM.

Package Includes:

1. Mabuchi FF-260PA-2865 Micro Electric Motor — 1 pc.
