Description

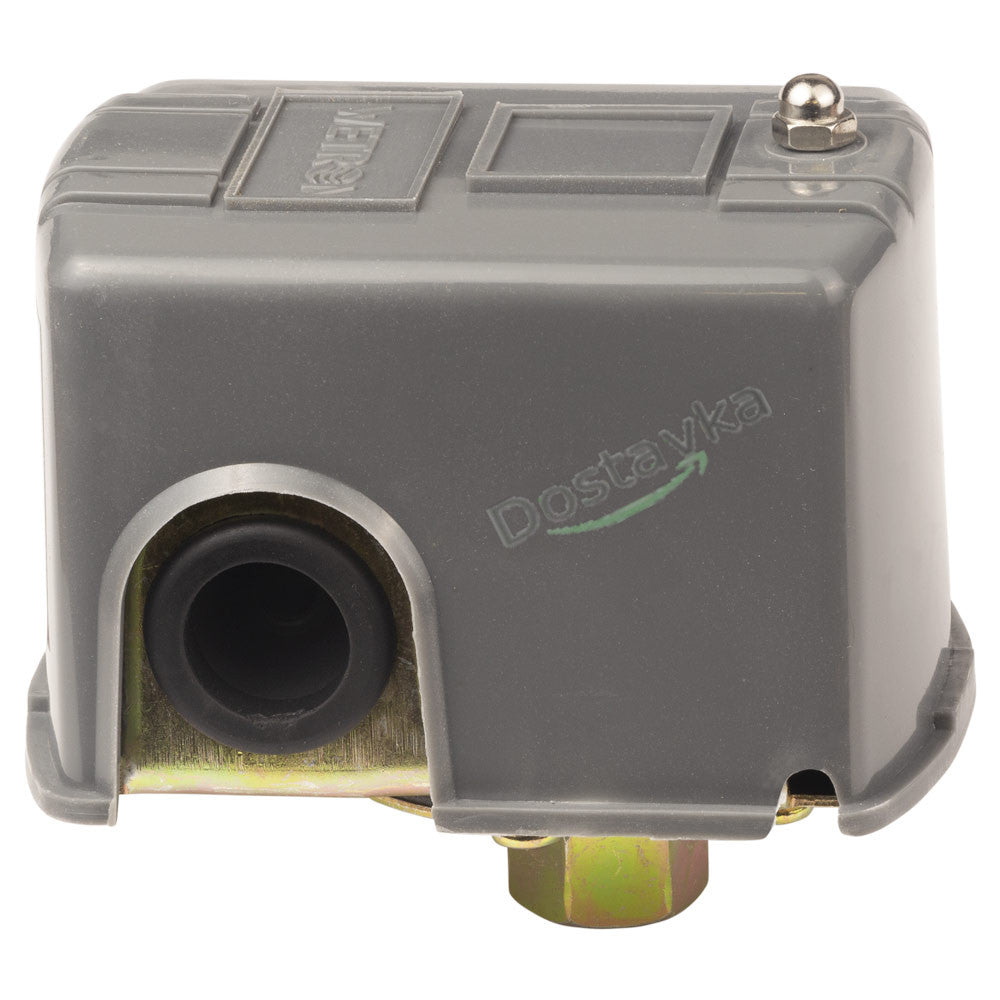

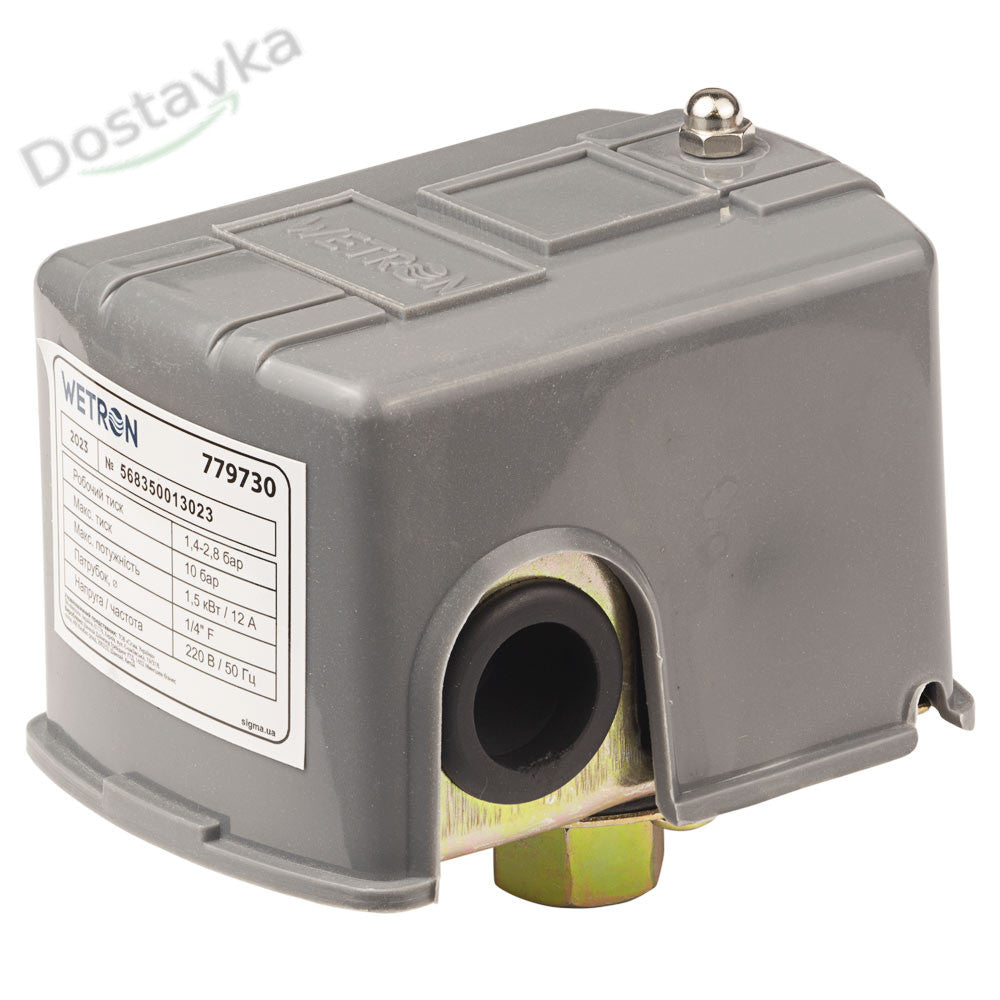

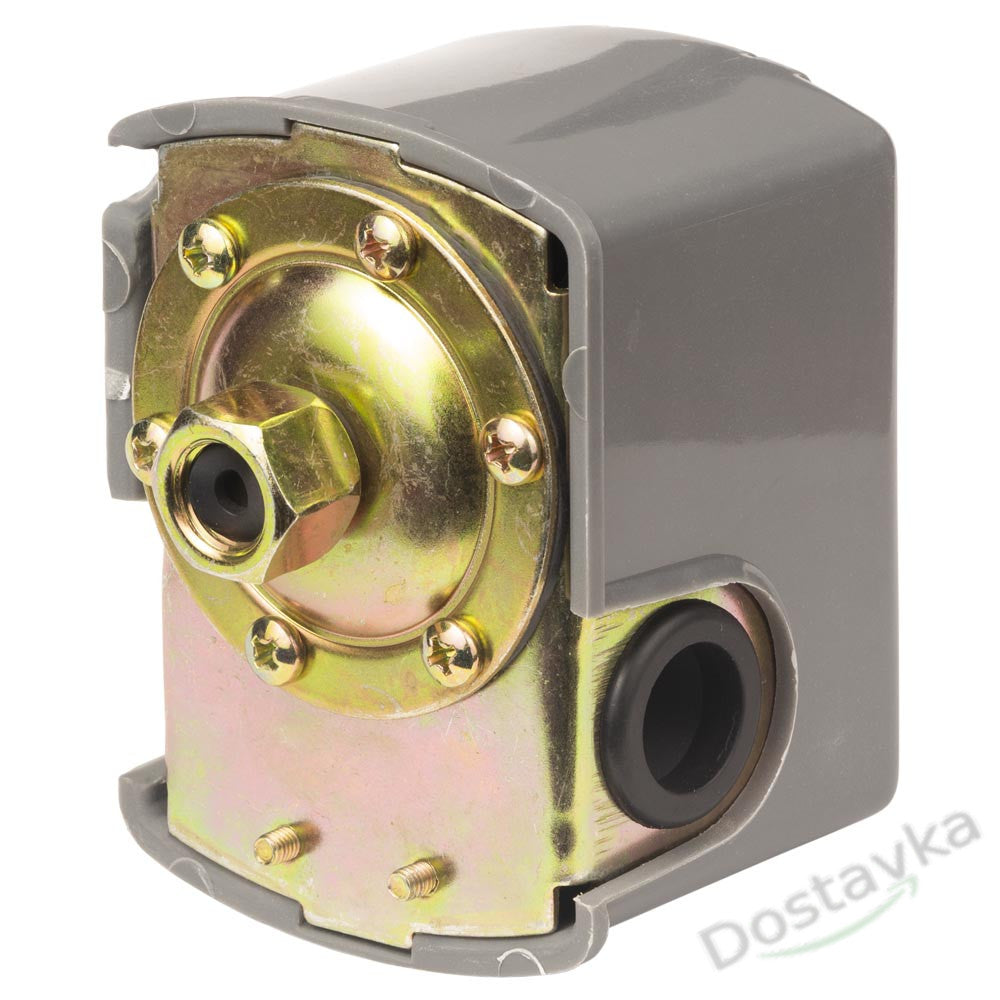

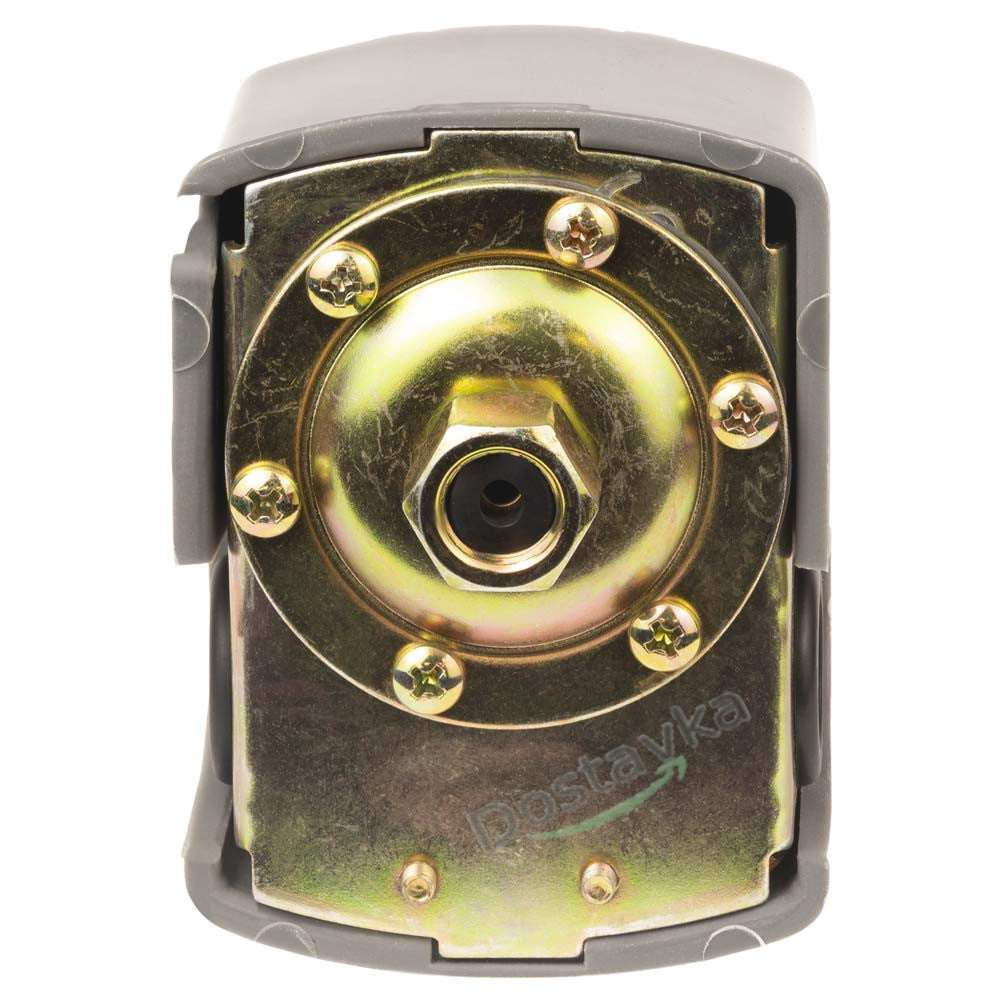

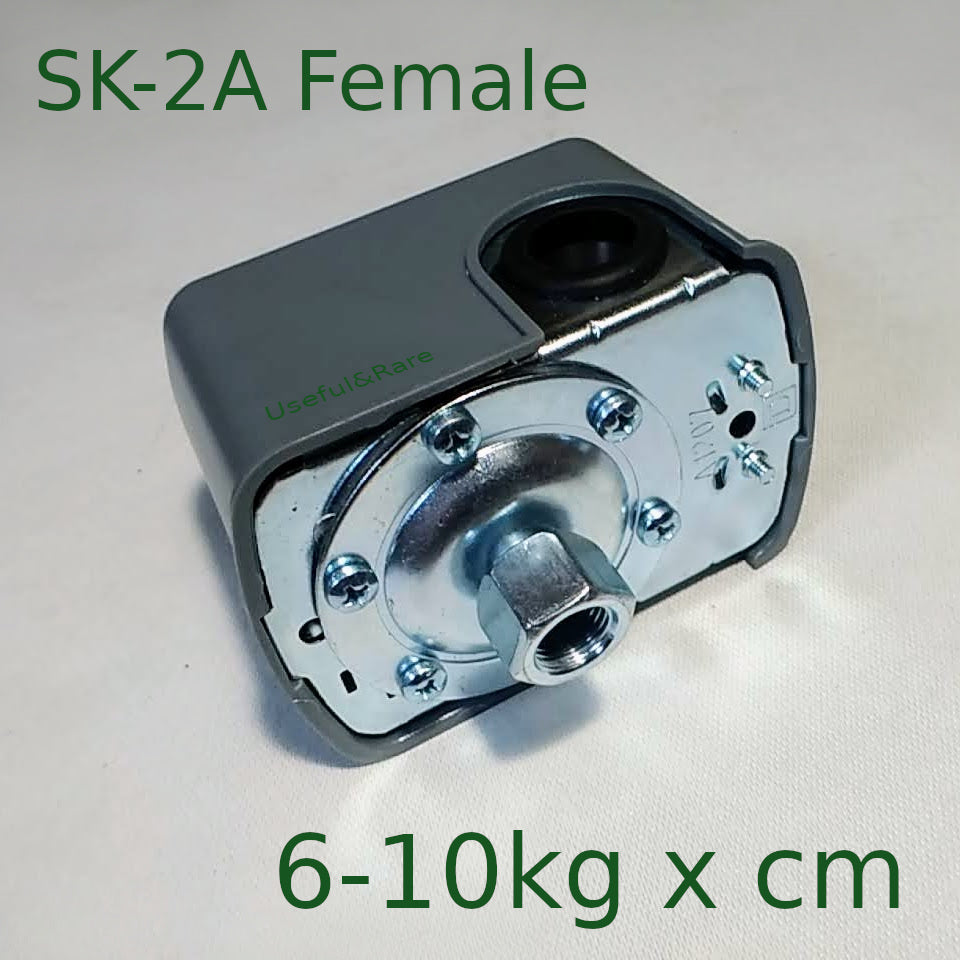

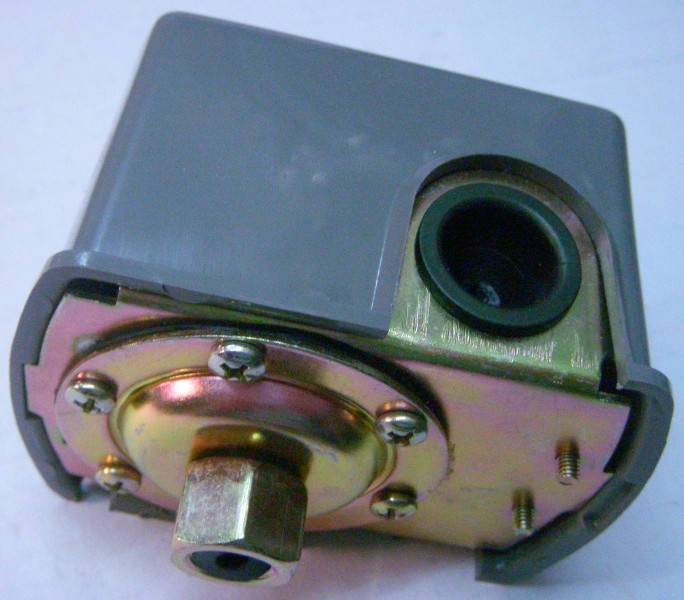

The WETRON (779730) SK-2A, 9013 FSG-2 1.5 kW pressure switch (rectangular housing) for the Nasos+/Sprut/NPO/Euroaqua/Werk 1304 pumping station, with side wire outlet and a 13 mm nut, maintains stable pressure in the water supply system, which is important for the proper operation of plumbing fixtures and protection against excess pressure.
Using a pressure switch helps reduce energy and water consumption and protects pumps from excessive operation and premature failure.
The relay contactors are silver-plated, ensuring high reliability and a long service life.
Features:
- Automatic pump on/off depending on the set pressure
- Adjustable on/off pressure range
Specifications:
- Maximum power, kW: 1.5
- Maximum operating current, A: 12
- Response pressure, bar: 1.4-2.8
- Maximum allowable pressure, bar: 10
- Silver-plated contactor
- Housing material: ABS plastic
- Maximum temperature of pumped liquid, °C: +60
- Maximum ambient temperature, °C: +40
- Protection class: IP20

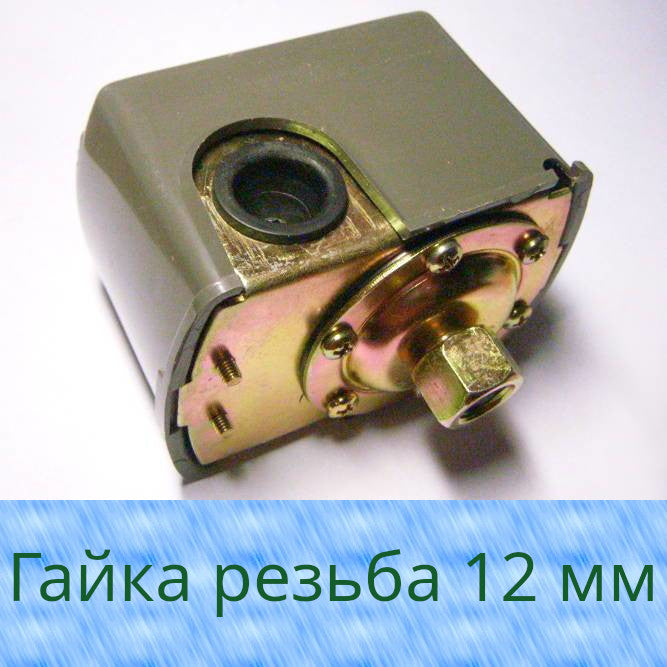

- Thread: 1/4" F (12 mm nut inner diameter according to caliper)
- Voltage: U 1 ~ 230 ± 10% V
- Frequency, Hz: 50
Voltage: U 1 ~ 230 ± 10% V
Frequency, Hz50
Maximum power, kW 1.5
Protection class IP20
Maximum allowable pressure, bar 10
Housing material: ABS plastic
Thread: 1/4" F
Maximum temperature of pumped liquid, °C: +60
Maximum ambient temperature, °C +40
