Description

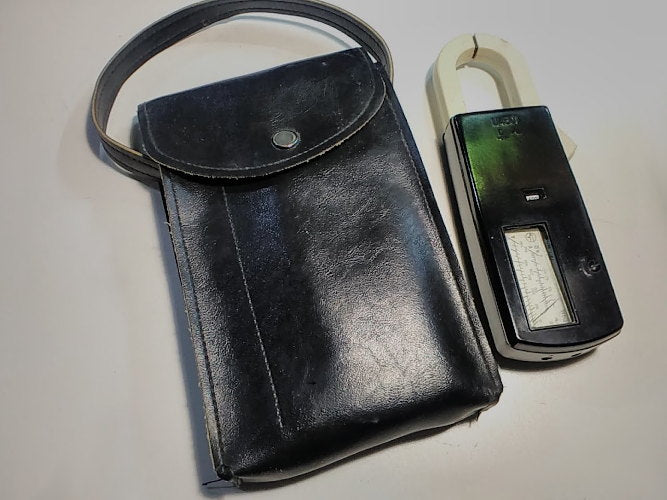

Industrial electrical measuring clamps Ts4501 for measuring current and voltage without breaking the circuit, in low-voltage alternating current circuits with a frequency of 50 Hz with a sinusoidal curve and resistance.
Technical specifications:
Accuracy class 4.0.
Measurement limits:
by current - 10A, 25A, 100A, 250A and 500A;
by voltage 30V and 600V;
by resistance 2 kOhm.
The time it takes to establish readings is no more than 4 seconds.
The size of the magnetic circuit window ensures coverage of a conductor with an outer diameter of up to 35 mm and a 50x20 mm busbar.
The size of the magnetic circuit is not less than 37 mm.
The overall dimensions of the device are 230x85x37 mm; weight - 0.6 kg.
