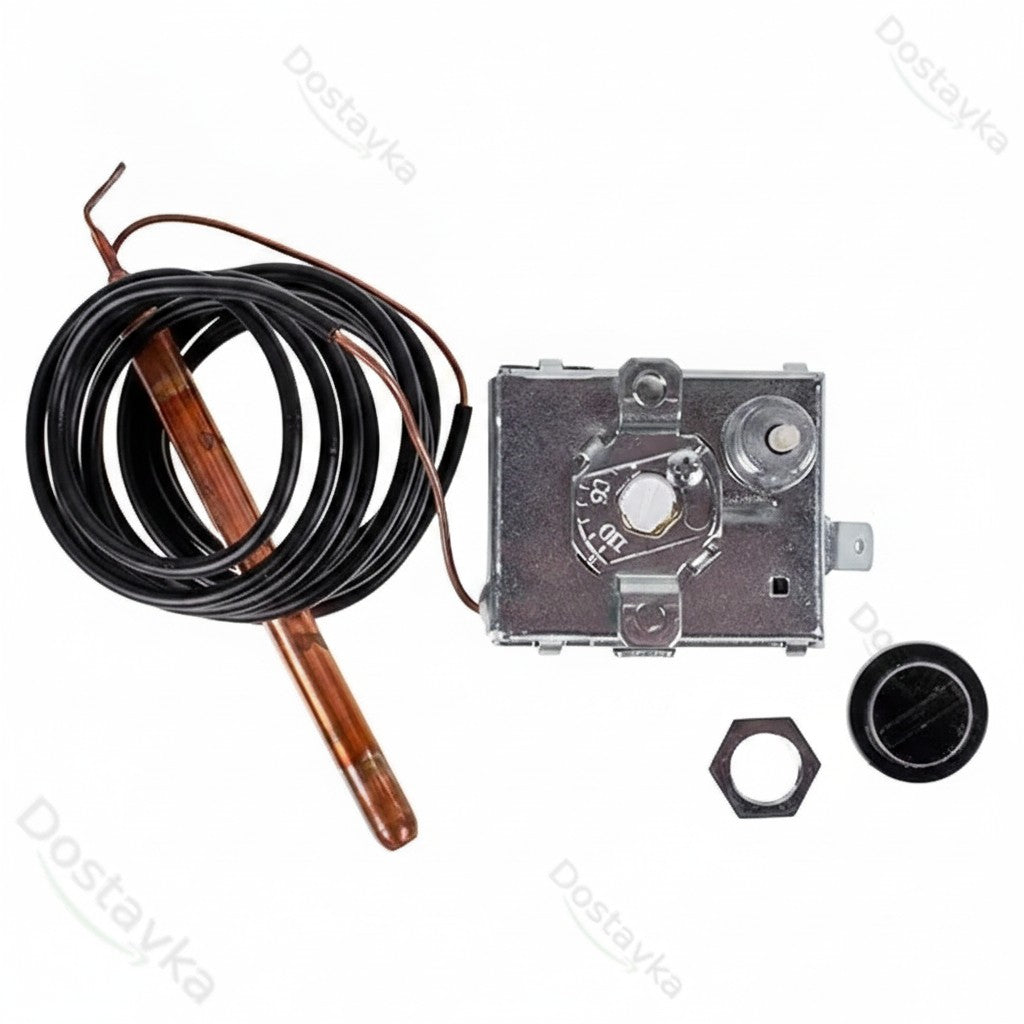

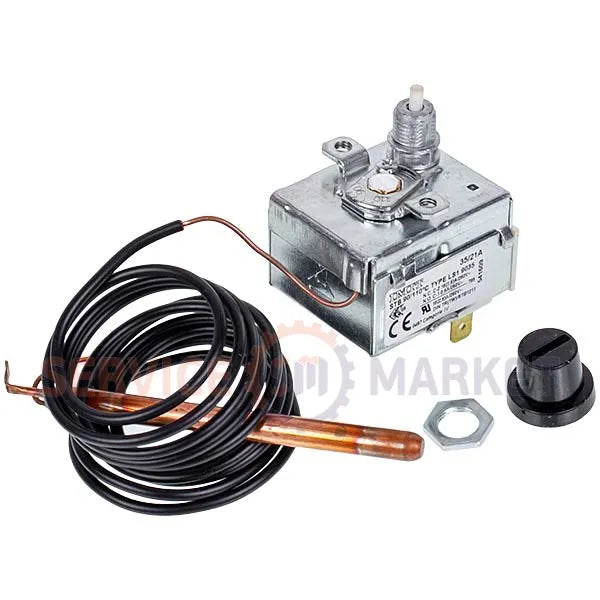

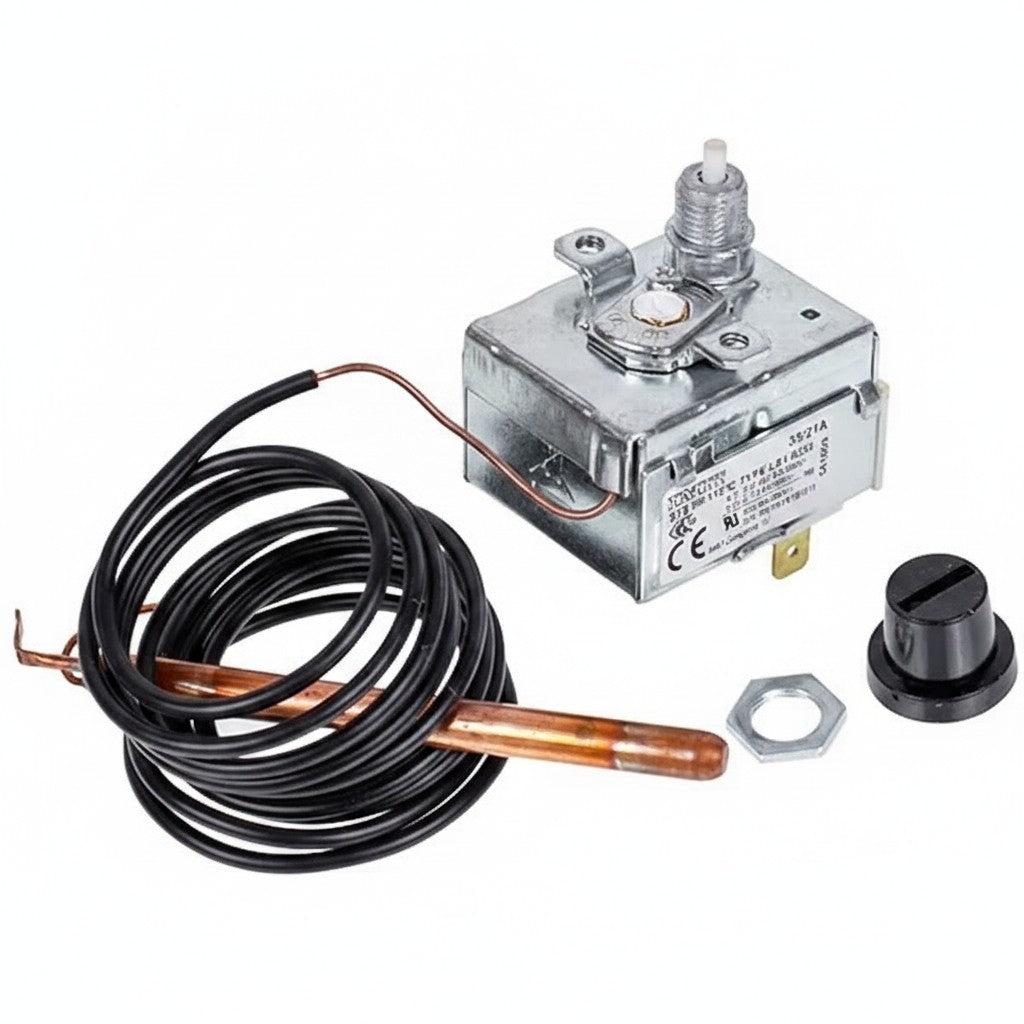

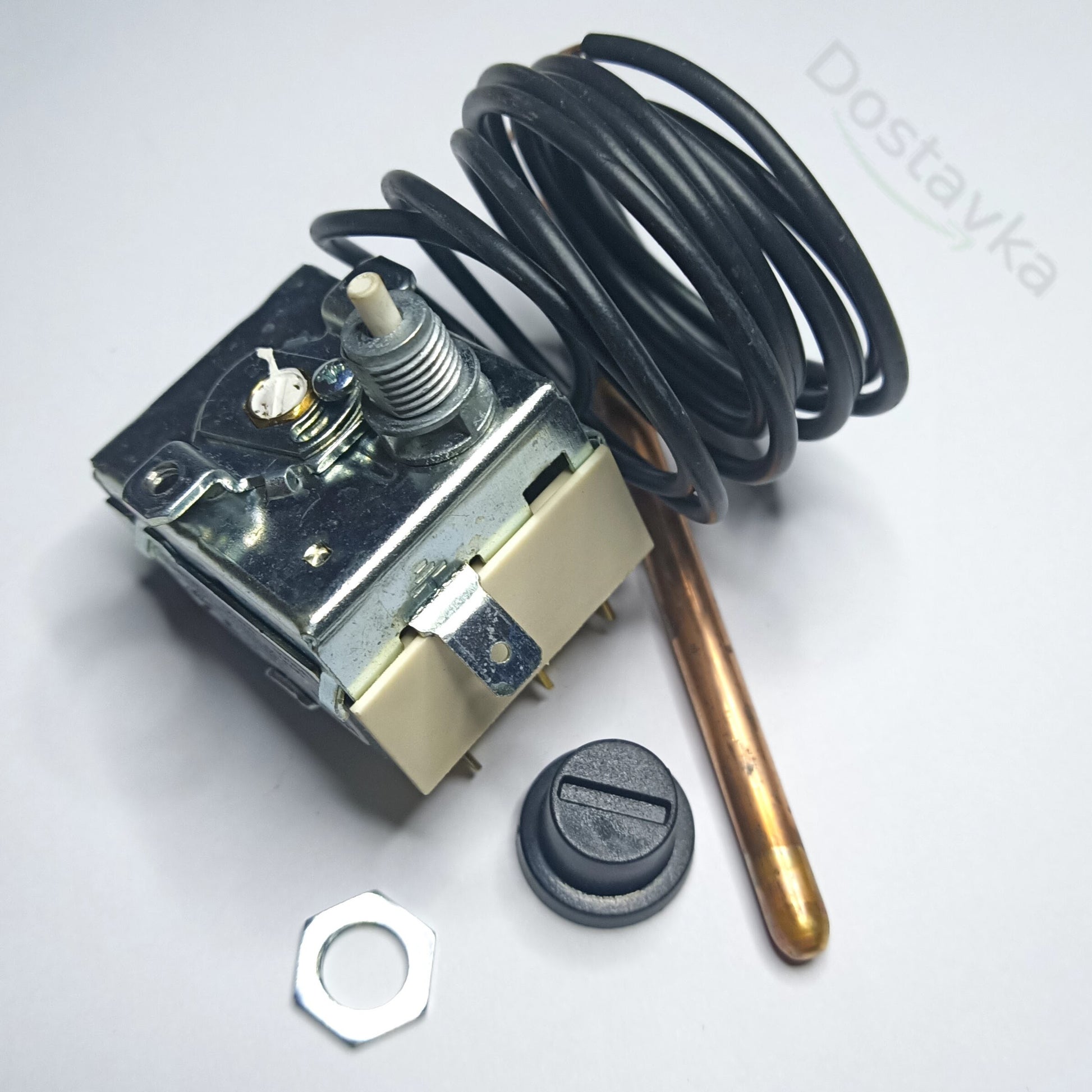

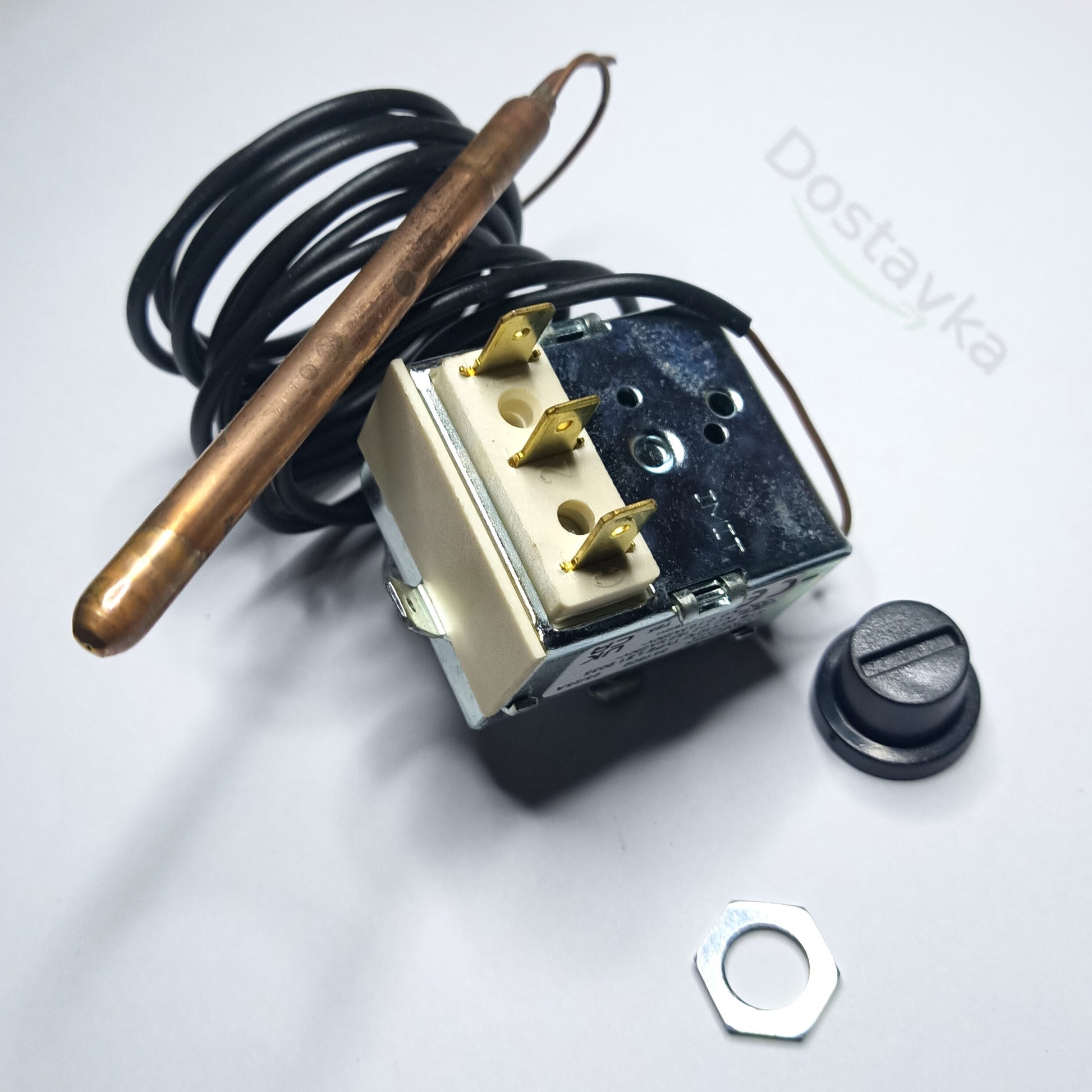

Safety Thermostat (STB) IMIT 90–110°C for Protherm Medved Boilers (part no. 0020137098)
The original emergency (safety) capillary thermostat IMIT STB (part no. 0020137098) is designed to protect Protherm "Medved" series floor-standing gas boilers from overheating. The device monitors the temperature of the heating medium in the heat exchanger and, in the event of an emergency exceeding the permissible limit (90–110°C), automatically opens the electrical control circuit, completely blocking the gas supply. Equipped with a manual reset button.
- Manufacturer: IMIT;
- Manufacturer Part Number: 0020137098;
- Temperature Range: 90/110 °C;
- Spare Part Type: Safety Thermostat;
- Application: For floor-standing gas boilers;
- Brand Compatibility: Protherm;
- Compatible Models: Protherm Medved TLO, KLOM v.16, 17;
Compatible Models
Protherm 20KLOM16 Bear 20KLOM17 20KLZ17 20TLO15 B 30KLOM16 30KLOM17 30KLZ17 30TLO15 40KLOM16 40KLOM17 40KLZ17 40TLO15 50KLOM16 50KLOM17 50KLZ17 50TLO15
Key Advantages and Features:
- Maximum Safety: Instantly shuts down the boiler in case of failure of the main control thermostat or circulation pump, preventing boiling and destruction of the heat exchanger.
- Manual Reset: After the protection is triggered, the boiler will not restart automatically — startup is only possible after the operator presses the reset button.
- Original IMIT Quality (Italy): High activation accuracy, reliable metal capillary tube, and resistance to aggressive operating conditions.
- Full Compatibility: Designed specifically for non-volatile and standard floor-standing Protherm Medved series boilers.
Application in Protherm Boilers:
- Protherm Medved TLO: 20 TLO, 30 TLO, 40 TLO, 50 TLO (non-volatile models).
- Protherm Medved KLOM: KLOM v.16, KLOM v.17 (17 KLOM, 20 KLOM, 30 KLOM, 40 KLOM, 50 KLOM).
- Protherm Medved KLZ / PLO: Corresponding versions of floor-standing cast-iron boilers.

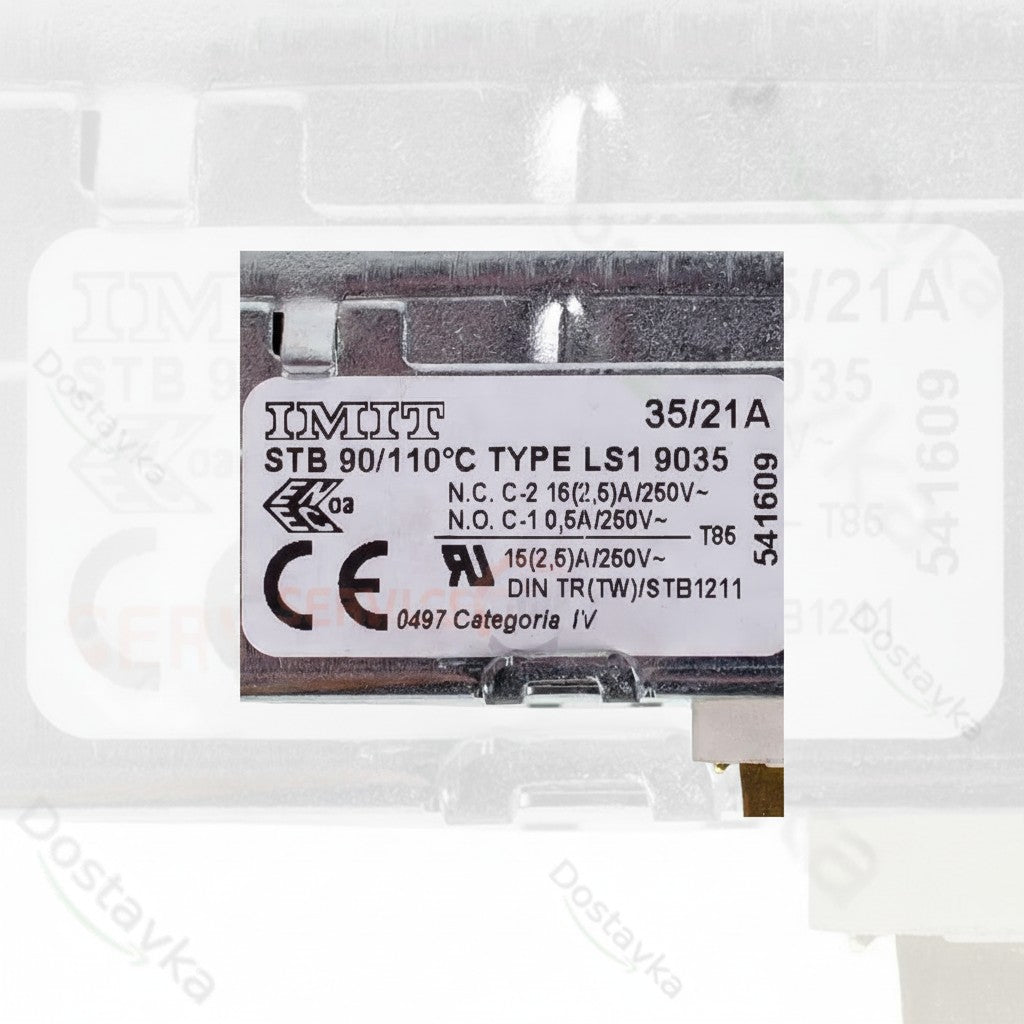

Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | Safety / Emergency Overheat Thermostat (STB) |
| Vaillant / Protherm Part Number | 0020137098 |
| Thermostat Manufacturer | IMIT (Italy) |
| Activation (Cut-off) Temperature | 90°C – 110°C (fixed / emergency) |
| Reset Type | Manual (reset button under a protective cap) |
| Contact Type | NC (normally closed, break-on-rise) |
| Capillary Length | Standard for Protherm Medved series (~1000 mm) |

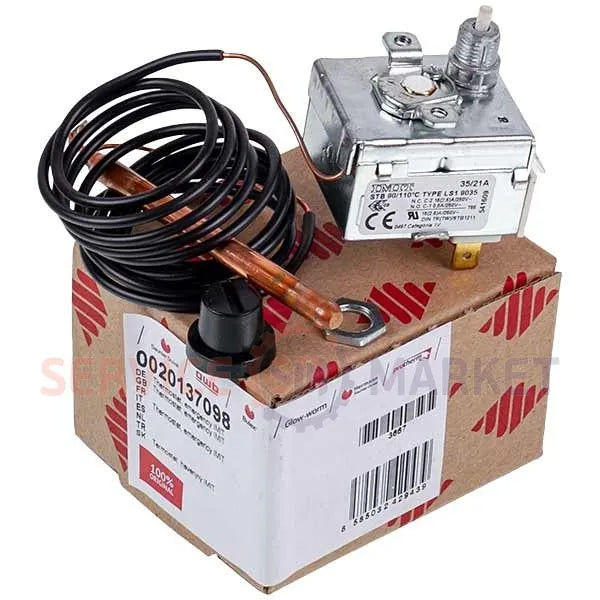

Package Includes:
- Safety Thermostat IMIT STB (part no. 0020137098) — 1 pc.
Service Technician Tip: When replacing the sensor, ensure the capillary tube has no kinks or flattening, and the probe (bulb) is tightly inserted into the heat exchanger pocket using thermal paste for accurate temperature reading.
