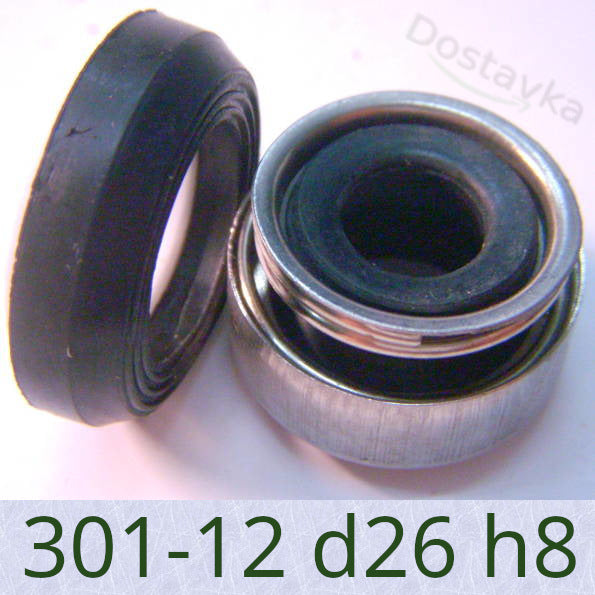

Pump Mechanical Seal 301-12 (d26, h8)

Single-spring mechanical seal 301-12, diameter 24 mm, for 12 mm shaft, 8 mm ring height, for hydrophores and ice makers, stationary ring 26 mm

Suitable for borehole pumps Vodoliy BTsPE 0.5-16, 25, 32, 40, 50, 63, 80, 100

Installation parameters

• Outer diameter of the rotating part housing 24 mm (usually does not affect anything)
• Outer diameter of the stationary ring in rubber 26 mm
• Sealing lips (d11) correspond to the outer diameter of the rotor shaft 12 mm
• Total height with ring 25 mm
• Stationary ring height *7.5 mm
