Description

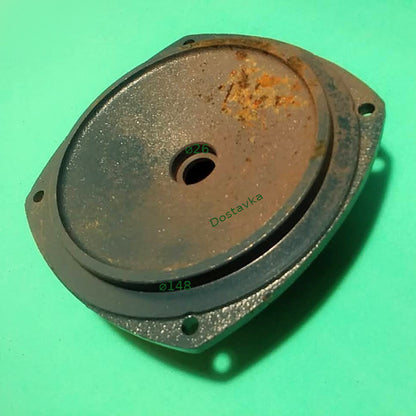

Central shield, pump support flange Pumps plus equipment CPm 146,
Main parameters
- diagonal center-to-center distance of motor mounting holes 128,
- between pump chamber mounting holes 179 (center-to-center),
- central hole for seal ring 26 or 28 mm,
- height from the bottom edge of the stationary ring seat 39 mm,
- bearing seat 35 mm,
- total height 61 (at the edges) - 66 (at the center) mm
