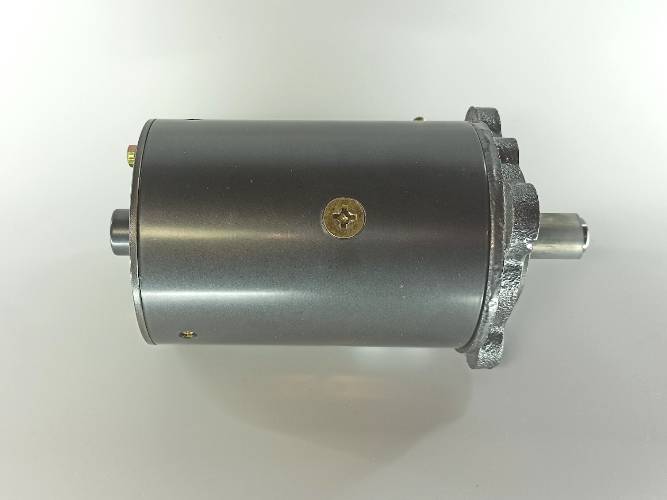

DC Electric Motor 24V 2.6 kW for Ramsey / Auto Crane Winches (Part Number: 10730N)
The powerful 24 Volt DC electric motor (2.6 kW / 3.5 HP) with part number 10730N is designed for installation on automotive, recovery, and industrial hydraulic/electric winches from the Ramsey Winch brand, as well as Auto Crane service cranes. It provides high torque under peak loads, ensuring reliable recovery of heavy equipment and towing in harsh operating conditions.
Key Advantages and Features:
- 24 Volt Operating Voltage (2.6 kW): Specifically designed for the electrical systems of trucks, heavy recovery vehicles, and specialized machinery.
- Bi-Directional Rotation (Reversible): Supports reversible operation (cable winding and unwinding) via a standard solenoid block.
- 4 Power Studs (Terminals): Equipped with four screw terminals for power cables to ensure a reliable reversible connection.
- Durable Heavy-Duty Metal Housing: Protected against dust, dirt, and moisture. Resistant to prolonged high loads and overheating.
- Full OEM Standard Compliance: Manufactured in strict accordance with the specifications of original Prestolite and Ramsey motors.
Compatibility and Application:
- Equipment: Heavy-duty recovery trucks, car haulers, specialized machinery, industrial winches, Auto Crane units, and 24V lifting mechanisms.
- Equipment Brands: Ramsey Winch, Auto Crane, Prestolite.
- Cross-references and Interchangeable Part Numbers: 10730N, 10730, 160-918, 160-918N, M-3300-24V, PS534-24V, Prestolite 46-2106, 46-2289, 46-3523, 46-4210, MMD4001, MMD4401, MMD6102, MUX6302, Ramsey Winch 458002, 458005, W7656, W7658, W8956, Wilson 94-06-1821.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | DC Electric Motor (Winch DC Motor) |
| Part Number / Model | 10730N (WAI / Lester 10730) |
| Rated Voltage | 24V DC |
| Motor Power | 2.6 kW / ~ 3.5 HP |
| Rotation Direction | Bi-Directional / Reversible |
| Number of Power Terminals | 4 power studs (5/16-24) |
| Coupling Shaft Diameter | 19 mm (0.748") keyed/slotted |
| Outer Diameter (OD) | 114.3 mm (4.5") |
Package Includes:
- 24V Winch Electric Motor (10730N) — 1 pc.
Pro Tip: The 10730N motor is designed exclusively for 24V electrical systems. When connected to a 12V system, the motor will operate at half power and wear out the brushes prematurely, while applying 24V to a 12V system will damage the solenoids. Always verify your vehicle's voltage before installation.
