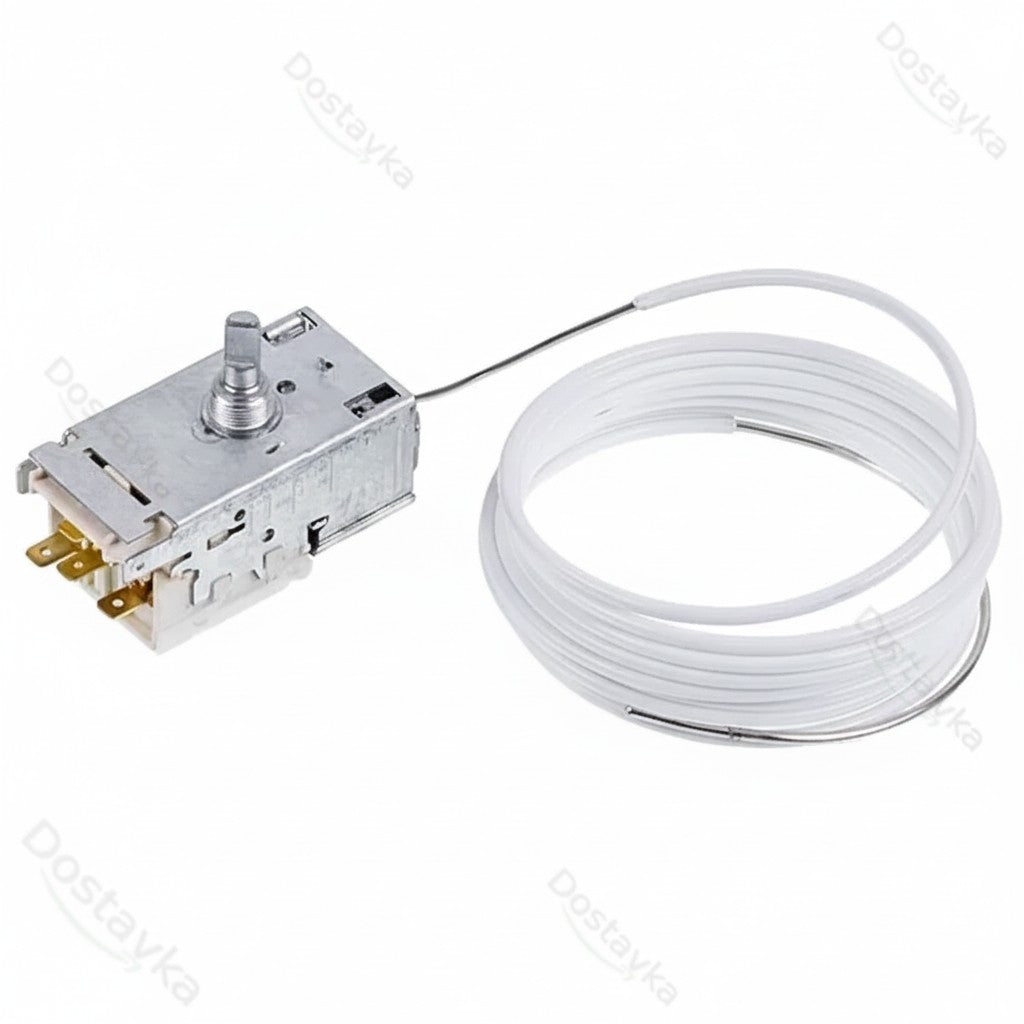

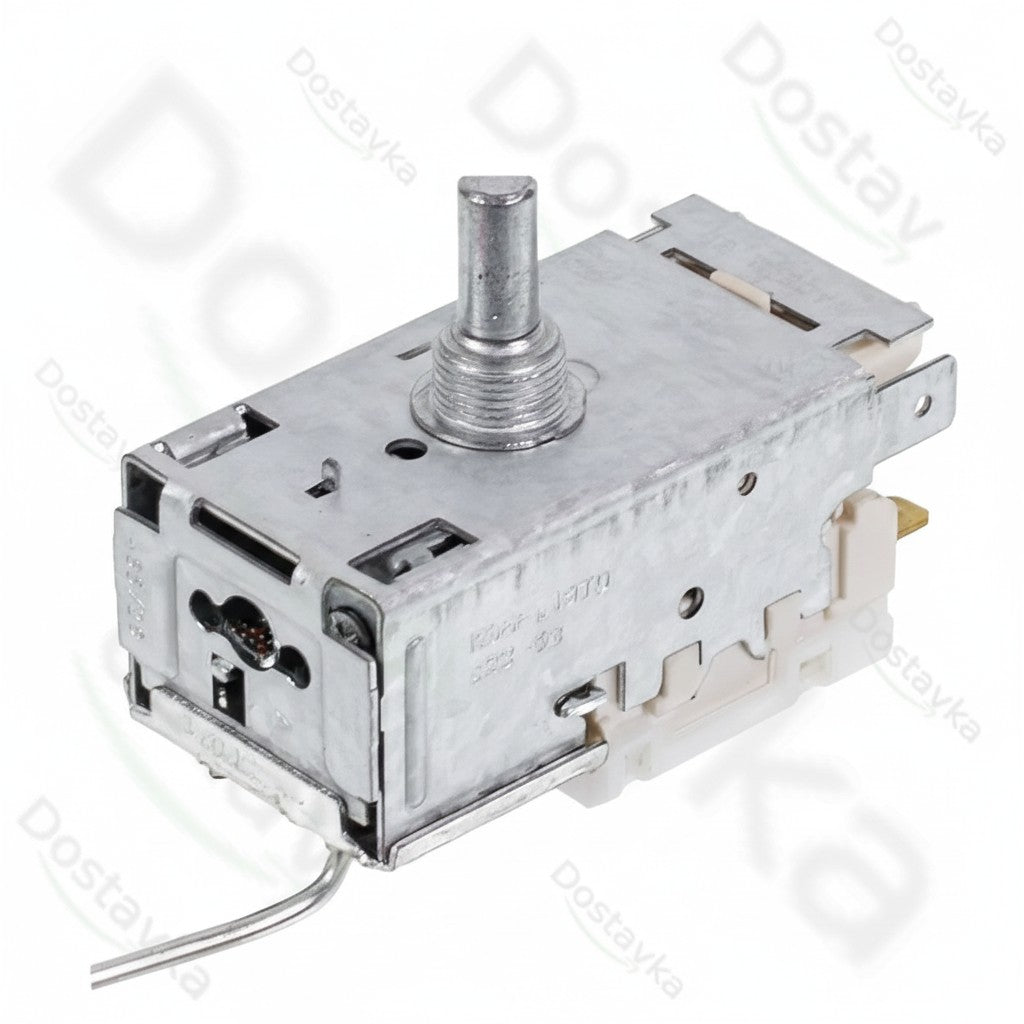

Ranco K56-S1970 (K56-P1409 / K-56) Temperature Controller for Freezers
Original Ranco K56-S1970 capillary temperature controller (thermostat) is designed for automatic control and maintenance of the set temperature in freezers, chest freezers, and double-door domestic refrigerators. The device switches the compressor on and off depending on the temperature on the freezer evaporator, ensuring reliable protection of products from defrosting.
Key Advantages and Features:
- High switching precision: High-quality European capillary mechanism reacts to minimal temperature changes in the freezer compartment.
- Dust and moisture-protected housing: The design is intended for operation in conditions of high humidity and frost formation.
- Universal interchangeability: It is a direct analogue of the TAM-145, K56-P1409, and Danfoss 077B6817 series thermostats.
- Long capillary (234 cm): Convenient for routing along the evaporator tubes in all types of freezers.
Compatibility and Application:
- Appliances: Domestic freezers, chest freezers, double-door refrigerators with separate freezer control.
- Refrigerator Brands: Stinol, Indesit, Ariston, Atlant, Nord, Candy, Whirlpool, Snaige, Liebherr, etc.
- Analogues and Replacements: K56-P1409, TAM-145-1M, TAM-145-2M, Danfoss 077B6817, RANCO K56-L1915.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Brand / Manufacturer | Ranco (Italy / China) |
| Model / Factory Code | K56-S1970 (K56 S1970) |
| Device Type | Freezer capillary thermostat |
| Capillary tube length | 2.34 meters (2340 mm) |
| Cut-out temperature (cold position) | -31.0 °C |
| Cut-in temperature (cold position) | -24.5 °C |
| Cut-out temperature (warm position) | -20.0 °C |
| Cut-in temperature (warm position) | -13.0 °C |

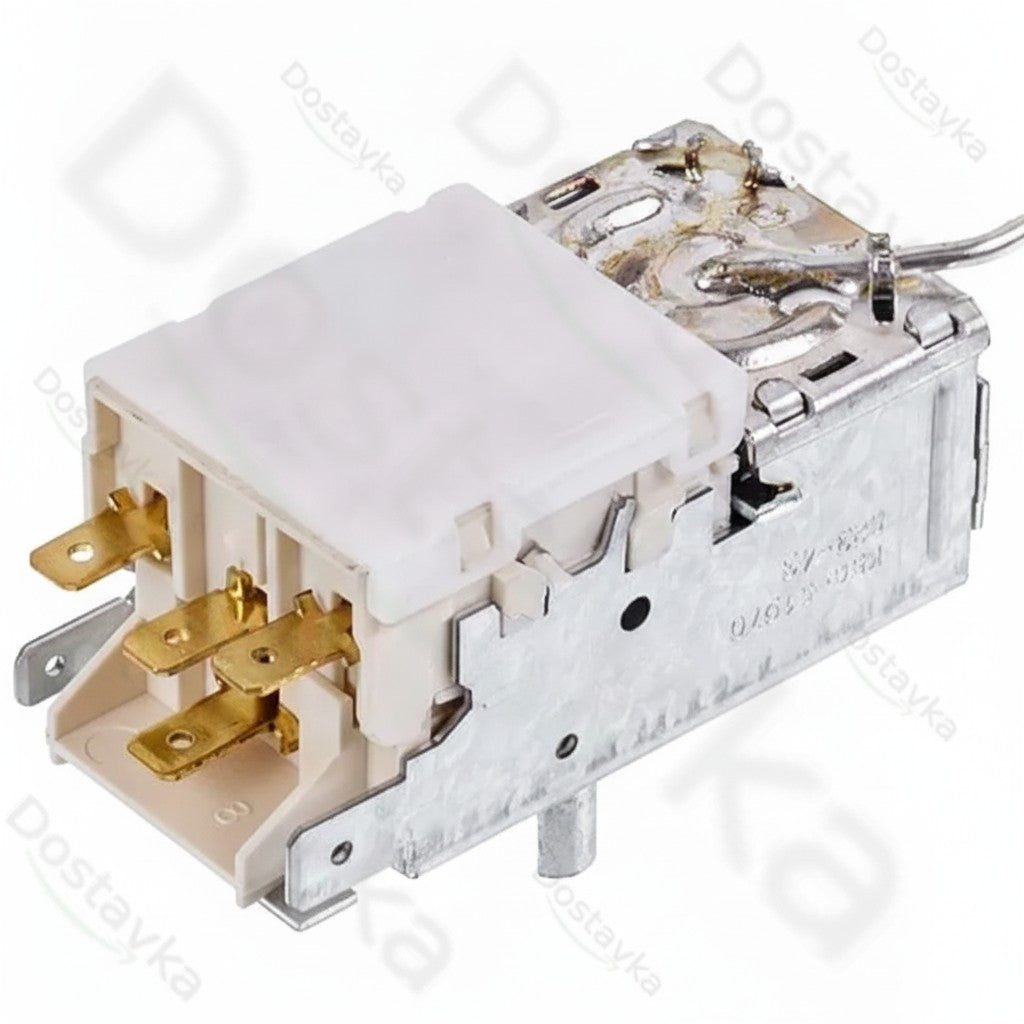

| Rated current / Voltage | 6A / 250V AC (6.3 mm Faston terminals) |
Package Includes:
- Ranco K56-S1970 temperature controller — 1 pc.
Technician's Tip: When replacing, do not bend or kink the thin capillary tube. The end of the capillary must be tightly pressed against the evaporator surface with the standard clamp plate; otherwise, the thermostat will not be able to read the temperature correctly, and the compressor will run continuously.
