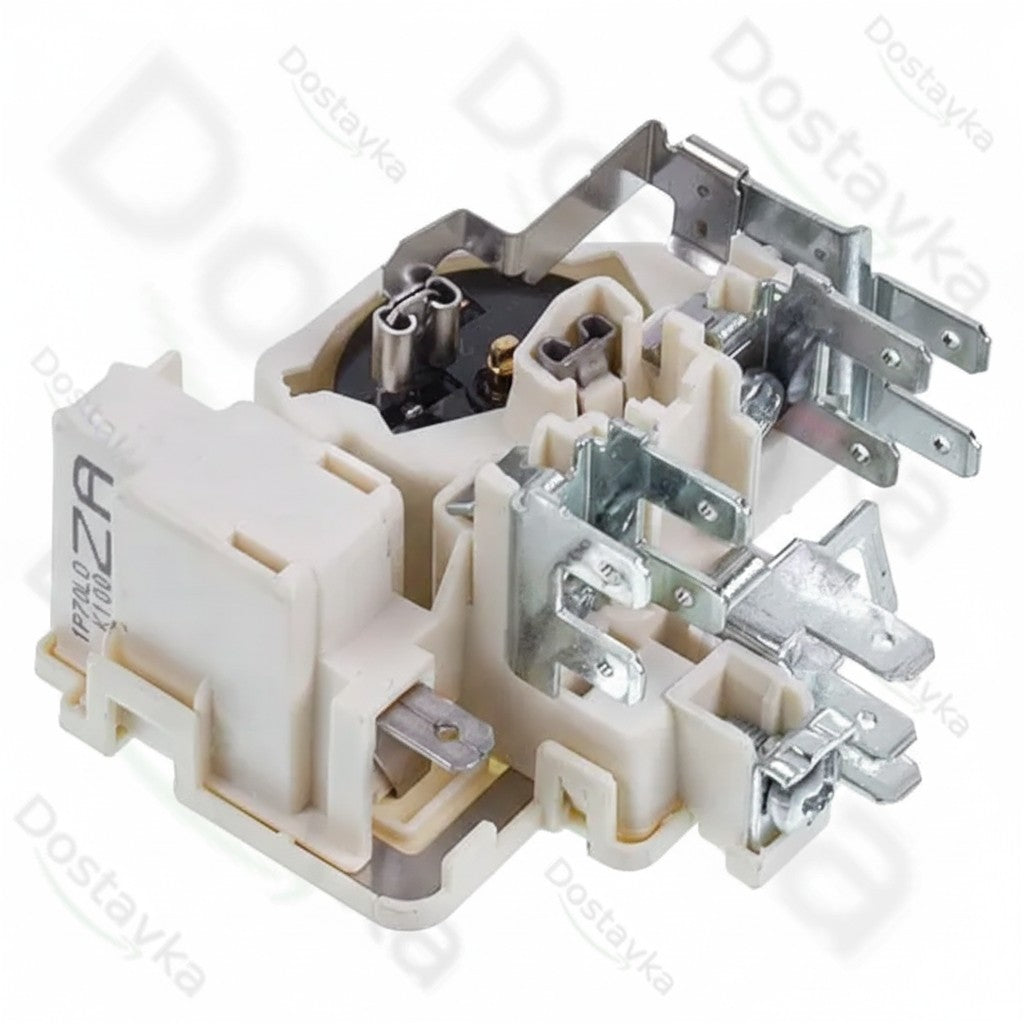

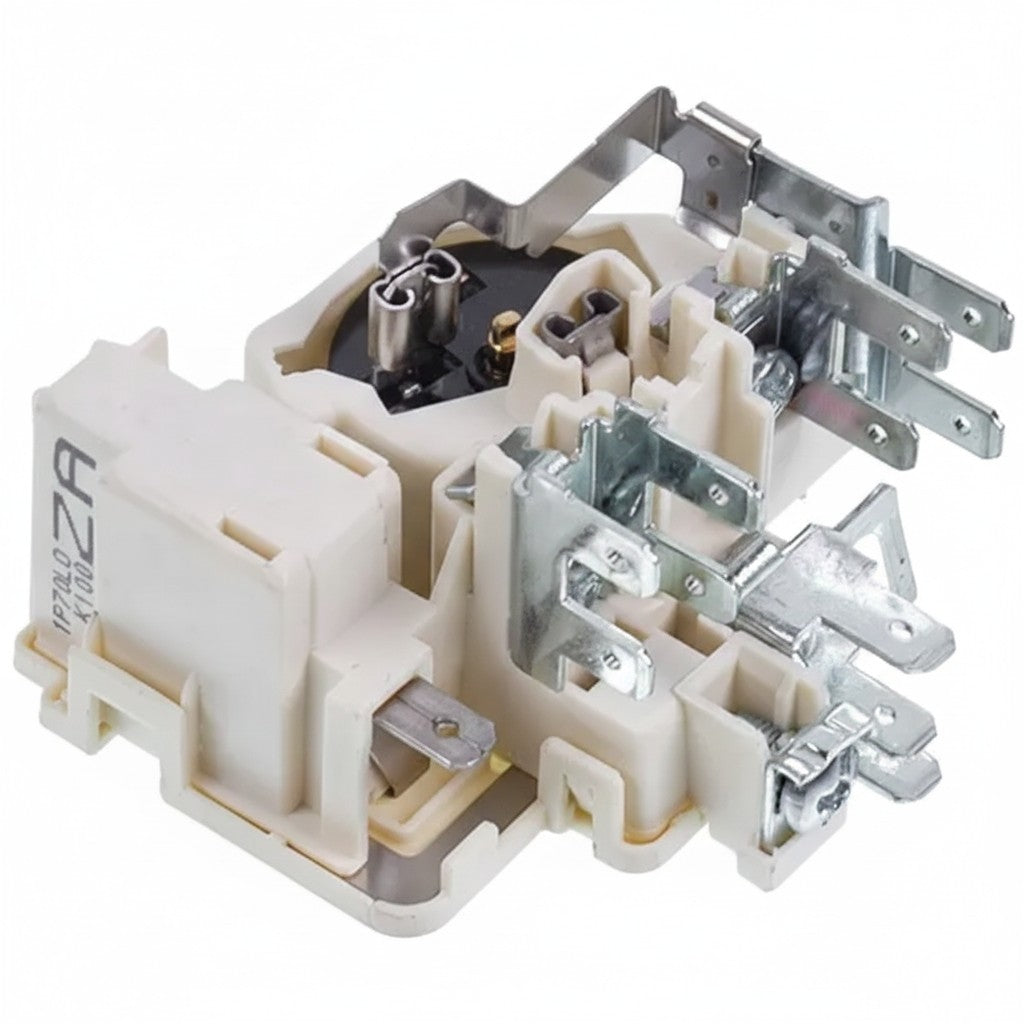

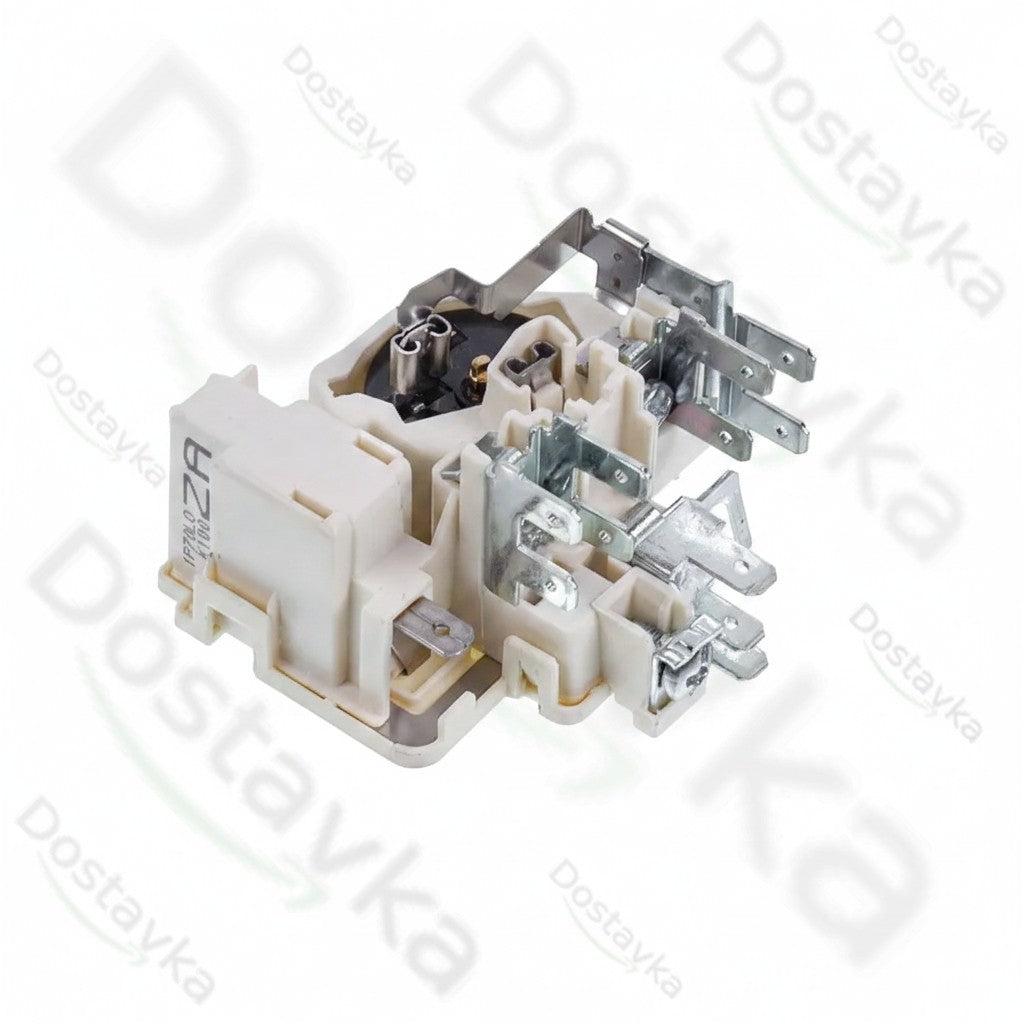

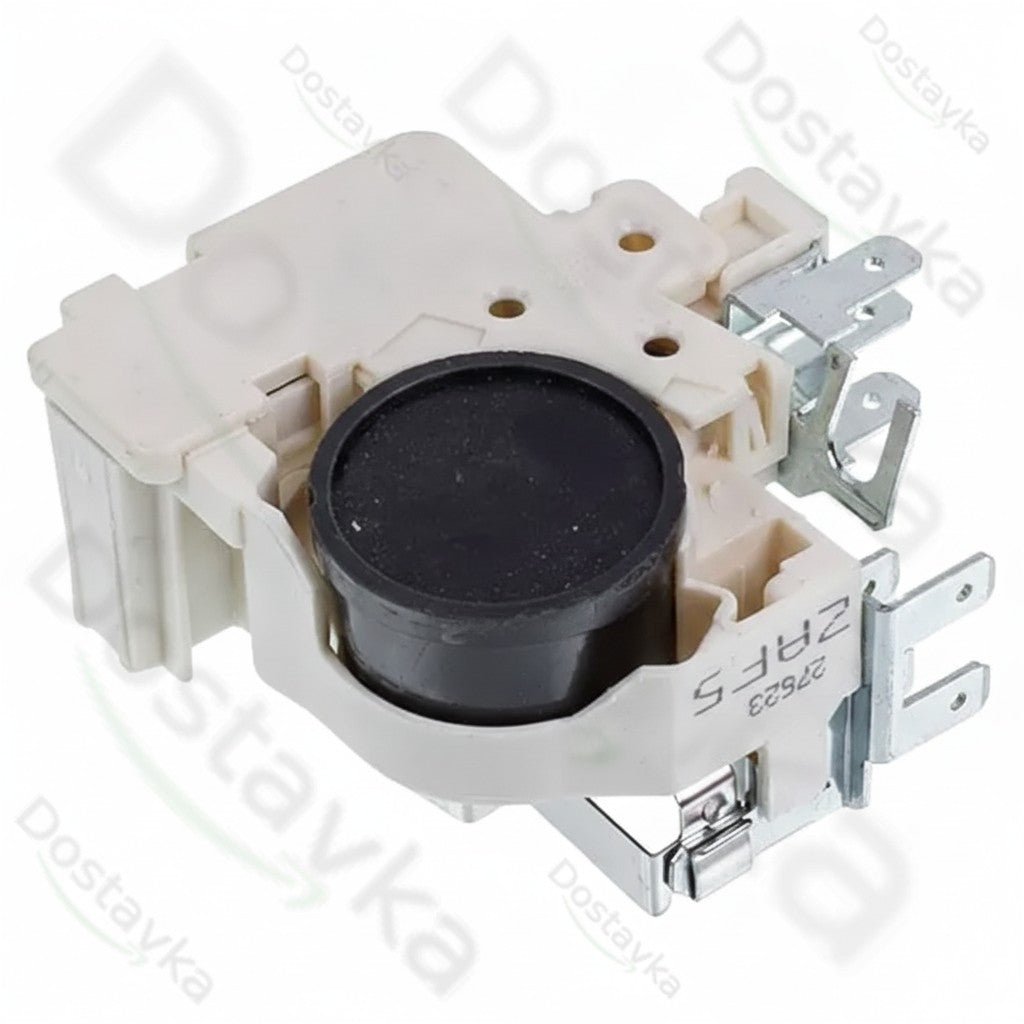

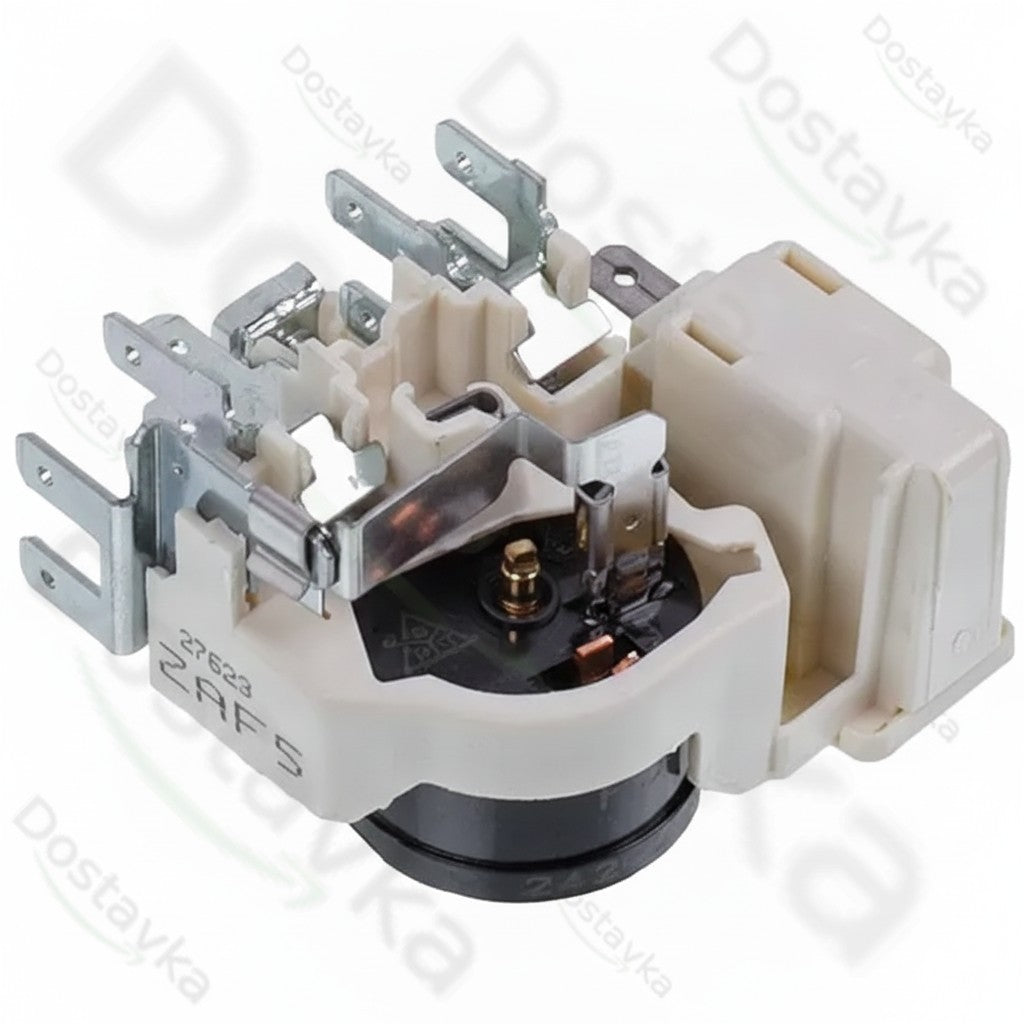

ZAF5 Start Relay for Domestic Refrigerators (Compressor Group)
The ZAF5 series start (start-protection) relay is designed to start and protect single-phase asynchronous compressor motors in domestic refrigerators and freezers. The relay provides a short-term power supply to the compressor's start winding at the moment of ignition and protects the motor from current overloads and overheating during emergency operating modes.
Key Advantages and Features:
- Stable Compressor Start: The built-in PTC (Positive Temperature Coefficient) element ensures precise and reliable switching of the start winding.
- Overheat and Overload Protection: Prevents motor winding burnout in case of rotor jamming, voltage drops, or frequent starts.
- Heat-Resistant Housing: Made of durable non-conductive plastic, resistant to high temperatures and constant vibrations.
- Easy Replacement: The standard contact group allows for quick installation of the part to replace a failed original relay.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Marking / Model | ZAF5 |
| Component Type | Compressor Start-Protection Relay (PTC / Thermal) |
| Rated Voltage | 220–240 V ~ 50/60 Hz |
| Contact Type | 6.3 mm Plug-in Terminals (Faston) |
| PTC Resistance | Standard (~12–22 Ohm at 25°C) |
| Purpose | Starting and protecting compressors of domestic refrigerators and freezers |
Package Contents:
- ZAF5 Start Relay — 1 pc.
Selection and Diagnostic Tip: Before replacing the start relay, ensure the integrity of the compressor windings (check the resistance between the feed-through terminals on the motor-compressor housing). When installing the new relay, ensure the terminal connectors fit tightly.
