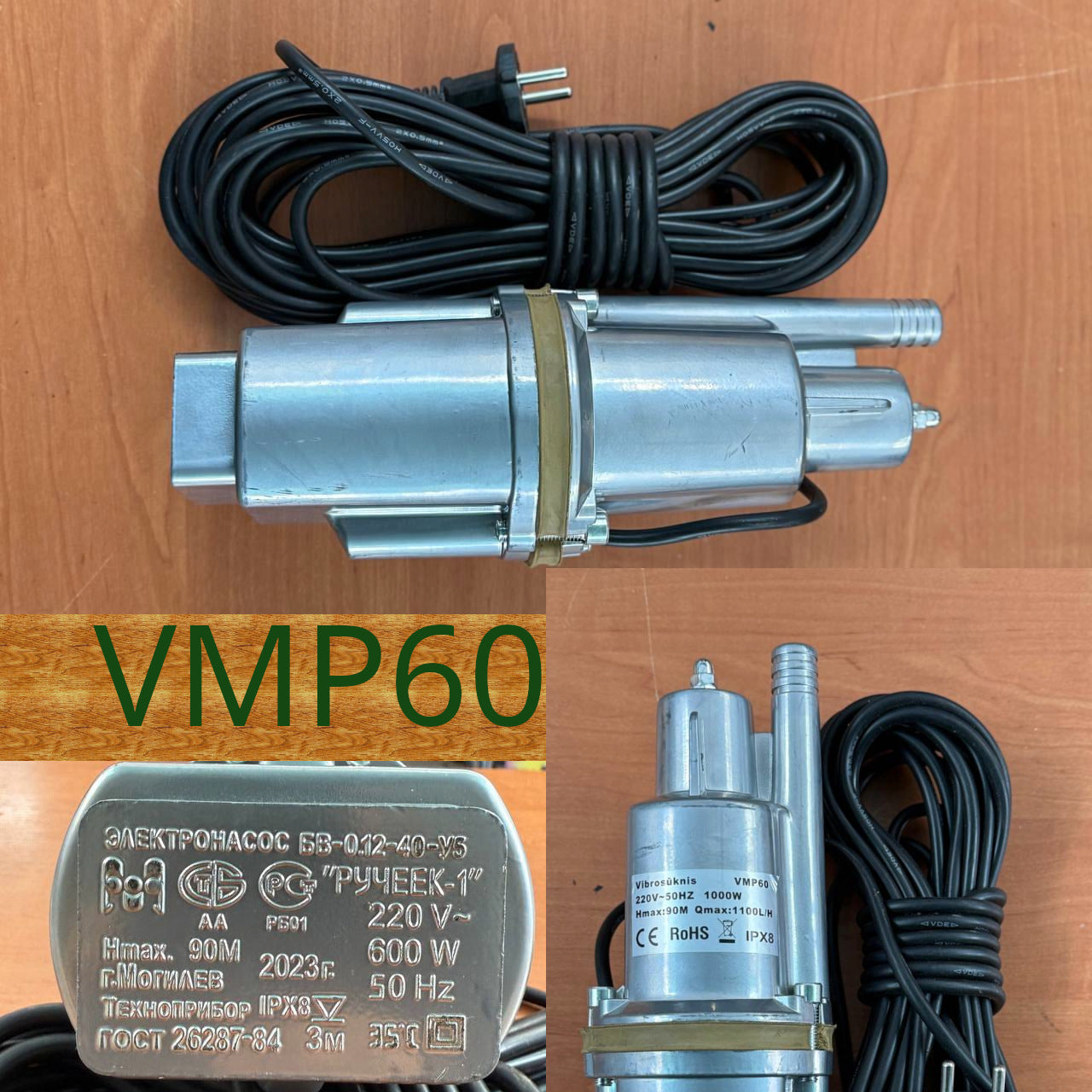

Ruchek-1 BV-0.12-40-U5 Submersible vibration pump (Mogilev, Tekhnopribor)

The Rucheek-1 submersible borehole vibration pump with an upper intake is designed for lifting clean water from wells and boreholes with an internal diameter of over 100 mm, as well as for pumping fresh water from any reservoir with a water temperature of no more than 35 °C, followed by its use for watering garden plots and other household needs.

It must operate completely submerged in water to ensure heat dissipation, and without touching the walls and bottom of the well.

• The pump has double insulation to protect against electric shock.
• made of a special metal alloy,
• has protection against water penetration in its design.
• Minimum full pressure is 10 meters,
• maximum full pressure - 60 meters,
• maximum working depth in water is 3 meters,
• maximum operating temperature of the pumped liquid is 35 °C.

Not suitable for pumping aggressive liquids, water with dirt, sand, or small stones.
Does not require lubrication or water filling; turns on immediately after immersion in water.

Technical specifications

• Powered by 220 volt 50 hertz network

• Power consumption - 225 Watts.

• The lifting height is 60 meters

• Diving depth: 3 meters

• Productivity – 20 liters per minute

• Cable length: 6-10 meters

• Weight - 4 kg
