Description

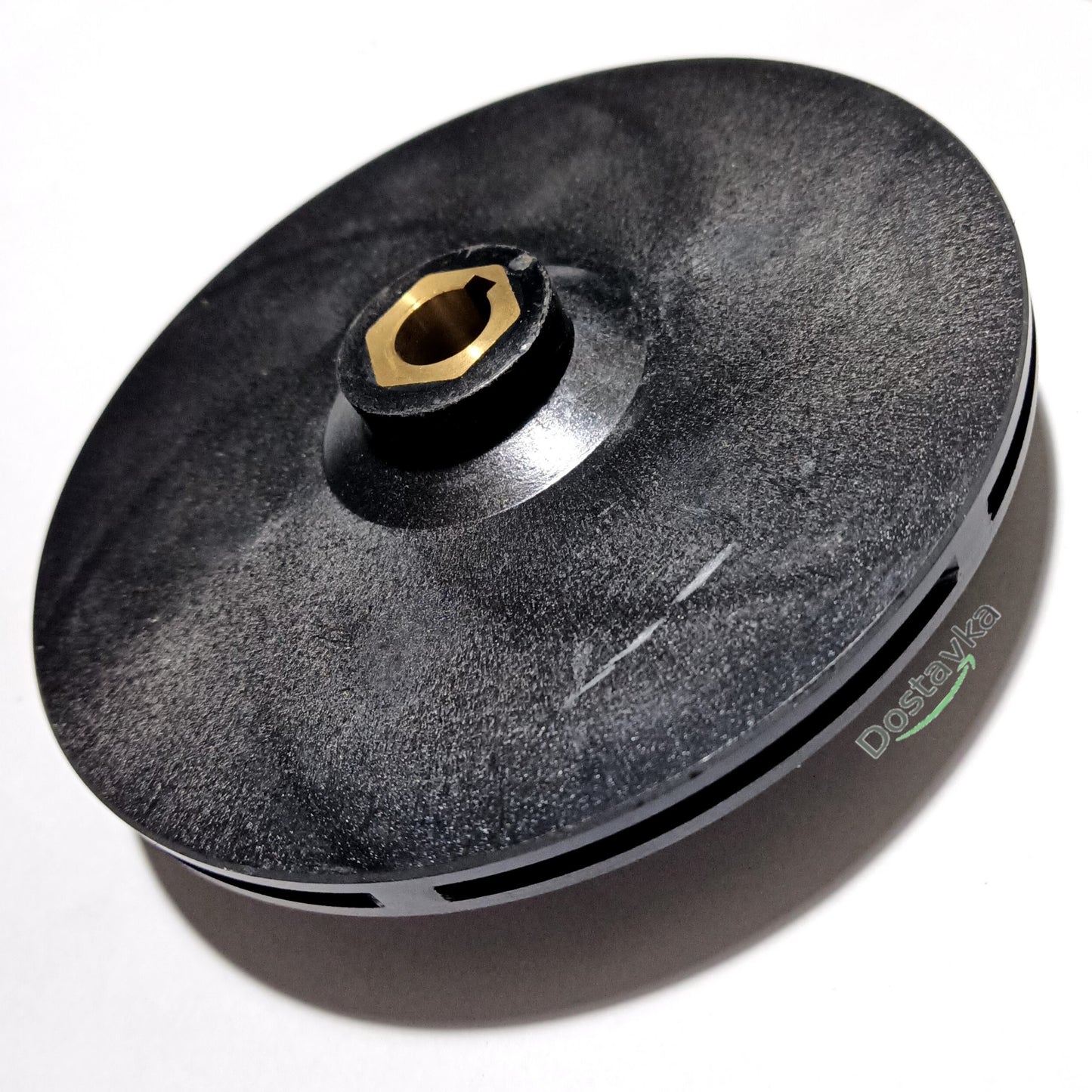

Impeller wheel of water pump Rudes JSWm15MX (Ø12*Ø124*4*Ø33,5*11*35) (plastic) (B01/015)
External diameter 124 mm
External diameter of the pipe 33.5 mm
Inner mounting hole diameter 12 mm
Fixation on the shaft by a key
Total height 35 mm
Depth of central bushing 15 mm
Blade disc height 9 mm
The height between the blade discs is 3.5 mm
Protrusion 10 mm
Suitable for models series
NPO/Rudes (B01/015); JSWm15MX and any pump with same desigm
