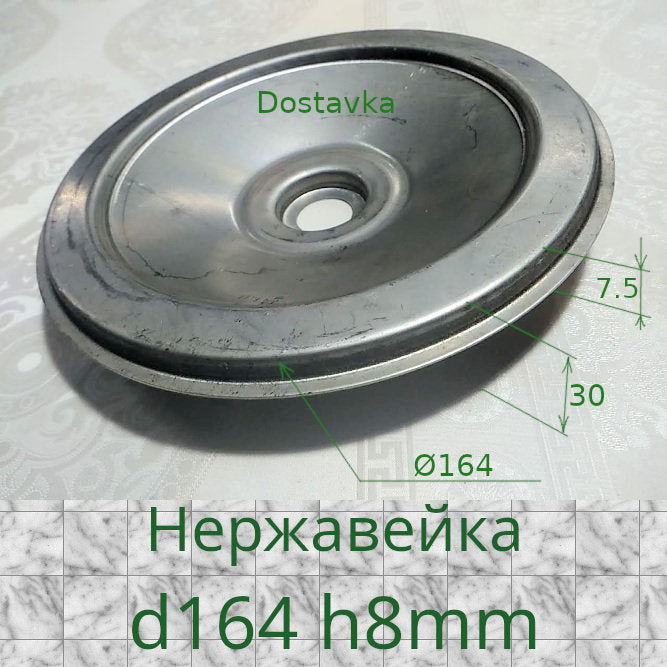

Rudes Rosa Sprut Pump Reflector MJS150 (d173*d18, h8-30, 8mm rim)

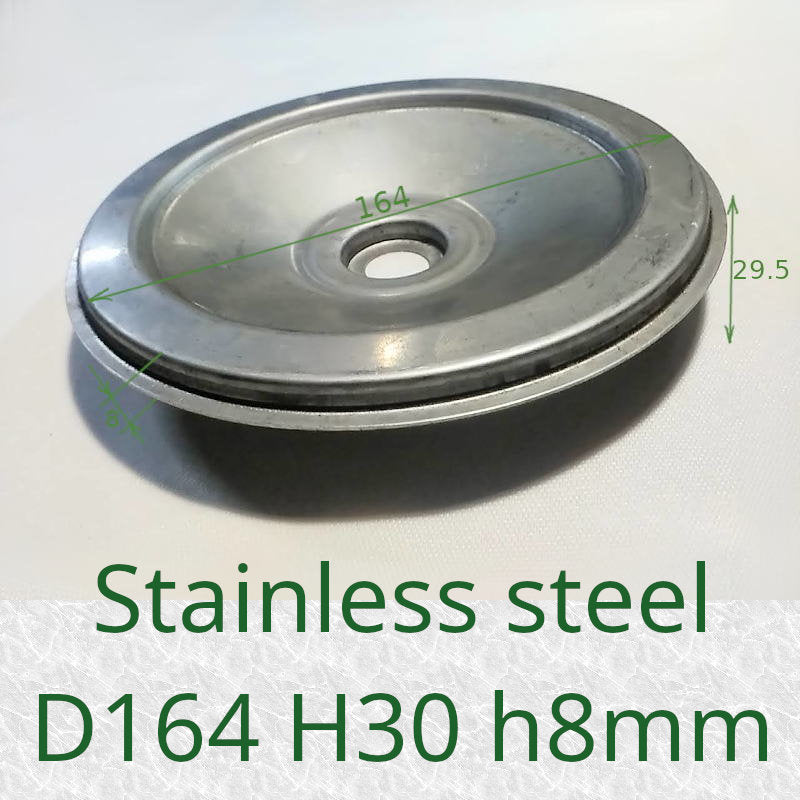

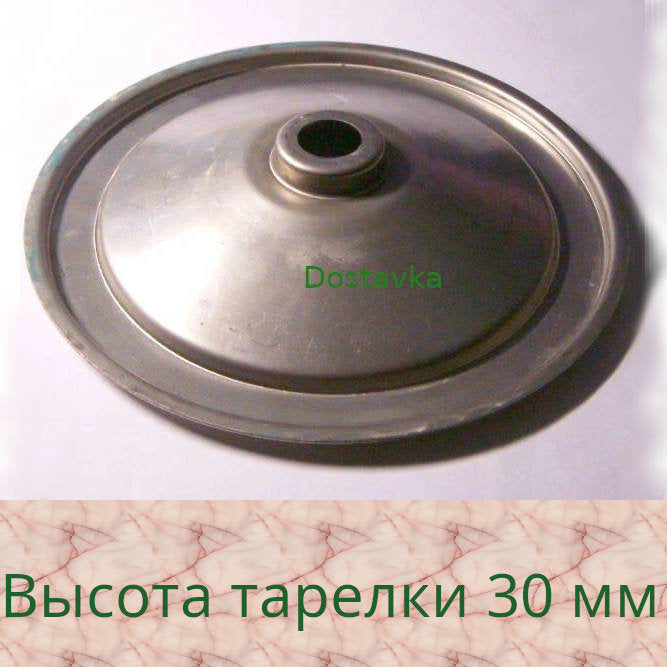

Stainless steel seal plate for water pump (station) Rosa, Sprut AUJS 1100, MJS150 (stainless steel) (A07), MJS150 (A07), Rudes JS100 (B07), Nasosy+ JS110X (А05/015), Rossa JET 100, jy-1000, Gardenlux WPS 0900M, Hydrofor JY-750/3TF

Seal plate parameters

• Low rim 8 mm

• Outer diameter 173 mm

• Center hole 19 mm

• Size for stationary seat (ceramic in rubber) 30 mm
• Inner dimension for impeller ~132 mm

• Outer diameter of flat ring 163 mm

• Width of flat ring 18 mm

• Total height (measured with depth gauge) ~30 mm

• Bottom diameter around center hole 55 mm
