Description

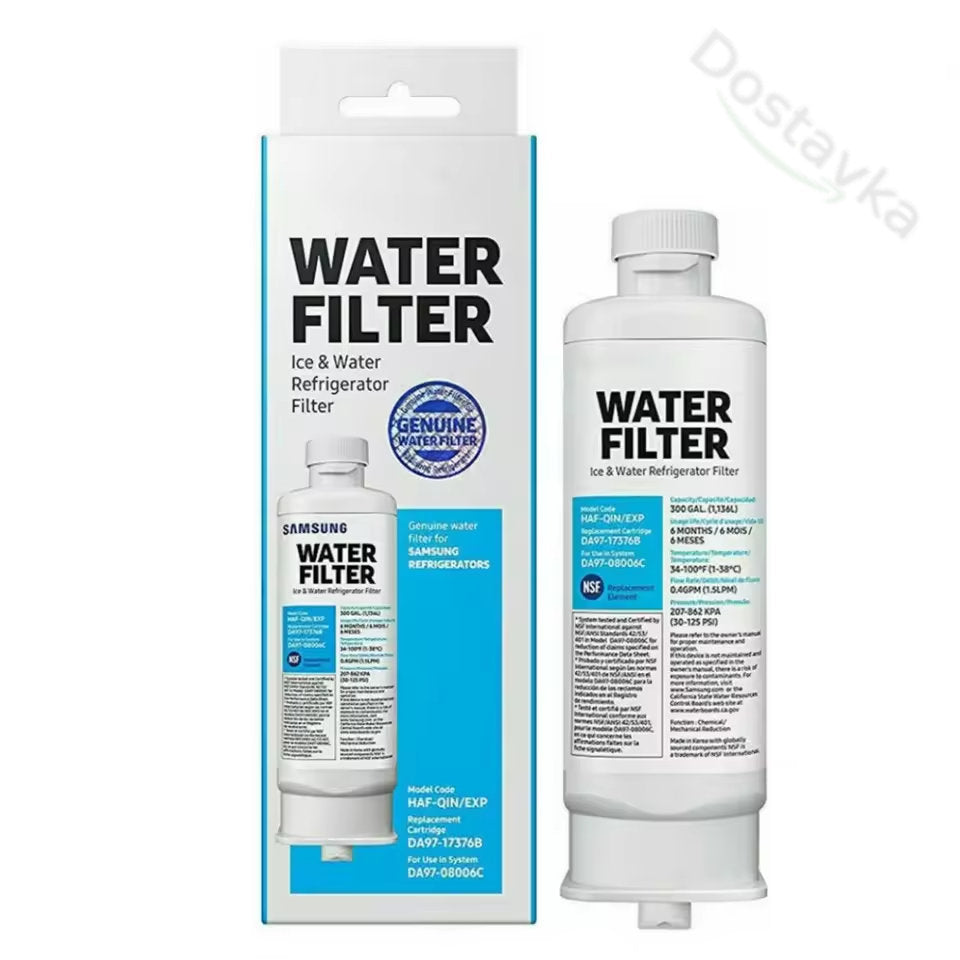

Samsung DA97-17376B (HAF-QIN / HAF-QIN/EXP) Refrigerator Water Filter
The original Samsung DA97-17376B (HAF-QIN type) internal water filter cartridge is designed for deep purification of tap water supplied to the ice maker and built-in dispenser of Samsung French Door and Side-by-Side series refrigerators. It is equipped with a high-efficiency carbon block that removes chlorine, heavy metals, chemical compounds, unpleasant odors, and off-tastes, guaranteeing safe and fresh drinking water and clean ice.
Key Benefits and Features:
- Multi-level International NSF/ANSI Certification: Independently tested and certified to NSF/ANSI 42 (taste and odor improvement, chlorine removal), NSF/ANSI 53 (reduction of heavy metals, lead, cysts, and volatile organic compounds), and NSF/ANSI 401 (filtration of pharmaceuticals, pesticides, and microplastics).
- Hydraulic System Protection: The perfectly fitted filter head design eliminates the risk of leaks and damage to the refrigerator's inlet valve.
- Easy Replacement in Seconds: Installs inside the refrigerator compartment using a convenient Lock & Turn mechanism without the need for additional tools.
- Stable Water Flow: Provides a high flow rate of filtered water (approximately 1.5–1.9 L/min) without a critical pressure drop in the system.
Compatibility and Equivalents:
Replaces the following original Samsung part numbers:
- DA97-17376B, DA97-08006C, HAF-QIN, HAF-QIN/EXP, HAF-QIN/XAA
Compatible third-party replacement cartridges:
- Waterdrop WD-DA97-17376B, AquaCrest AQF-DA97-17376B, FilterLogic FL-RF45, WaterSpecialist WS645A
Compatible Samsung refrigerator models:
- RF23 Series: RF23M8070SG, RF23M8070SR, RF23M8090SG, RF23M8090SR, RF23M8570SG, RF23M8570SR, RF23M8590SG, RF23M8590SR, RF23M8960S4, RF23M8960MT, RF23R6201WW, RF23R6301SR (as well as versions with the /AA suffix)
- RF28 Series: RF28R7351SG, RF28R7201SG, RF28R7201SR, RF28R6202WW, RF28R6221SR, RF28R6301DT, RF28R7551DT, RF28T5001SR, RF28T5021SR, RF28T5101SG, RF28T5F01SR
- RF22 / RF24 / RF26 / RF27 Series: RF22R7351SG, RF22R7351SR, RF22R7551DT, RF24R7201SG, RF262BEAESR, RF27T5201WW, RF27T5501SG
- RS Series (Side-by-Side): RS22T5201SG, RS22T5561SR, RS23A500ASG, RS27T5200SR, RS27T5561SR, RS28A500ASR, RS28A5F61SR
- Dacor / Samsung Built-in Series: BRF365200AP, BRF425200AP
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | Internal replacement water filter cartridge |
| Main Part Number | DA97-17376B (HAF-QIN) |
| Manufacturer | Samsung |
| Filter Material | Compressed activated carbon block (Carbon Block) |
| Filter Capacity | 1,136 liters (300 gallons) / 6 months of use |
| Operating Temperature | from +1°C to +38°C (34°F – 100°F) |
| Operating Pressure | 207 – 862 kPa (30 – 125 psi) |
| Dimensions (LxWxH) | 210 x 60 x 60 mm (8.27 x 2.36 x 2.36 inches) |
| Weight | 350 g (0.77 lbs) |
Package Includes:
- Water filter
