Description

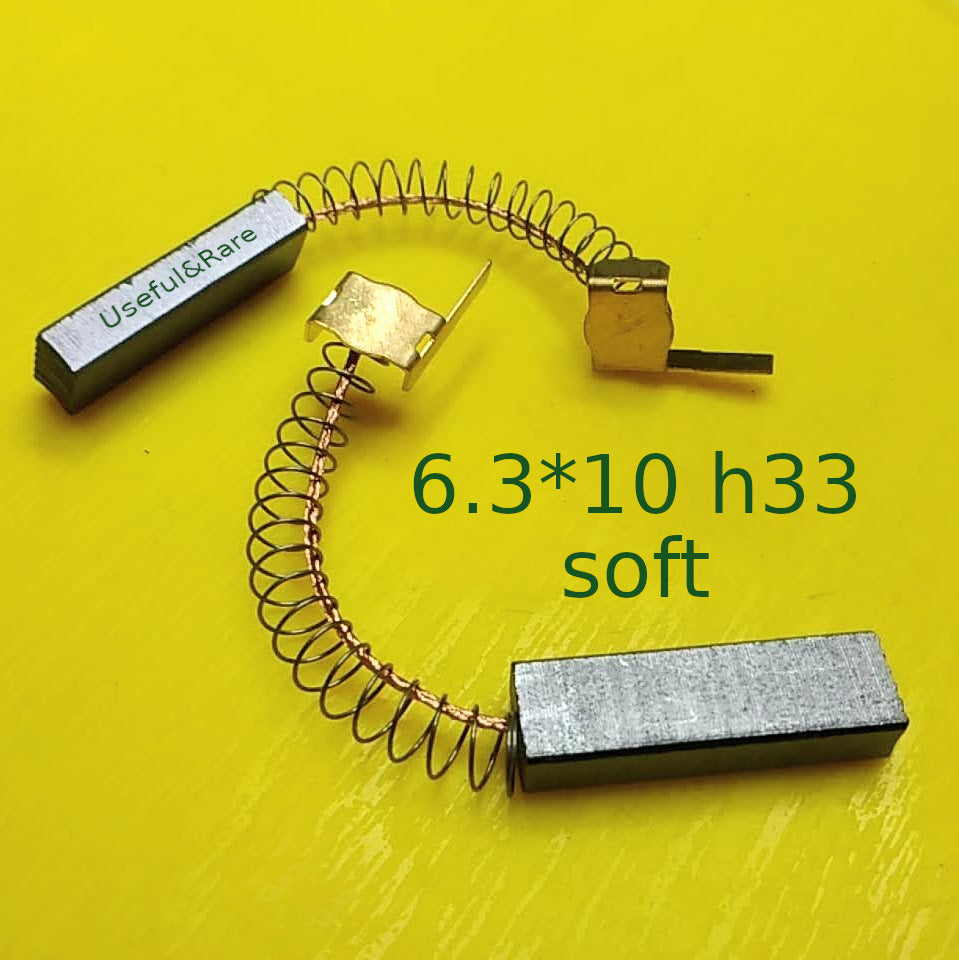

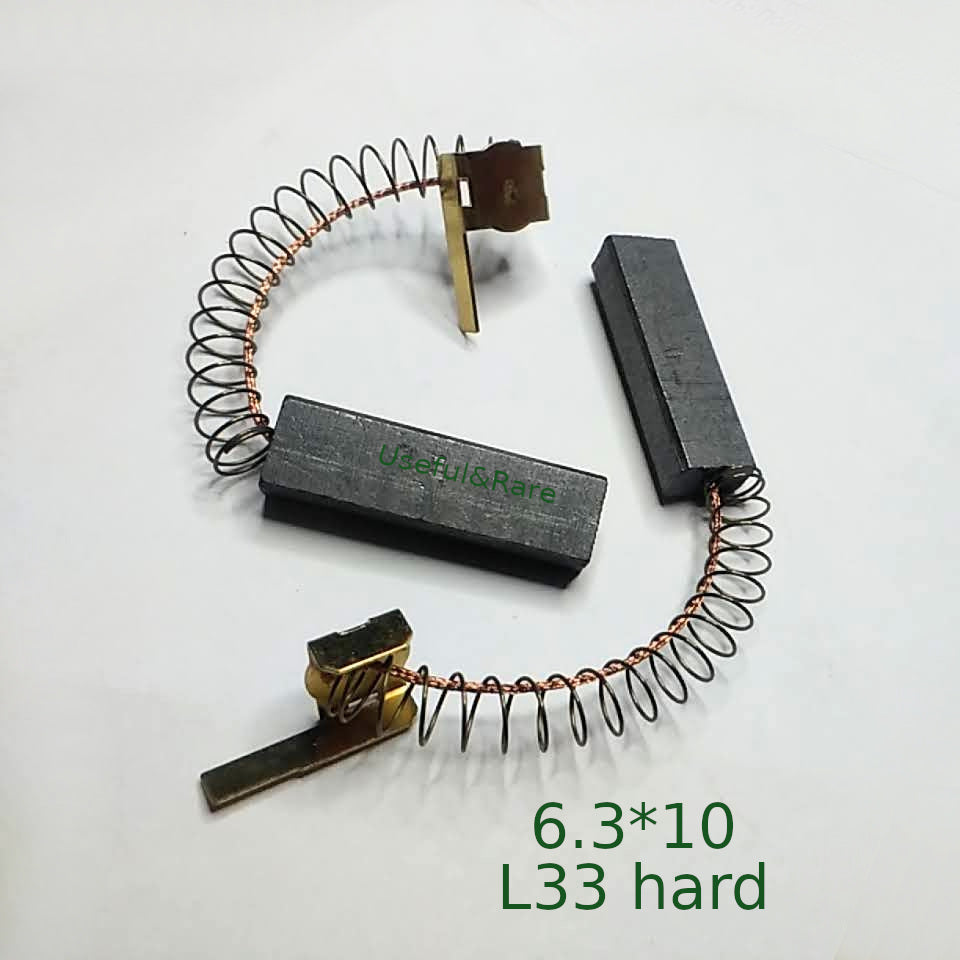

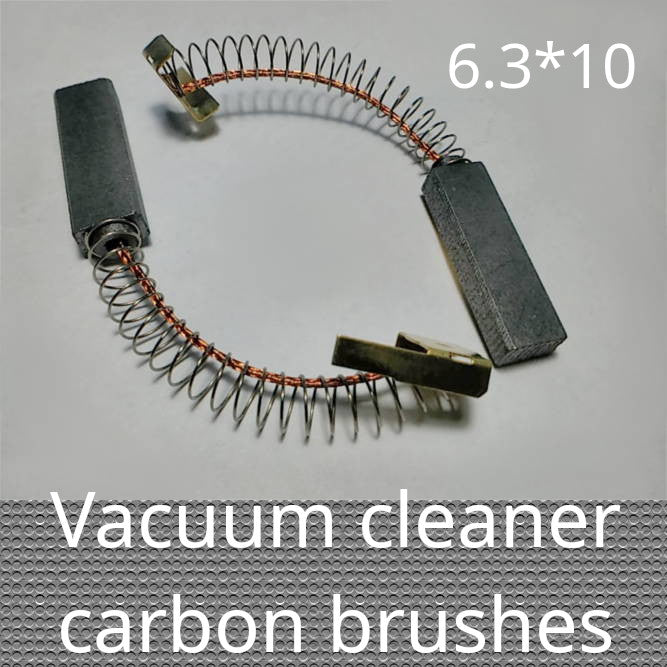

Current-collecting graphite brushes (hard/soft) with a cross-section of 6.3*10 mm with pins measuring 8.5*12 with a tail of 3*12 for the motor of the Samsung SC4023 (VCC4023S3B), Delfa 1400W, LG vacuum cleaner, electric meat grinder.
Total length of graphite 33 mm
Spring diameter, mm: 7.5
| Smaller side of the section, mm |
6.3 |
| Large side of the section, mm |
10 |
| Wire output |
with a spring |
| Contact |
not defined |
| Contact diameter/width d/h, mm |
12 |
| Number of slots in the body |
without slits |
| Wire length, mm |
53 |

Can be replaced with:
-
Example of a product name
Regular price €2.01 EURRegular priceDiscounted price ₴19.99 UAH
