Description

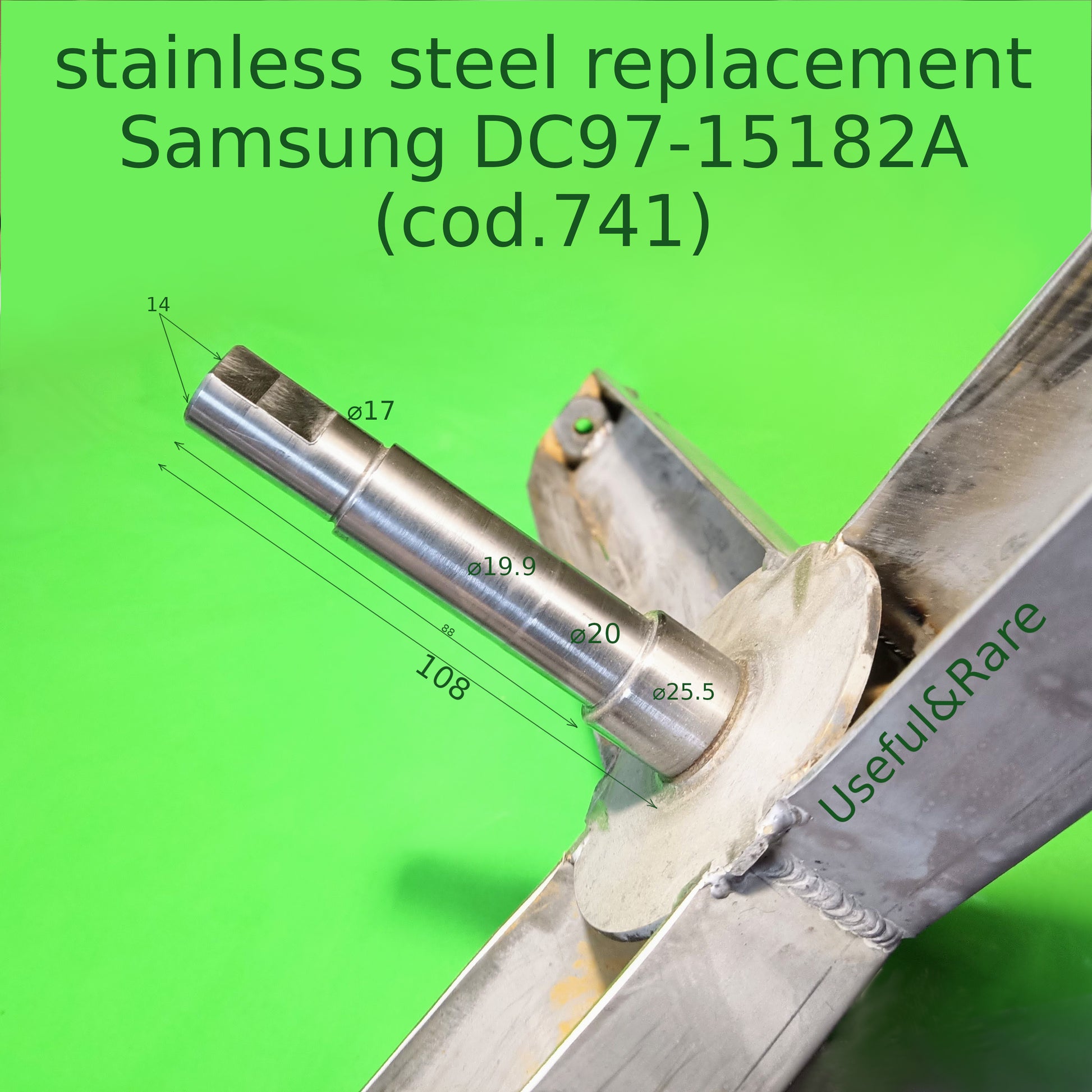

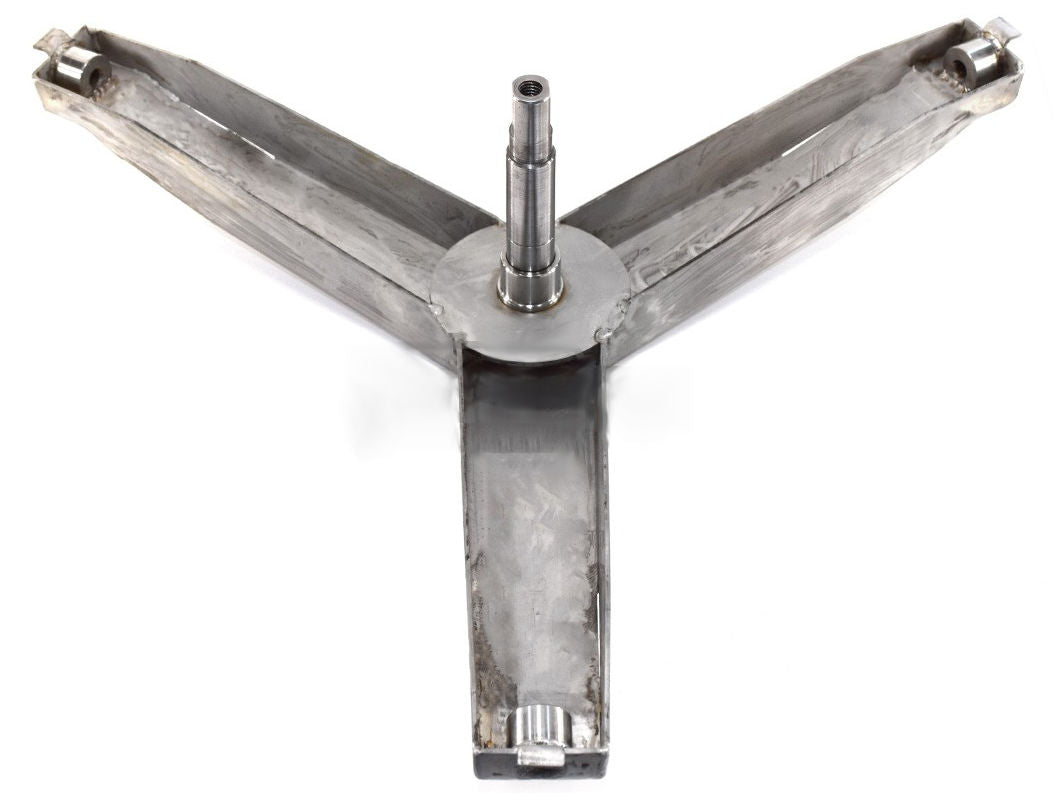

Support drum spider DC97-15182A for replace in Samsung washing machine (similar to cod.741), made of massive stainless steel.
| Parameters | |
| Distance between the center of the shaft and the attachment to the drum | 243 mm |
| Shaft height | 108 mm |
| Mount type | bolt M8 |
| Distance from sleeve to outer bearing | 57 mm |
| Distance from the seat of the outer bearing to the end of the shaft | 31 mm |
| Shaft diameter | 20 mm (6204) |
| Bushing diameter | 25.5mm |
| Outer bearing seat diameter | 17 mm (6203) |
| Pulley seat | 17x14 mm |
| Material | stainless steel |
| Sleeve height | 20 mm |
Compatibility list
Samsung A1010 WF-C600WRW/YLP WF-E509NZW WF-E590NMS WF-H600WCW WF-H600WCW/YLP WF-M509NZW WF-T500NHW WF0500NCE WF0500NYW WF0500NZW/YLD WF0500NZW/YLP WF05 00SYV WF0508NYW WF0508NZW WF0508NZW/YLD WF0508SYV/YLP WF0550WJW/XTL WF0550WJWU/XTL WF0590NW F0600NCW/XFA WF0600NCW/XSG WF0600NCW/YAH WF0600NCW/YKJ WF0600NCW/YLE WF0600NCY WF0600NHL WF0600NHM WF0600NHS WF0600WJV/YAH WF0608NHM WF1500NHW WF1590NFU/YLP WF1600NCW WF1600NCW-XSC WF1600NCWUTL WF1600NHW/XEO WF1600NHW/YLE WF1600W5S/XFA WF1600W5S/YMF WF1600W5V/XET WF1600W5 WF1600W5W/XEP WF1600W5W/XFA WF1600WCC/XEO WF1600WCS WF1600WCV WF1600WCW WF1600WCW/YLE WF1600WRW WF1650NCW/TL WF1650NCWUTL WF1650WCWUTL WF550B0BKWQU W F600B0BCWQ WF600B0BCWQ /TL WF600B0BCWQUTL WF600B0BHWQ/IM WF600B0BHWQ/TL WF600B0BKWQ/EO WF600B0BTWQ/IM WF600B0BTWQ/TL WF600U0BCWQ WF600U0BHWQ/TL WF600W0BCWQ WF601U0BCWQ/SC WF601W0BCWQ/SC WF602B0BCWQ WF602U0BCSD WF602U0BHSD/TL WF602W0BCSD WF602W0BCSD/MF WF602W0BCWQ WF60F1R0G0WDUA WF60F1R0H0WDLP WF60F1R1G0WDUA WF60F1R1H0WDLP WF 60F1R2G0W WF60F2H0N0W/TL WF650B0STWQ WF652B0BHSD/ TL WF6HF1R0W0W WF6HF1R0W0W/LD WF6MF1R0W0W WF6MF1R0W0W/UA WF6RF1R0N0W WF6RF1R0W0W WF8500BEA WF8500NFU WF8500NGC WF8500NGV WF8500NGV/YLP WF8500NGW WF850 0NGY/YLP WF8500NHS WF8500NHV WF8500NHW WF8500NMS/XTL WF8500NMSU/XTL WF8500NMV/YLP WF8500NMW WF8500NMW/YAH WF8500NMW/YAM WF8500NMW8 WF8500NMW9 WF8500SFV WF8 500SFW WF8500SGV WF8508NGW WF8508NHW WF8508NHW/ YLP WF8508NMW WF8508NMW8 WF8508NMW8/XTL WF8508NMW9 WF8508NMWU/XTL WF8550NGW/YL WF8550NHCU/XTL WF8550NHS WF8550NHSU WF8550NHW WF8550NHW/YFQ WF8550NHW1/XTL WF8550NHWU/XSV WF8550NHWU/XTL WF8550NMS/XTL WF8550NMSU/XTL WF8558NMS/XSG WF8558NMW/XSG WF8558NMW8/XTL WF8558NMWU/XTL WF8558QMW8 /XTL WF8558QMWU/XTL WF8590FEA WF8590FFV WF8590FFV/YLP WF8590FFW WF8590NFJ WF8590NFW WF8590NFW8 WF8590NFW9 WF8590NGC WF8590NGU/XSG WF8590NGV/YLP WF8590NGW WF8590NGW/XSG WF8590NGY WF8590NGY/YLD WF8590NHW WF8590NHW/XSE WF8590NHW/XSG WF8590NLM9DYLP WF8590NLW8DYLD WF8590NLW8DYLP WF8590NLW9DYLD WF8590NLW9DY LP WF8590NMC/YAS WF8590NMS WF8590NMW WF8590NMW/YAS WF8590NMW8 WF8590NMW9 WF8590NMW9/YLD WF8590NMW9D WF8590NMW9UYLP WF8590NMWU/YLO WF8590SFV WF8598NGW WF8598NHW WF8598NMW9 WF8598NMW9/YLD WF8598NMW9UYLP W F8600NMW/XZS WF9508NHW WF9590NFJ/YLP WF9590NRW WF9600N5W WF9600N5W/XET WF9600N5W/YMF WF9602N5W/YLE WW50J3063LW/YL WW60J3047LW WW60J3063LW WW60 J3063LWDLD WW60J3063LWDUA WW60J3067LW WW60J3067LWDUA WW60J3080LW/LE WW60J3083LW WW60J3083LW /GU WW60J3083LW1EO WW60J3083LW1LE WW60J3090JWDLP WW60J3097JW WW60J3097LWDLP WW60J30G03W WW60J30G0LW WW60J30G0PW WW60J4047JWDLP WW60J4060HS WW60 J4060HSDLD WW60J4060HSULD WW60J4060HW WW60J4060LW WW60J4063JW WW60J4063LW WW60J4063LWDLD WW60J4063LWDUA WW60J4090HS WW60J4090HWDLP WW60J4090NWDLP WW60M204K0S WW60M204KMA WW60M206KMA WW60M206LMA WW60M206LMW WW65J3033LW/SE WW65M206K0B WW65M206L0W WW65M206LMA WW6EJ30934S WW6MJ30632W
