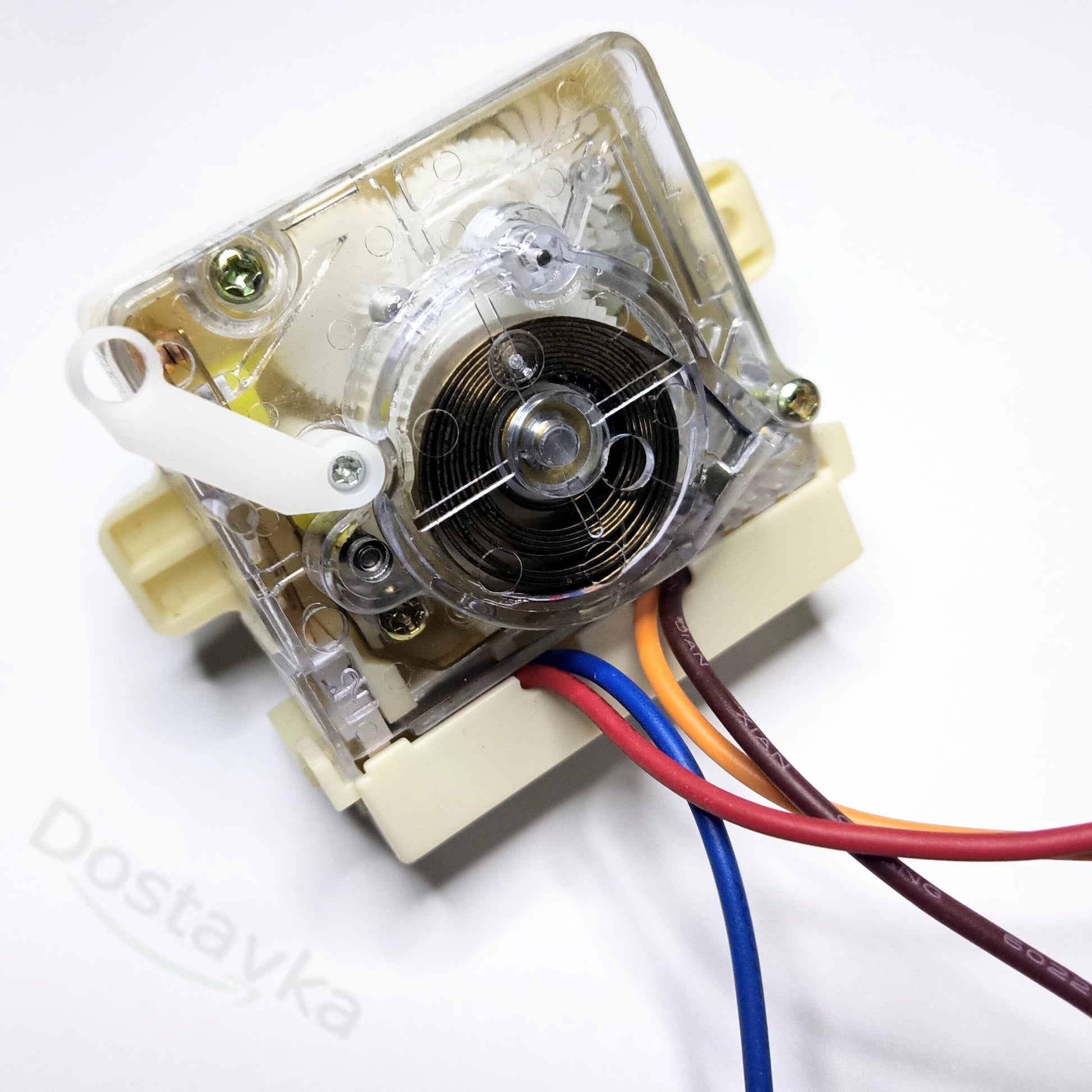

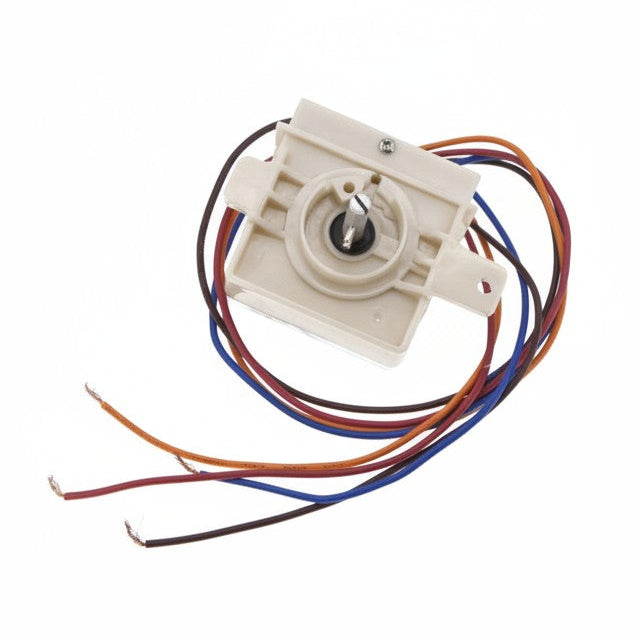

Time relay (wash timer) WX-15-028 for semi-automatic washing machines (4 wires)
The universal mechanical wash timer (time relay) WX-15-028 (WX-15-028/A54) is designed for adjusting and automatically counting the wash cycle time in semi-automatic washing machines. It is equipped with 4 connection wires and provides reversible rotation of the pulsator (right/left) during operation.
Technical Specifications
| Model / Marking: | WX-15-028 / WX-15-028/A54 |
| Part type: | Wash timer (programmer), single |
| Purpose: | For semi-automatic washing machines (with pulsator) |
| Number of contacts / wires: | 4 wires (4-pin) |
| Cycle time (max): | 15 minutes |
| Shaft height (knob pin): | ~30–35 mm |
| Shaft shape: | D-shaped (with a flat for the selector knob) |
| Mounting: | 2 holes (center-to-center distance ~68–72 mm) |
| Rated parameters: | 220–250V AC / 3A–5A |
Key Features
- Versatility: Suitable for most pulsator-type washing machines (semi-automatic) using a 4-wire connection.
- Reversible mode: The built-in contact mechanism provides automatic switching of the motor rotation direction for efficient washing.
- Easy installation: The color-coded or standard 4-wire connection scheme allows for quick replacement of a failed unit.
Compatibility
The WX-15-028 time relay is suitable for most popular brands of semi-automatic washing machines:
- Saturn
- Elenberg
- Daewoo
- Orion
- Deltton, Digital, Liberton, Nord, Vimar, Supra, Kupava and other Chinese and domestic equivalents.
