Description

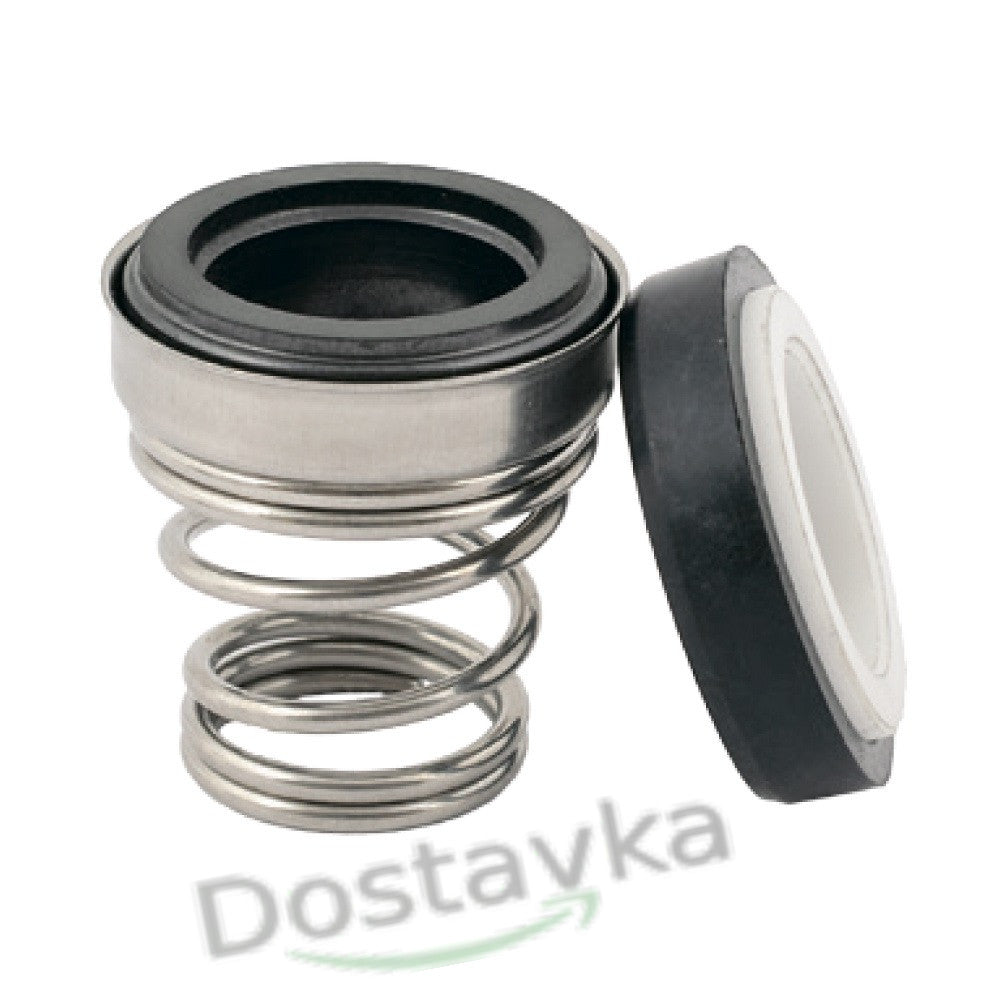

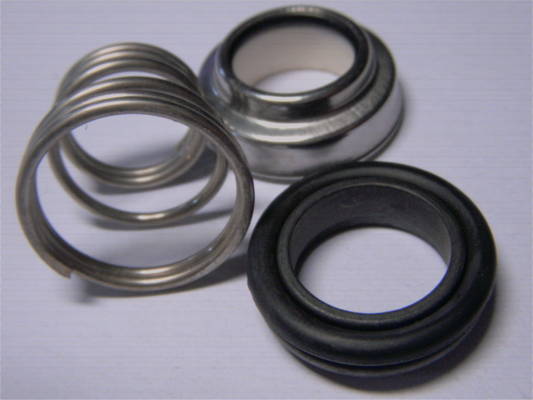

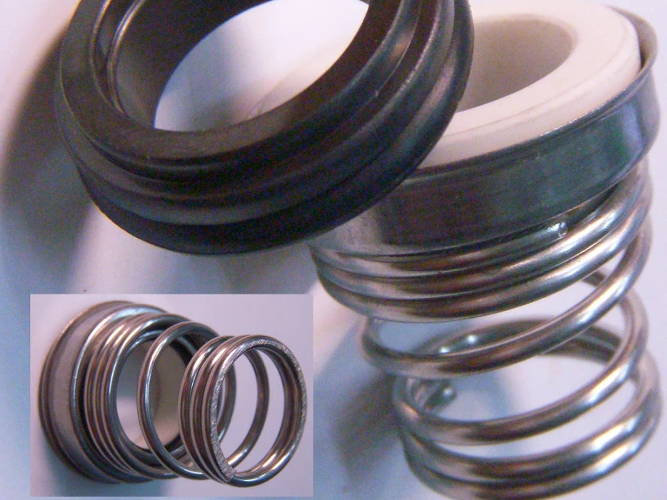

End mechanical seal 155-17 with a conical spring on a 17 mm shaft, for a pumping unit, a hydrophore, a car wash pump.
Analogue:

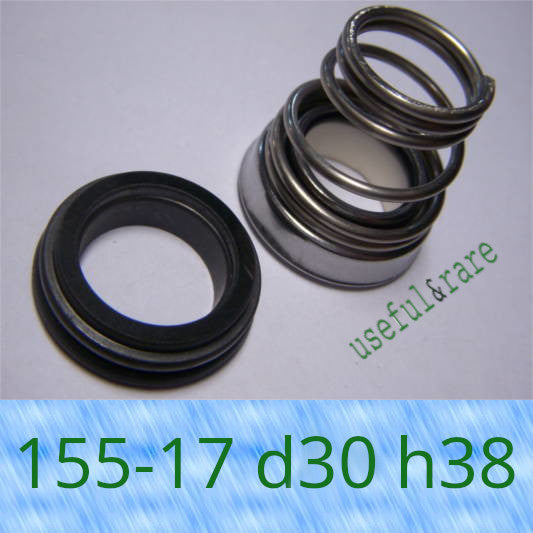

Spring mechanical seal 155-17-30D-6,5L (ceramics/graphite)
The diameter of the stationary ring is 30 mm. The total height with the ring is 38 mm.
- Type: ZY155-17
- Inner seal diameter: 17 mm
- Outer seal diameter: 29 mm
- Seal height (without fixed part): 30 mm
- Outer stationary ring diameter: 30 mm
- Stationary ring height: 7.5 mm
