LG washing machine stainless steel drum spider 4434ER1007D

LG washing machine stainless steel drum spider 4434ER1007D

SKU: 24194

Regular price €72,00 EUR
Regular price €59,00 EUR Sale price €72,00 EUR
Sale Sold out

Local tax may be applicable

View full details

Description

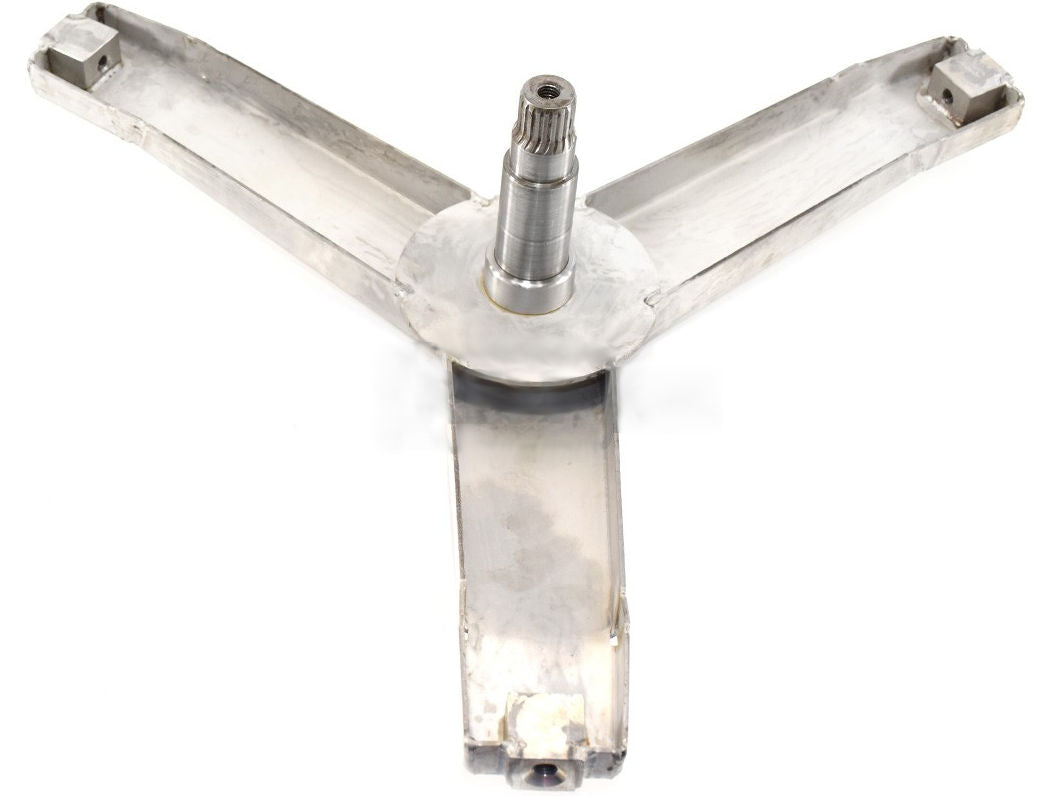

Support spider for the drum of the washing machine LG 4434ER1007D, WD 10160 NUP (analogue cod.727) made of massive stainless steel. Mounting type M10

Parameters

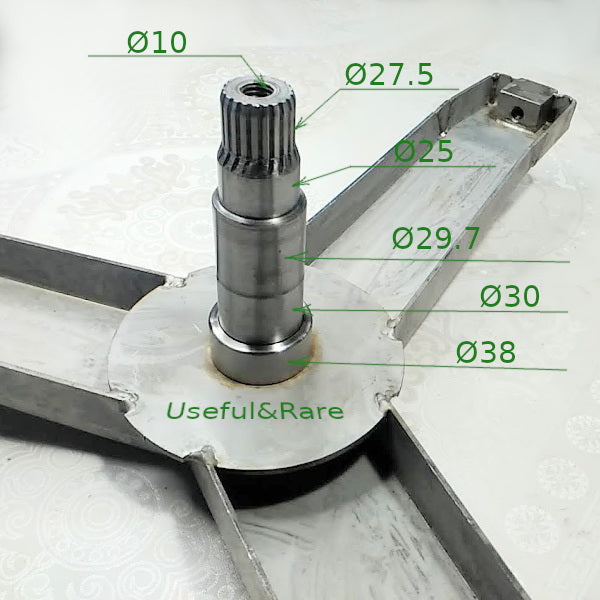

The distance between the center of the shaft and the attachment to the drum 243 mm
Shaft height 103 mm
Fastening type M10 bolt
The distance from the sleeve to the outer bearing 51 mm
The distance from the landing place of the outer bearing to the end of the shaft 35.5 mm
Shaft diameter 30 mm (6206)
The diameter of the sleeve for the stuffing box 37 mm
The landing diameter of the external bearing 25 mm (6205)
Place of landing of the pulley slot 21.2 mm
Material Stainless Steel
Bushing height 17 mm

Compatibility list

LG E1039SD.ABWPRUS LG E1069LD.ABWPRUS LG E1091LD.ABWPRUS LG E1092ND.ABWPRUS LG E1092ND5.ALSPRUS LG E1289ND.ABWPRUS LG E1289ND5.ALSPRUS LG E8069LD.ABWPRUS LG E8069SD.ABWPRUS LG F1003ND.ABWPEBY LG F1003ND.ABWPRUS LG F1012NDR.ABWPBWT LG F1012NDR.ABWPEBY LG F1020ND.ABWPBWT LG F1020ND.ABWPCIS LG F1020ND.ABWPEUA LG F1020ND1.ABWPCIS LG F1020ND1.ABWPRUS LG F1020ND5.ALSPCIS LG F1020ND5.ALSPEUA LG F1020NDR.ABWPBAL LG F1020NDR.ABWPBWT LG F1020NDR.ABWPEBY LG F1020NDR.ABWPRUS LG F1020NDR5.ABWPBWT LG F1020NDR5.ALSPRUS LG F1020NDR5.AMSPBAL LG F1020NDR5.AMSPBWT LG F1020NDR5.AMSPEBY LG F1021ND.ABWPBWT LG F1021ND.ABWPEUA LG F1021NDR.ABWPBAL LG F1021NDR.ABWPBWT LG F1021NDR.ABWPEBY LG F1021NDR5.AMSPBWT LG F1021SDR.ABWPBWT LG F1022ND.ABWPBWT LG F1022ND.ABWPCIS LG F1022ND.ABWPEUA LG F1022ND5.ALSPCIS LG F1022ND5.ALSPEUA LG F1022ND5.ALSPRUS LG F1022NDR.ABWPBAL LG F1022NDR.ABWPBWT LG F1022NDR.ABWPEBY LG F1022NDR5.ALSPEBY LG F1022SD.ABWPCIS LG F1022SD.ABWPEUA LG F1022SDR.ABWPBAL LG F1022SDR.ABWPBWT LG F1022SDR.ABWPEBY LG F1023ND.ABWPEUA LG F1023NDR.ABWPBAL LG F1023NDR.ABWPBWT LG F1023NDR.ABWPEBY LG F1023NDR5.AMSPBWT LG F1029NDR.ABWPRUS LG F1029SDR.ABWPRUS LG F1039ND.ABWPRUS LG F1039SD.ABWPRUS LG F1048ND.ABWPCIS LG F1048ND.ABWPEBY LG F1048ND.ABWPRUS LG F1048ND1.ABWPRUS LG F1056LD.ABWPBAL LG F1056LD.ABWPCIS LG F1056LD.ABWPEUA LG F1056MD.ABWPCIS LG F1056MD.ABWPEBY LG F1056MD.ABWPEUA LG F1056MD.ABWPRUS LG F1056MD1.ABWPCIS LG F1056MD1.ABWPEBY LG F1056MD5.ALSPCIS LG F1056ND.ABWPCIS LG F1056ND.ABWPEBY LG F1056ND.ABWPEUA LG F1056ND.ABWPRUS LG F1056ND1.ABWPRUS LG F1057LD.ABWPEUA LG F1057ND.ABWPCIS LG F1057ND.ABWPEBY LG F1057ND.ABWPEUA LG F1057ND.ABWPRUS LG F1058ND.ABWPRUS LG F1058ND5.ALSPRUS LG F1059ND.ABWPRUS LG F1068LD.ABWPCIS LG F1068LD.ABWPEBY LG F1068LD.ABWPRUS LG F1068LD1.ABWPEBY LG F1068LD1.ABWPRUS LG F1068LD9.ABWPRUS LG F1068SD.ABWPCIS LG F1068SD.ABWPEBY LG F1068SD.ABWPRUS LG F1068SD1.ABWPRUS LG F1073ND.ABWPRUS LG F1089ND.ABWPEBY LG F1089ND.ABWPRUS LG F1089ND5.ALSPCIS LG F1089ND5.ALSPEBY LG F1091LD.ABWPCIS LG F1091LD.ABWPEBY LG F1091LD.ABWPRUS LG F1091LD1.ABWPCIS LG F1091LD1.ABWPEBY LG F1092LD.ABWPCIS LG F1092MD.ABWPEBY LG F1092MD.ABWPRUS LG F1092MD1.ABWPEBY LG F1092MD1.ABWPRUS LG F1092ND.ABWPCIS LG F1092ND.ABWPRUS LG F1092ND5.ALSPRUS LG F1094ND.ABWPCIS LG F1094ND.ABWPRUS LG F1094ND5.ALSPRUS LG F1096ND3.ABWPCOM LG F1096SD3.ABWPCIS LG F10B8ND5.ALSPCOM LG F10B8NDW5.ALSPKIV LG F10B9SD.ABWPCIS LG F1203ND.ABWPCIS LG F1203ND.ABWPEBY LG F1203ND.ABWPRUS LG F1203ND5.ALSPEBY LG F1203ND5.ALSPRUS LG F1211NDP.ABWPBWT LG F1211NDR.ABWPBAL LG F1211NDR.ABWPBWT LG F1211NDR5.AMSPBWT LG F1212NDR.ABWPBWT LG F1212NDR.ABWPEBY LG F1220ND.ABWPBWT LG F1220ND.ABWPCIS LG F1220ND.ABWPEUA LG F1220ND5.ALSPCIS LG F1220ND5.ALSPEUA LG F1220NDR.ABWPBAL LG F1220NDR.ABWPBWT LG F1220NDR.ABWPEBY LG F1220NDR.ABWPRUS LG F1220NDR5.ALSPRUS LG F1220NDR5.AMSPBAL LG F1220NDR5.AMSPBWT LG F1220NDR5.AMSPEBY LG F1221ND.ABWPBWT LG F1221ND.ABWPEUA LG F1221NDR.ABWPBAL LG F1221NDR.ABWPBWT LG F1221NDR.ABWPEBY LG F1221NDR5.AMSPBWT LG F1221SDR.ABWPBWT LG F1222ND.ABWPBWT LG F1222ND.ABWPCIS LG F1222ND.ABWPEUA LG F1222ND5.ALSPCIS LG F1222ND5.ALSPEUA LG F1222ND5.ALSPRUS LG F1222NDR.ABWPBAL LG F1222NDR.ABWPBWT LG F1222NDR.ABWPEBY LG F1222NDR5.ALSPEBY LG F1222NDR5.AMSPBAL LG F1222NDR5.AMSPBWT LG F1222SD.ABWPCIS LG F1222SD.ABWPEUA LG F1222SDR.ABWPBWT LG F1222SDR.ABWPEBY LG F1222SDR.ABWPRUS LG F1223ND.ABWPEUA LG F1223NDR.ABWPBAL LG F1223NDR.ABWPBWT LG F1223NDR.ABWPEBY LG F1223NDR5.AMSPBWT LG F1229NDR.ABWPRUS LG F1239SD.ABWPRUS LG F1248ND.ABWPCIS LG F1248ND.ABWPEBY LG F1248ND.ABWPRUS LG F1256LD.ABWPBAL LG F1256LD1.ABWPEUA LG F1256MD.ABWPCIS LG F1256MD.ABWPEBY LG F1256MD.ABWPEUA LG F1256MD.ABWPRUS LG F1256MD1.ABWPCIS LG F1256MD1.ABWPEUA LG F1256ND.ABWPCIS LG F1256ND.ABWPEBY LG F1256ND.ABWPRUS LG F1256ND1.ABWPEUA LG F1256ND1.ABWPRUS LG F1257LD.ABWPEUA LG F1257ND.ABWPCIS LG F1257ND.ABWPEBY LG F1257ND.ABWPEUA LG F1257ND.ABWPRUS LG F1258ND.ABWPRUS LG F1259ND.ABWPRUS LG F1268LD.ABWPCIS LG F1268LD.ABWPEBY LG F1268LD1.ABWPCIS LG F1273ND.ABWPRUS LG F1280ND.ABWPCIS LG F1280ND.ABWPEBY LG F1280ND.ABWPRUS LG F1280ND5.ALSPEBY LG F1280ND5.ALSPRUS LG F1289ND.ABWPRUS LG F1289ND5.ALSPCIS LG F1289ND5.ALSPEBY LG F1289ND5.ALSPRUS LG F1291LD1.ABWPCIS LG F1292LD.ABWPCIS LG F1292MD.ABWPEBY LG F1292MD.ABWPRUS LG F1292MD1.ABWPRUS LG F1292ND.ABWPRUS LG F1292ND1.ABWPCIS LG F1292ND1.ABWPRUS LG F1294ND.ABWPRUS LG F1296SD3.ABWPCIS LG F8020ND1.ABWPCIS LG F8020ND1.ABWPRUS LG F8056LD.ABWPEUA LG F8056MD.ABWPCIS LG F8056MD.ABWPEBY LG F8056ND.ABWPEUA LG F8068LD.ABWPCIS LG F8068LD.ABWPEBY LG F8068LD.ABWPRUS LG F8068LD1.ABWPEBY LG F8068LD1.ABWPRUS LG F8068SD.ABWPEBY LG F8091LD.ABWPCIS LG F8091LD.ABWPEBY LG F8091LD.ABWPRUS LG F8091LD1.ABWPCIS LG F8091LD1.ABWPEBY LG F8092LD.ABWPCIS LG F8092MD.ABWPEBY LG F8092MD.ABWPRUS LG F8092ND.ABWPCIS LG F80B9LD.ABWPCOM LG M1089ND5.ALSPRUS LG M1091LD1.ABWPRUS LG M1092ND1.ABWPRUS LG M1222NDR.ABWPRUS LG WD-10130NP.* LG WD-10130NUP.* LG WD-10130NUP.AOWPEAK LG WD-10130NUP.AOWPTSK LG WD-10131NUP.* LG WD-10132NU.AOWPKZH LG WD-10132SU.AOWPKZH LG WD-10150NU.* LG WD-10150NU.AOWPBWT LG WD-10150NUP.AOWPBWT LG WD-10150NUP.AOWPEAK LG WD-10150NUP.AOWPTSK LG WD-10150SUP.* LG WD-10150SUP.AOWPEAK LG WD-10150SUP.AOWPTSK LG WD-10154NP.AOWPBWT LG WD-10154NP.AOWPEAK LG WD-10154NP.AOWPTSK LG WD-10154SP.* LG WD-10155NU.AMSPEAK LG WD-10155NUP.AMSPTSK LG WD-10156NU.AGLPEAK LG WD-10156NUP.AGLPTSK LG WD-10158NP.AMSPBWT LG WD-10158NP.AMSPEAK LG WD-10160NP.* LG WD-10160NUP.AOWPBWT LG WD-10160NUP.AOWPTSK LG WD-10160NUV.AOWPBWT LG WD-10160SP.* LG WD-10160SUP.* LG WD-10160SUV.AOWPBWT LG WD-10163N.AOWPBWT LG WD-10163N.AOWPEBY LG WD-10163S.AOWPBWT LG WD-10163S.AOWPEBY LG WD-10164N.AOWPBWT LG WD-10164NP.AOWPBWT LG WD-10164NP.AOWPEAK LG WD-10164NP.AOWPTSK LG WD-10164NV.AOWPBAL LG WD-10164NV.AOWPEBY LG WD-10164NV.AOWPEUA LG WD-10164S.AOWPBWT LG WD-10164S.AOWPEBY LG WD-10164SP.AOWPBWT LG WD-10164SV.AOWPEUA LG WD-10168NP.AMSPBWT LG WD-10180NUP.AOWPTSK LG WD-10180SP.AOWPBWT LG WD-10192N.* LG WD-10192N.AOWPBWT LG WD-10192N.AOWPEBY LG WD-10192N.AOWPUKR LG WD-10192S.* LG WD-10192S.AOWPBW LG WD-10192SV.AOWPBWT LG WD-10192T.* LG WD-10192T.AOWPBWT LG WD-10260NP.* LG WD-10264SP.* LG WD-10302NP.* LG WD-10302NUP.AOWPBWT LG WD-10302SP.* LG WD-10302SUP.* LG WD-10360SD.* LG WD-10360SDK.AOWPBWT LG WD-10390SDK.AOWPBWT LG WD-10400SDK.* LG WD-10480N.* LG WD-10480N.AOWPBAL LG WD-10480N.AOWPEBY LG WD-10480NP.* LG WD-10480NP.AOWPEAK LG WD-10480NV.AOWPBWT LG WD-10480NV.AOWPEAK LG WD-10480NV.AOWPEUA LG WD-10480S.AOWPBAL LG WD-10480S.AOWPBWT LG WD-10480S.AOWPEBY LG WD-10480SP.AOWPBWT LG WD-10480SP.AOWPEAK LG WD-10480SP.AOWPTSK LG WD-10480SV.AOWPEUA LG WD-10480T.AOWPBWT LG WD-10480TV.AOWPBAL LG WD-10481N.ABWPRUS LG WD-10481N.AOWPBAL LG WD-10481N.AOWPBWT LG WD-10481N.AOWPEBY LG WD-10481NP.* LG WD-10481NP.AOWPEAK LG WD-10481NV.AOWPEUA LG WD-10481S.AOWPBWT LG WD-10481S.AOWPEBY LG WD-10482N.ABWPRUS LG WD-10482N.AOWPBWT LG WD-10482N.AOWPEBY LG WD-10482S.AOWPBWT LG WD-10482S.AOWPEBY LG WD-10490N.AOWPBAL LG WD-10490N.AOWPEBY LG WD-10490NP.* LG WD-10490NP.AOWPEAK LG WD-10490NV.AOWPBWT LG WD-10490NV.AOWPEAK LG WD-10490NV.AOWPEUA LG WD-10490SV.AOWPEBY LG WD-10490TV.AOWPBAL LG WD-10491N.AOWPEBY LG WD-10491NV.AOWPBWT LG WD-10491S.AOWPBWT LG WD-10491SV.AOWPEBY LG WD-10492N.AOWPEBY LG WD-10492NV.AOWPBWT LG WD-10492S.AOWPBWT LG WD-10492SV.AOWPEBY LG WD-10499NE.AOWPBWT LG WD-10660N.ABWPEBY LG WD-10660N.ABWPRUS LG WD-10660T.ABWPRUS LG WD-10661N.ABWPEBY LG WD-12330CDP.AOWPBWT LG WD-12360SD.* LG WD-12360SDK.AOWPBWT LG WD-12360SDK.AOWPEAK LG WD-12390SDK.AOWPBWT LG WD-12400SDK.* LG WD-12400SDK.AOWPTSK LG WD-12480N.AOWPBAL LG WD-12480NP.* LG WD-12480NV.AOWPEBY LG WD-12480NV.AOWPEUA LG WD-12481N.AOWPBAL LG WD-12481N.AOWPBWT LG WD-12481NP.* LG WD-12481NP.AOWPEAK LG WD-12481NV.AOWPEBY LG WD-12481NV.AOWPEUA LG WD-80130NP.* LG WD-80130NUP.* LG WD-80130NUP.AOWPEAK LG WD-80130NUP.AOWPTSK LG WD-80131NUP.* LG WD-80132NU.AOWPKZH LG WD-80132SP.AOWPBWT LG WD-80132SU.AOWPKZH LG WD-80150NUP.* LG WD-80150NUP.AOWPEAK LG WD-80150NUV.AOWPBWT LG WD-80150SUP.* LG WD-80150SUP.AOWPBAL LG WD-80150SUP.AOWPEAK LG WD-80154NP.* LG WD-80154NP.AOWPEAK LG WD-80154NP.AOWPTSK LG WD-80154S.* LG WD-80154SP.AOWPTSK LG WD-80155NUP.* LG WD-80155NUP.AMSPEAK LG WD-80155NUP.AMSPTSK LG WD-80155SUP.* LG WD-80155SUP.AMSPEAK LG WD-80156NUP.AGLPEAK LG WD-80156SUP.AGLPEAK LG WD-80157NUP.ABUPEAK LG WD-80157SU.* LG WD-80157SU.ABUPEAK LG WD-80158NP.AMSPBWT LG WD-80158SP.* LG WD-80160NP.* LG WD-80160NUP.AOWPBWT LG WD-80160NUP.AOWPEAK LG WD-80160NUP.AOWPTSK LG WD-80160NUV.AOWPBWT LG WD-80160SP.* LG WD-80160SUP.* LG WD-80160SUP.AOWPEAK LG WD-80160SUV.AOWPBWT LG WD-80163N.AOWPBWT LG WD-80163N.AOWPEBY LG WD-80163S.AOWPBWT LG WD-80164N.AOWPBWT LG WD-80164NP.AOWPBWT LG WD-80164NP.AOWPEAK LG WD-80164NP.AOWPTSK LG WD-80164NV.AOWPBAL LG WD-80164NV.AOWPEBY LG WD-80164NV.AOWPEUA LG WD-80164S.AOWPBWT LG WD-80164S.AOWPEBY LG WD-80164SP.AOWPBWT LG WD-80164SV.AOWPEUA LG WD-80180NUP.AOWPTSK LG WD-80185NUP.AMSPTSK LG WD-80186NUP.AGLPTSK LG WD-80187NUP.ABUPTSK LG WD-80192N.* LG WD-80192N.AOWPEBY LG WD-80192N.AOWPUKR LG WD-80192NV.AOWPBWT LG WD-80192S.AOWPBWT LG WD-80192S.AOWPUKR LG WD-80250NP.* LG WD-80250NUP.* LG WD-80250SP.* LG WD-80250SUP.* LG WD-80250SUP.AOWPEAK LG WD-80260NP.* LG WD-80260NP.AOWPEAK LG WD-80260S.AOWPEAK LG WD-80264NP.* LG WD-80264NP.AOWPTSK LG WD-80264SP.* LG WD-80266N.AGLPEAK LG WD-80267N.ABUPEAK LG WD-80302NP.* LG WD-80302NUP.AOWPBWT LG WD-80302SP.* LG WD-80302SUP.* LG WD-80305NP.* LG WD-80305NUP.* LG WD-80305SP.* LG WD-80305SUP.* LG WD-80306NP.* LG WD-80306NUP.* LG WD-80306SP.* LG WD-80306SUP.* LG WD-80307NP.* LG WD-80307NUP.* LG WD-80307SP.* LG WD-80307SUP.* LG WD-80480N.AOWPBAL LG WD-80480N.AOWPEBY LG WD-80480NP.* LG WD-80480NV.AOWPEAK LG WD-80480NV.AOWPEUA LG WD-80480NV.AOWPEWT LG WD-80480S.AOWPBAL LG WD-80480S.AOWPBWT LG WD-80480S.AOWPEBY LG WD-80480SP.AOWPBWT LG WD-80480SP.AOWPTSK LG WD-80480SV.AOWPEUA LG WD-80482N.AOWPBWT LG WD-80490N.AOWPBAL LG WD-80490N.AOWPEBY LG WD-80490NP.* LG WD-80490NV.AOWPEAK LG WD-80490NV.AOWPEUA LG WD-80490SV.AOWPEBY LG WD-80490TV.AOWPBAL LG WD-80499NEV.AOWPBWT LG WD-80499NV.AOWPBWT LG WD-80660N.ABWPEBY LG WD-80660N.ABWPRUS LG WD-80660T.ABWPRUS
