Description

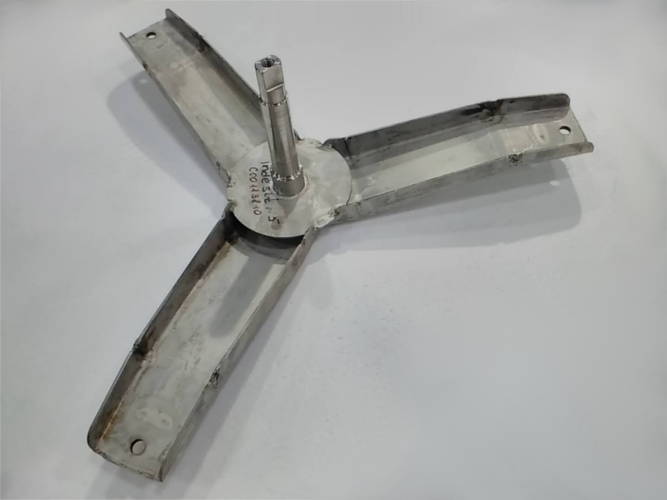

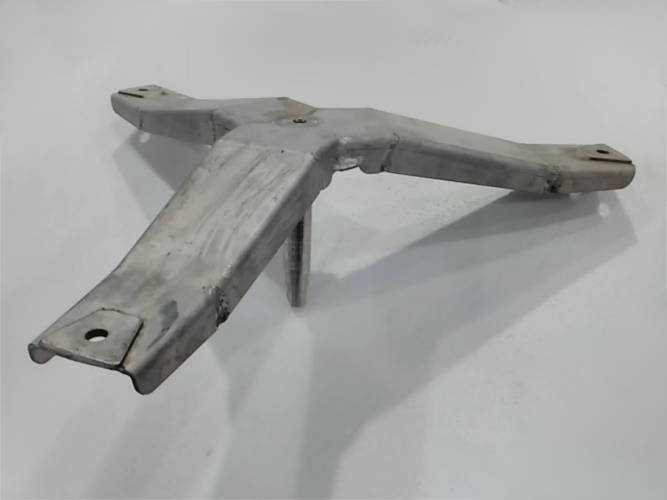

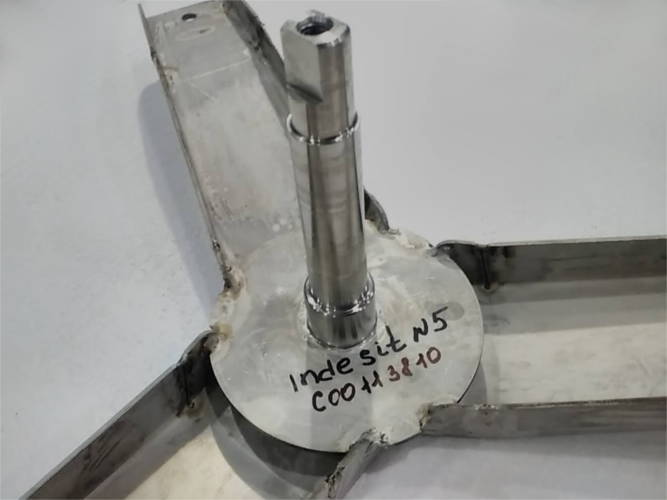

High-strength Drum support spider (C00113810) for replacement in Indesit washing machine, with short shaft. Made in the custom factory from solid stainless steel for the long-time durable work purpose.
Parameters:
| Distance between the center of the shaft and the attachment to the drum | 228 mm |
| Shaft height | 117 mm |
| Mount type | bolt М8 |
| Shaft diameter | 20 mm |
| Bushing diameter for oil seal | 25 mm |
| Outer bearing fit diameter | 17 mm |
| Pulley seat | 17x11 mm |
| Distance from sleeve to outer bearing | 70 mm |
| Distance from the seat of the outer bearing to the end of the shaft | 26 mm |
| Sleeve height | 20 mm |
Compatibility list:
Ariston Indesit AR103EU IWC6105FR/E AR103EU 46547640100 IWC6105FR/E 46628558700 AR103IT IWC6105FR/E 46628558800 AR103IT 46528420000 IWC6105FR/E 46628559000 AR103IT ARCADIA IWC6105TK AR103IT ARCADIA 46528420085 IWC6105TK 46619910000 AR103IT/E IWC6105UK AR103IT/E 46528428700 IWC6105UK 46690880000 AR63IT IWC6105UKE AR63IT 46527610000 IWC6105UKE 46690888700 AR6F105CN IWC6105UKE 46690888800 AR6F105CN 46544310100 IWC6105UKE 46690889000 AR6F105EX IWC61061ECOIT AR6F105EX 46544250100 IWC61061ECOIT 46816230000 AR6F105EX ARCADIA IWC6106ECOIT AR6F105EX ARCADIA 46544250185 IWC6106ECOIT 46763560000 AR6F105EX ARCADIA 46544250186 IWC71051CECOEU AR6F105EXM IWC71051CECOEU 46818890000 AR6F105EXM 85894920100 IWC71051CECOEU 85873680000 AR6F105GCC IWC71051CECOEU 85873680100 AR6F105GCC 85894930100 IWC71051CECOTK AR6L105EX IWC71051CECOTK 46817510000 AR6L105EX 46544180000 IWC71051CFR.T AR6L105EX ARCADIA IWC71051CFR.T 46833380000 AR6L105EX ARCADIA 46544180085 IWC71051EU AR6L105EX ARCADIA 46544180086 IWC71051EU 46817540000 AR6L105EX60HZ IWC71051ZA AR6L105EX60HZ 46544190100 IWC71051ZA 46835690000 AR6L105EX60HZ ARCAD IWC71052CECOIT AR6L105EX60HZ ARCAD 46544190185 IWC71052CECOIT 85873690000 AR6L105EX60HZ ARCAD 46544190200 IWC71052CECOTK AR6L105EXM IWC71052CECOTK 85874580000 AR6L105EXM 85894910100 IWC7105EU AR6L109EX IWC7105EU 3PHASE AR6L109EX 46544210100 IWC7105EU 3PHASE 46763830000 AR6L85EX IWC7105EU COLLECTOR AR6L85EX 46544130100 IWC7105EU COLLECTOR 46763830100 AR6L95EX IWC7105FR AR6L95EX 46544160100 IWC7105FR 46763850000 AR6L95EX ARCADIA IWC71082CECOIT AR6L95EX ARCADIA 46544160185 IWC71082CECOIT 46788390100 AR6L95EX ARCADIA 46544160186 IWCN61051X9EU AR83IT IWCN61051X9EU 85895870100 AR83IT 46528320000 IWD5105ECOEE ARF105AUS IWD5105ECOEE 46695830000 ARF105AUS 46544340000 IWD5105ECOEE/E ARF105AUS ARCADIA IWD5105ECOEE/E 46695838700 ARF105AUS ARCADIA 46544340085 IWD5105ECOEE/E 46695838800 ARF105AUS ARCADIA 46544340086 IWD5105ECOEE/E 46695839000 ARF105AUSM IWD5105EU ARF105AUSM 85894950100 IWD5105EU 46628850000 ARL1051TK2EV IWD5105EU 46628850100 ARL1051TK2EV 46748460000 IWD5105FR ARL1051TK2EV 46748469000 IWD5105FR 46628860000 ARL105EU IWD5105PL ARL105EU 46544640100 IWD5105PL 46697510000 ARL105EU ARCADIA IWD6103WE ARL105EU ARCADIA 46544640285 IWD6103WE 46694680000 ARL105TK IWD6103WE/E ARL105TK 46544800100 IWD6103WE/E 46694688700 ARL105TK ARCADIA IWD6103WE/E 46694688800 ARL105TK ARCADIA 46544800185 IWD6105BAG ARX68IT IWD6105BAG 46628920000 ARX68IT 46527580000 IWD6105BIND ARXD109EU IWD6105BIND 46628930000 ARXD109EU 46528580000 IWD6105BIND 46628930100 ARXD109EU ARCADIA IWD6105EU 3PH ARXD109EU ARCADIA 46528580085 IWD6105EU 3PH 46763670100 ARXD109EU/E IWD6105EU COLL. ARXD109EU/E 46528588700 IWD6105EU COLL. 46763670200 ARXF105CSI IWD6105FR ARXF105CSI 46543240000 IWD6105FR 46628910000 ARXF105CSI 46543240100 IWD61081FR ARXF105EU IWD61081FR 46746420000 ARXF105EU 46545230100 IWD61081FR/E ARXF109EU/HA IWD61081FR/E 46746428700 ARXF109EU/HA 46544630100 IWD61082CECOIT.T ARXF109EUHA ARCADIA IWD61082CECOIT.T 46817550000 ARXF109EUHA ARCADIA 46544630185 IWE5105EU ARXL105CIS IWE5105EU 46620170000 ARXL105CIS 46526190000 IWE5105EU 46620170100 ARXL105CIS 46526190100 IWE61051CECOEX ARXL105CSI ARCADIA IWE61051CECOEX 85877200000 ARXL105CSI ARCADIA 46526190185 IWE61051EX60HZ ARXL105EU IWE61051EX60HZ 85875020000 ARXL105EU 46538270000 IWE6105EU ARXL105EU ARCADIA IWE6105EU 46763660000 ARXL105EU ARCADIA 46538270085 IWE6105EU 46763660100 ARXL105EU/E IWE6105EU 46763660200 ARXL105EU/E 46538278700 IWE7105BEU ARXL105EU/E 46538278800 IWE7105BEU 46763889000 ARXL105GR LISA100FR ARXL105GR 46734490000 LISA100FR 46299990000 ARXL105TK LISA10FR ARXL105TK 46544910100 LISA10FR 46344520200 ARXL105TK ARCADIA LISA10FR 46344520900 ARXL105TK ARCADIA 46544910185 W101EX ARXL108IT W101EX 46295410000 ARXL108IT 46507610000 W101EX 46295410030 ARXL108IT 46507610100 W101EX 46295410046 ARXL108IT ARCADIA W103UK ARXL108IT ARCADIA 46507610185 W103UK 46233340100 ARXL1091TK2EV W103UK 46233340101 ARXL1091TK2EV 46748490000 W103UK 46233340130 ARXL109CSI WI100TK ARXL109CSI 46543200000 WI100TK 46304880000 ARXL109CSI 46543200100 WI100TK 46304880900 ARXL85CSI WI101UK ARXL85CSI 46543170000 WI101UK 46301960000 ARXL85CSI 46543170100 WI101UK 46301960900 ARXL85EU WI102AUS ARXL85EU 46537990000 WI102AUS 46305230000 ARXL88IT WI102AUS 46305230900 ARXL88IT 46528450000 WI10FR ARXL88IT 46528450100 WI10FR 46300000000 ARXL95EU WI10FR 46300000900 ARXL95EU 46544600000 WI62AUS ARXXL105IT.T WI62AUS 46305030000 ARXXL105IT.T 46831360000 WI62AUS 46305030900 ARXXL105IT.T 46831360001 WI80TK AV102CSI WI80TK 46304860000 AV102CSI 46319700000 WI80TK 46304860900 AV102CSI 46319700050 WI82AUS AV102CSI 46319700900 WI82AUS 46305130000 AV102TK WI82AUS 46305130900 AV102TK 46284810100 WI82EX AV102TK 46284810150 WI82EX 46303530000 AV102TK 46284810900 WI82EX 46303530900 AV10IT WI8FR AV10IT 46359750000 WI8FR 46301390000 AV10IT 46359750900 WI8FR 46301390900 AV62EU WIA100TK AV62EU 46339680000 WIA100TK 46344440900 AV62EU 46339680900 WIA100TK 46344440905 AV6EU WIA101UK AV6EU 46339680000 WIA101UK 46344830000 AV6EU 46339680900 WIA101UK 46344830100 AV82TK WIA101UK 46344830105 AV82TK 46284790100 WIA110EU AV82TK 46284790150 WIA110EU 46365930000 AV82TK 46284790250 WIA110EU 46365930002 AV82TK 46284790900 WIA110EU 46365930005 AV8IT WIA111UK AV8IT 46359740000 WIA111UK 46427400000 AV8IT 46359740900 WIA602EU AVD10TK WIA602EU 46460370000 AVD10TK 46284850100 WIA60TK AVD10TK 46284850900 WIA60TK 46344380900 AVD8TK WIA60TK 46344380905 AVD8TK 46284840100 WIA61IT AVF109CNTE WIA61IT 46462130000 AVF109CNTE 46425600000 WIA64IT AVF109EUTE WIA64IT 46373350000 AVF109EUTE 46425570000 WIA80TK AVF10TK WIA80TK 46344400900 AVF10TK 46339790000 WIA80TK 46344400905 AVF10TK 46339790900 WIA82EX AVF88EUTE WIA82EX 46344390000 AVF88EUTE 46359130000 WIA82EX 46344390005 AVF8TK WIA9FR AVF8TK 46342140000 WIA9FR 46377320000 AVF8TK 46342140900 WIB101UK AVL1000CSI WIB101UK 46464660100 AVL1000CSI 46410400100 WIB101UK 46464660203 AVL100PR WIE107EX AVL100PR 46303570000 WIE107EX 46305480000 AVL100PR 46303570050 WIE107EX 46305480900 AVL100PR 46303570900 WIE107IT AVL105AG WIE107IT 46302220000 AVL105AG 46379140000 WIE107PLTE AVL105EU WIE107PLTE 46366850000 AVL105EU 46366840000 WIE10FR AVL105SK WIE10FR 46352490000 AVL105SK 46302060000 WIE10FR 46352490900 AVL105SK 46302060050 WIE87EX AVL105SK 46302060900 WIE87EX 46305450000 AVL105TK WIE87EX 46305450900 AVL105TK 46284820100 WIE87IT AVL105TK 46284820150 WIE87IT 46302230000 AVL105TK 46284820900 WIE87IT 46302230900 AVL108TKTE WIE87PLTE AVL108TKTE 46425530000 WIE87PLTE 46366860000 AVL109EUTE WIL1000OT AVL109EUTE 46425510000 WIL1000OT 46344710100 AVL109ITTE WIL1000OT 46344710300 AVL109ITTE 46425450000 WIL101TK AVL62EO WIL101TK 46304920000 AVL62EO 46332440000 WIL101TK 46304920900 AVL62EO 46332440900 WIL101TK/Y AVL62EXTE WIL101TK/Y 46304920075 AVL62EXTE 46353980000 WIL102AUS AVL62KW WIL102AUS 46345090000 AVL62KW 46336850000 WIL102R AVL62KW 46336850900 WIL102R 46410470100 AVL64EU WIL102R/Y AVL64EU 46306110000 WIL102R/Y 46410470075 AVL64EU 46306110050 WIL103IT AVL65PT WIL103IT 46336130000 AVL65PT 46306120000 WIL103IT 46336130900 AVL65PT 46306120050 WIL103IT/Y AVL65PT 46306120900 WIL103IT/Y 46336130075 AVL66PIT WIL103UK AVL66PIT 46300920000 WIL103UK 46349070000 AVL66PIT 46300920050 WIL103UK 46349070900 AVL66PITTE WIL103UK 46349071500 AVL66PITTE 46359180000 WIL105DE AVL68ITTE WIL105DE 46304550000 AVL68ITTE 46289400900 WIL105DE 46304550900 AVL6EIT WIL105DE/Y AVL6EIT 46300550000 WIL105DE/Y 46304550075 AVL6EIT 46300550050 WIL105EU AVL6EIT 46300550900 WIL105EU 46302330000 AVL800CIS WIL105EU 46302330900 AVL800CIS 46410390100 WIL105EU/Y AVL82AG WIL105EU/Y 46302330075 AVL82AG 46379160000 WIL105EX AVL82EUTE WIL105EX 46303560000 AVL82EUTE 46353990000 WIL105EXTE AVL84EUTE WIL105EXTE 46359200000 AVL84EUTE 46359190000 WIL105EXTE 46359200100 AVL85TK WIL105EXTE/Y AVL85TK 46284800100 WIL105EXTE/Y 46359200075 AVL85TK 46284800150 WIL105PLTE AVL85TK 46284800900 WIL105PLTE 46365940000 AVL86PIT WIL105PLTE/Y AVL86PIT 46300930000 WIL105PLTE/Y 46365940075 AVL86PIT 46300930050 WIL106FR AVL86PIT 46300930900 WIL106FR 46495060000 AVL88ITTE WIL106FR/Y AVL88ITTE 46354000000 WIL106FR/Y 46495060075 AVL89EUTE WIL106IT AVL89EUTE 46425550000 WIL106IT 46301440000 AVL89ITTE WIL106IT 46301440900 AVL89ITTE 46432600000 WIL106IT/Y AVL8EIT WIL106IT/Y 46301440075 AVL8EIT 46300560000 WIL106SPEU AVL95AG WIL106SPEU 46368870000 AVL95AG 46379150000 WIL106SPEU/Y AVL95AUS WIL106SPEU/Y 46368870075 AVL95AUS 46303610000 WIL10FR AVL95AUS 46303610050 WIL10FR 46352480200 AVL95AUS 46303610900 WIL10FR 46352480900 AVL95EXTE WIL10FR/Y AVL95EXTE 46365360000 WIL10FR/Y 46352480075 ECO6F105IT WIL113UK ECO6F105IT 46692220000 WIL113UK 46300180000 ECO6F109IT WIL62AUS ECO6F109IT 46763590000 WIL62AUS 46345070000 ECO6F109IT/E WIL62EX ECO6F109IT/E 46763598700 WIL62EX 46305260000 ECO6L1051IT WIL62EX 46305260900 ECO6L1051IT 46817730000 WIL62EX/Y ECO6L1051IT 46817730001 WIL62EX/Y 46305260075 ECO6L105IT WIL63PL/Y ECO6L105IT 46692240000 WIL63PL/Y 46367670075 ECO6L105IT/E WIL63PLTE ECO6L105IT/E 46692248700 WIL63PLTE 46367670000 ECO6L105IT/E 46692248800 WIL66IT ECO6L105IT/E 46692249000 WIL66IT 46301460000 ECO6L105IT/E 46692249001 WIL66IT 46301460900 ECO7L1051EU.T WIL66IT/Y ECO7L1051EU.T 46817520100 WIL66IT/Y 46301460075 ECO7L1051EU.T 46817520101 WIL81TK HV6L105PUK WIL81TK 46304900000 HV6L105PUK 46694460100 WIL81TK 46304900900 HV6L105PUKE WIL82AUS HV6L105PUKE 46694468700 WIL82AUS 46345080000 HVL200UK WIL82R HVL200UK 46465310100 WIL82R 46410460100 EWD71051WEU WIL82R/Y EWD71051WEU 85893610100 WIL82R/Y 46410460075 EWD71051WEU 85893610200 WIL85EU EWD71052SLEUM WIL85EU 46302340000 EWD71052SLEUM 85893310200 WIL85EU 46302340900 EWE71053WTK WIL85EU/Y EWE71053WTK 85952770000 WIL85EU/Y 46302340075 IWB5105EU WIL85EX IWB5105EU 46619510000 WIL85EX 46303540000 IWB5105EU 46619510100 WIL85EXTE IWB5105EU 46619510200 WIL85EXTE 46353970000 IWB5105EU 46619510300 WIL85EXTE 46353970100 IWB5105EU/E WIL85EXTE/Y IWB5105EU/E 46619518700 WIL85EXTE/Y 46353970075 IWB5105EU/E 46619518800 WIL85PLTE IWB5105EU/E 46619518900 WIL85PLTE 46359210000 IWB5105EU/E 46619519000 WIL85PLTE/Y IWB5105TK WIL85PLTE/Y 46359210075 IWB5105TK 46619520000 WIL86IT IWB5105TK 46619520100 WIL86IT 46301450000 IWB6095BAG WIL86IT 46301450900 IWB6095BAG 46628460000 WIL86IT/Y IWB6103EU WIL86IT/Y 46301450075 IWB6103EU 46619570000 WIL8FR IWB6103EU 46619570100 WIL8FR 46344500000 IWB6103EU 46619570200 WIL8FR 46344500900 IWB6103EU/E WIL95EX60HZ IWB6103EU/E 46619578700 WIL95EX60HZ 46549830000 IWB6103EU/E 46619578800 WIL95EX60HZ/Y IWB6103EU/E 46619579000 WIL95EX60HZ/Y 46549830075 IWB61051CECOEU WIL95KW IWB61051CECOEU 85874560000 WIL95KW 46305350000 IWB61051ZA WIL95KW 46305350900 IWB61051ZA 46835680000 WIL95KW/Y IWB71052CECOTK WIL95KW/Y 46305350075 IWB71052CECOTK 85890710100 WILM64IT IWC5105BIT WILM64IT 46302350000 IWC5105BIT 46619720000 WILM64IT 46302350900 IWC5105BIT/E WIN100TK IWC5105BIT/E 46619728700 WIN100TK 46464800100 IWC5105BIT/E 46619728800 WIN100TK 46464800103 IWC5105BIT/E 46619729000 WIN100TK 46464800185 IWC5105ECOEE WIN101EU IWC5105ECOEE 46695800000 WIN101EU 46464840200 IWC5105EU WIN101EU 46464840203 IWC5105EU 46619710000 WIN101EU 46464840285 IWC5105EU 46619710200 WIN102EX IWC5105EU/E WIN102EX 46464820200 IWC5105EU/E 46619718700 WIN102EX 46464820203 IWC5105EU/E 46619718800 WIN102EX 46464820285 IWC5105EU/E 46619719000 WIN80TK IWC5105FR WIN80TK 46464790100 IWC5105FR 46628470000 WIN80TK 46464790103 IWC5105FR 46628470100 WIN80TK 46464790185 IWC6093EU WIN82EX IWC6093EU 46619790000 WIN82EX 46464780100 IWC6093EU 46619790100 WIN82EX 46464780103 IWC6093EU/E WIN82EX 46464780185 IWC6093EU/E 46619798700 WIN82EX 46464780200 IWC6093EU/E 46619798800 WIN9FR IWC6093EU/E 46619799000 WIN9FR 46549220000 IWC6095EX60HZ WIN9FR 46549220003 IWC6095EX60HZ 46628500000 WIXE107EX IWC6095EX60HZ 46628500100 WIXE107EX 46535570000 IWC6103EU WIXL104EUTEV IWC6103EU 46619810000 WIXL104EUTEV 46537920000 IWC6103EU 46619810100 WIXL104EUTEV/Y IWC6103EU/E WIXL104EUTEV/Y 46537920075 IWC6103EU/E 46619818700 WIXL105DE IWC6103EU/E 46619818800 WIXL105DE 46504070000 IWC6103EU/E 46619819000 WIXL105DE/Y IWC61050TK WIXL105DE/Y 46504070075 IWC61050TK 46748230000 WIXL105ES IWC61050TK 46748230100 WIXL105ES 46471960000 IWC61050TK/E WIXL105ES 46471960100 IWC61050TK/E 46748239000 WIXL105ES 46471960200 IWC61051CECOEU WIXL105EU IWC61051CECOEU 85874570000 WIXL105EU 46471960000 IWC61051CECOEX WIXL105EU 46471960100 IWC61051CECOEX 85897720000 WIXL105EU 46471960200 IWC61051ECOEU WIXL105EU/Y IWC61051ECOEU 46788470000 WIXL105EU/Y 46471960075 IWC61051ECOEU 46788470100 WIXL106EU IWC61051EU.M WIXL106EU 46537930000 IWC61051EU.M 85893330100 WIXL106EUTEV/Y IWC61051FR WIXL106EUTEV/Y 46537930075 IWC61051FR 46838720000 WIXL106FR IWC61052CECOIT WIXL106FR 46543000000 IWC61052CECOIT 85875270000 WIXL106FRTEV/Y IWC61052CECOTK WIXL106FRTEV/Y 46543000075 IWC61052CECOTK 85875310000 WIXL106ITTEV IWC61052CFR WIXL106ITTEV 46517110075 IWC61052CFR 85875280000 WIXL106ITTEV.N/Y IWC6105DE WIXL106ITTEV.N/Y 46646010075 IWC6105DE 46619830000 WIXL85ES IWC6105DE/E WIXL85ES 46471950000 IWC6105DE/E 46619838700 WIXL85ES 46471950100 IWC6105DE/E 46619838800 WIXL85EU IWC6105DE/E 46619839000 WIXL85EU 46471950000 IWC6105EU WIXL85EU 46471950100 IWC6105EU 46763650000 WIXL85EU/Y IWC6105EU/E WIXL85EU/Y 46471950075 IWC6105EU/E 46763650100 WIXL85EU/YÂ IWC6105EU/E 46763650200 WIXL86ITTE IWC6105FR WIXL86ITTE 46517120000 IWC6105FR 46628550000 WIXL95AG IWC6105FR 46628550100 WIXL95AG 46546440100
